| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

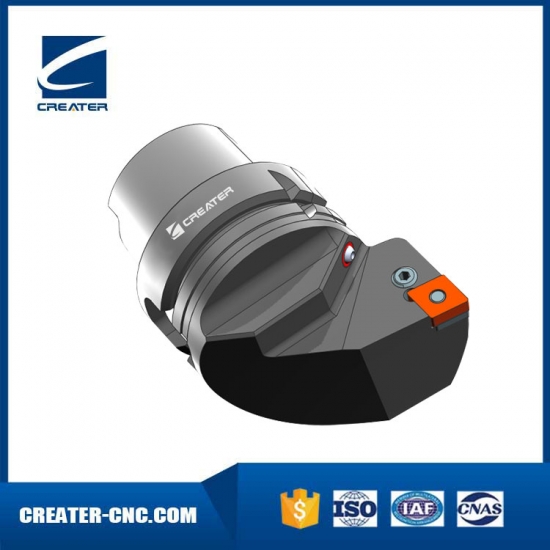

HSK63T and HSK100T Holder for CN Type Negative Inserts For general external turning operations Permits use of the obtuse edge of a standard CNMG insert Pin Lock clamping Suitable for CN..1204, CN.1606 and CN.1906 inserts Insert clamping system: P Insert shape code: C Tool cutting edge angle code: L Insert clearance angle: N Direction of cutting: Both R and L are available Tool cutting edge angle: 95 deg.

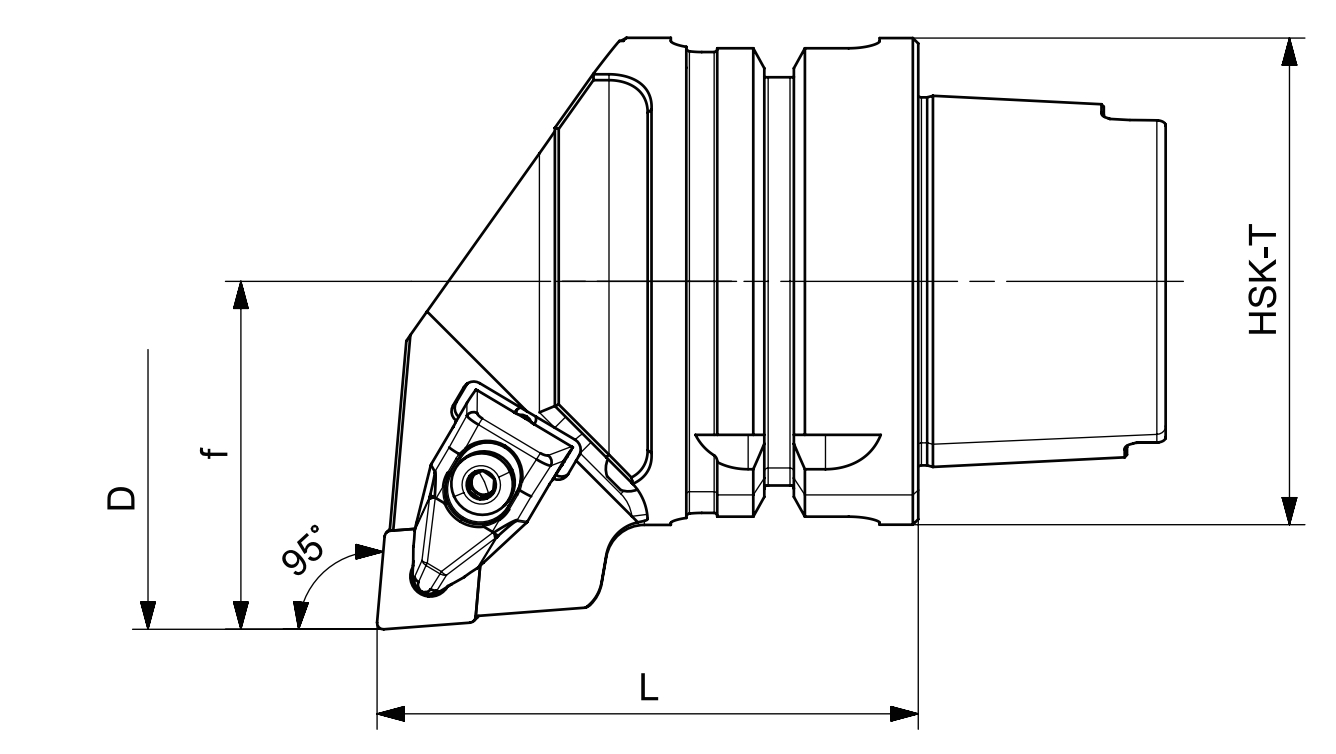

Size
f
D
L
Direction
Inserts N.
HSK63T-PCLNR-45070-12
45
80
70
R
CN..1204..
HSK63T-PCLNL-45070-12
45
80
70
L
CN..1204..
HSK63T-PCLNR-45070-16
45
80
70
R
CN..1606..
HSK63T-PCLNL-45070-16
45
80
70
L
CN..1606..
HSK100T-PCLNR-63100-12
63
120
100
R
CN..1204..
HSK100T-PCLNL-63100-12
63
120
100
L
CN..1204..
HSK100T-PCLNR-63100-16
63
120
100
R
CN..1606..
HSK100T-PCLNL-63100-16
63
120
100
L
CN..1606..
HSK100T-PCLNR-63100-19
63
120
100
R
CN..1906..
HSK100T-PCLNL-63100-19
63
120
100
L
CN..1906..
-
