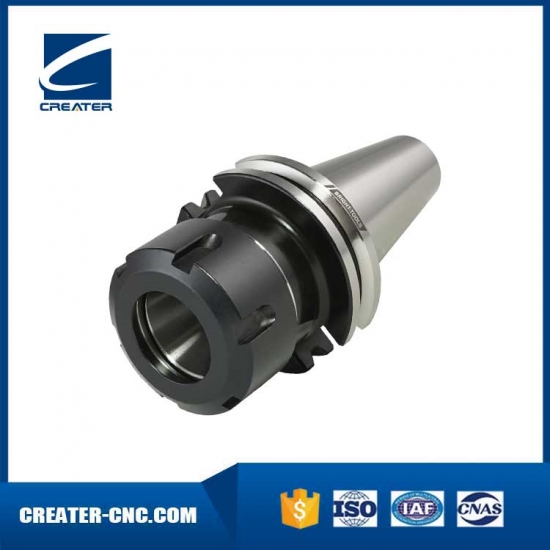

ANSI B 5.50 CAT Collet Chucks for Collets DIN 6499
Taper: ANSI B 5.50 CAT
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Bright or Blackening
Collet Chuck Application: for mounting straight shank tools in ER Collet.

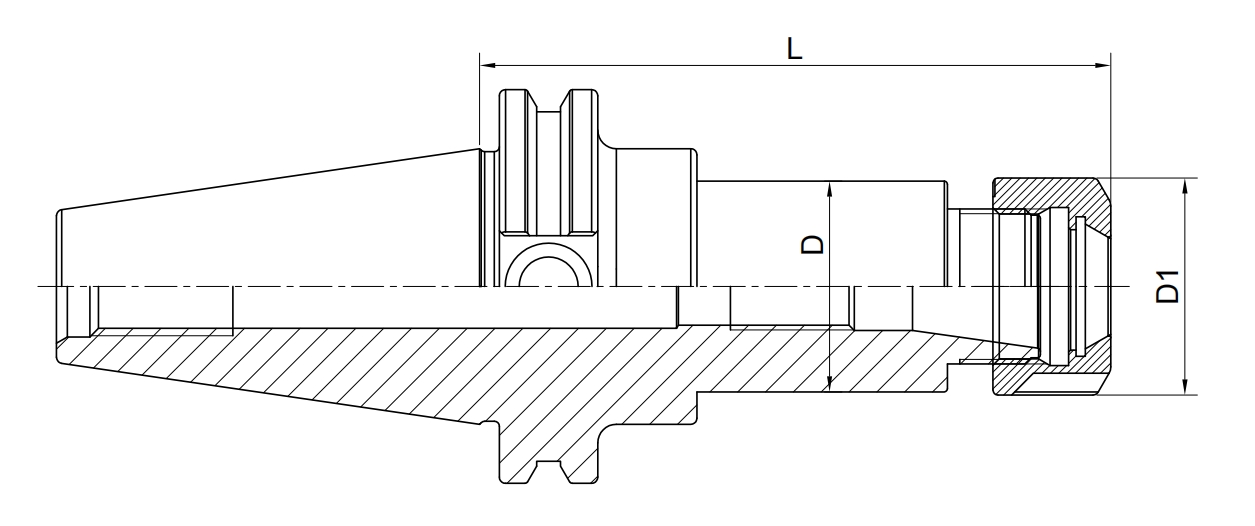

Size
D
D1
L
Capacity
CAT40-ER16UM-2.5"
44.45
32
2.5"
1-10
CAT40-ER20UM-2.5"
34
35
2.5"
1-13
CAT40-ER25-2.5"
42
42
2.5"
2-16
CAT40-ER32-2.5"
44.45
50
2.5"
2-20
CAT40-ER40-3"
50
63
3"
3-26
CAT40-ER16UM-4"
28
32
4"
1-10
CAT40-ER20UM-4"
34
35
4"
1-13
CAT40-ER25-4"
42
42
4"
2-16
CAT40-ER32-4"
44.45
50
4"
2-20
CAT40-ER40-4"
50
63
4"
3-26
CAT40-ER16UM-6"
28
32
6''
1-10
CAT40-ER20UM-6"
34
35
6''
1-13
CAT40-ER25-6"
42
42
6''
2-16
CAT40-ER32-6"
44.45
50
6''
2-20
CAT40-ER40-6"
50
63
6''
3-26
CAT40-ER16UM-8"
28
32
8''
1-10
CAT40-ER20UM-8"
34
35
8''
1-13
CAT40-ER25-8"
42
42
8''
2-16
CAT40-ER32-8"
44.45
50
8''
2-20
CAT40-ER40-8"
50
63
8''
3-26
CAT50-ER16UM-2"
28
32
2"
1-10
CAT50-ER20UM-2"
34
35
2"
1-13
CAT50-ER25-2"
32
42
2"
2-16
CAT50-ER32-2"
44.45
50
2"
2-20
CAT50-ER16UM-4"
28
32
4"
1-10
CAT50-ER20UM-4"
34
35
4"
1-13
CAT50-ER25-4"
42
42
4"
2-16
CAT50-ER32-4"
50
50
4"
2-20
CAT50-ER40-4"
63
63
4"
3-26
CAT50-ER50-4"
78
78
4"
6-34
CAT50-ER16UM-6"
28
32
6''
1-10
CAT50-ER20UM-6"
34
35
6''
1-13
CAT50-ER25-6"
42
42
6''
2-16
CAT50-ER32-6"
50
50
6''
2-20
CAT50-ER40-6"
63
63
6''
3-26
CAT50-ER16UM-8"
28
32
8"
1-10
CAT50-ER20UM-8"
34
35
8"
1-13
CAT50-ER25-8"
42
42
8"
2-16
CAT50-ER32-8"
50
50
8"
2-20
CAT50-ER40-8"
63
63
8"
3-26
| Size | D | D1 | L | Capacity |
| CAT40-ER11A-2.5" | 19 | 19 | 2.5" | 1-7 |
| CAT40-ER16A-2.5 | 44.45 | 28 | 2.5" | 1-10 |
| CAT40-ER20A-2.5 | 34 | 34 | 2.5" | 1-13 |
| CAT40-ER11A-4" | 19 | 19 | 4" | 1-7 |
| CAT40-ER16A-4" | 28 | 28 | 4" | 1-10 |
| CAT40-ER20A-4" | 34 | 34 | 4" | 1-13 |
| CAT40-ER11A-6" | 19 | 19 | 6'' | 1-7 |
| CAT40-ER16A-6" | 28 | 28 | 6'' | 1-10 |
| CAT40-ER20A-6" | 34 | 34 | 6'' | 1-13 |
| CAT40-ER16A-8" | 28 | 28 | 8'' | 1-10 |
| CAT40-ER20A-8" | 34 | 34 | 8'' | 1-13 |
| CAT50-ER16A-2" | 28 | 28 | 2" | 1-10 |
| CAT50-ER20A-2" | 34 | 34 | 2" | 1-13 |
| CAT50-ER16A-4" | 28 | 28 | 4" | 1-10 |
| CAT50-ER20A-4" | 34 | 34 | 4" | 1-13 |
| CAT50-ER16A-6" | 28 | 28 | 6'' | 1-10 |
| CAT50-ER20A-6" | 34 | 34 | 6'' | 1-13 |
| CAT50-ER16A-8" | 28 | 28 | 8'' | 1-10 |
| CAT50-ER20A-8" | 34 | 34 | 8'' | 1-13 |
