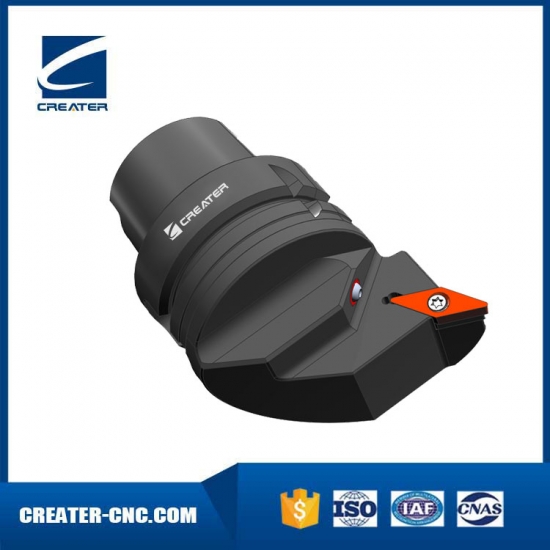

HSK-T Turning Tool SVPBR | SVPBL | SVPCR | SVPCL 117.5°/35°
contact now
| Brand: | creater |
|---|
- Specification

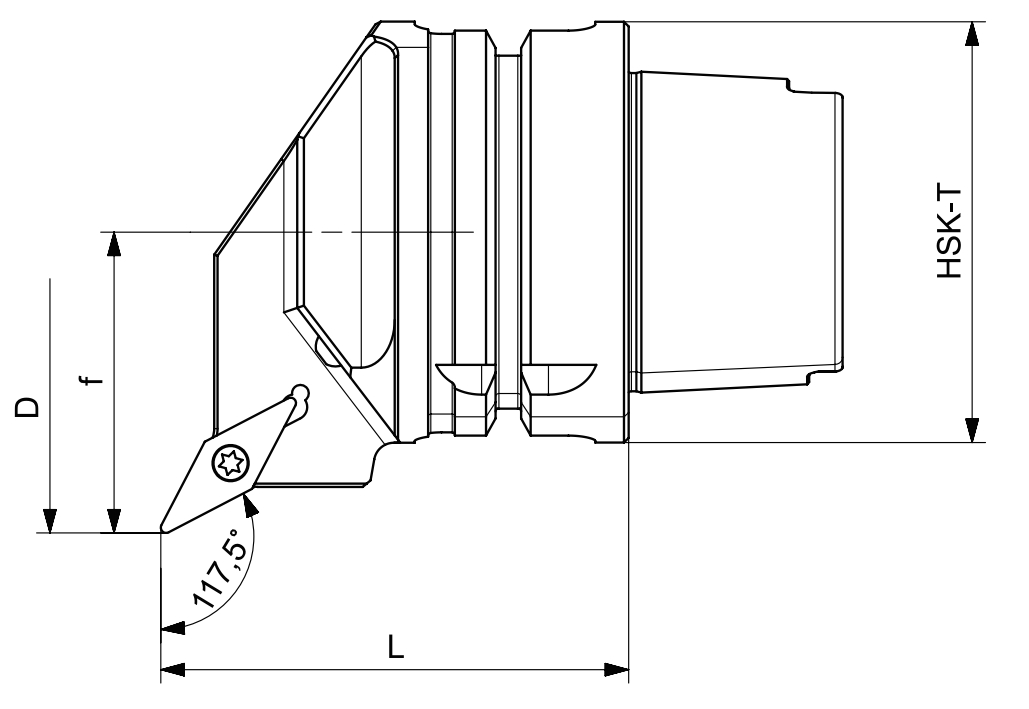

- Simple figure
- Precautions
HSK63T and HSK100T Internal Turning Tool Holder for VB and VC Style Positive Inserts
Screw clamping
Suitable for VB..1604 and VC..1604 inserts
Insert clamping system: S
Insert shape code: V
Tool cutting edge angle code: P
Insert clearance angle: B or C
Direction of cutting code: R and L
Tool cutting edge angle: 117.5 deg.
|
Size |
f |
D |
L |
Direction |
Inserts N. |
|
HSK63T-SVPBR-45070-16 |
45 |
80 |
70 |
R |
VB..1604.. |
|
HSK63T-SVPBL-45070-16 |
45 |
80 |
70 |
L |
VB..1604.. |
|
HSK63T-SVPCR-45070-16 |
45 |
80 |
70 |
R |
VC..1604.. |
|
HSK63T-SVPCL-45070-16 |
45 |
80 |
70 |
L |
VC..1604.. |
|
HSK100T-SVPBR-63100-16 |
63 |
120 |
100 |
R |
VB..1604.. |
|
HSK100T-SVPBL-63100-16 |
63 |
120 |
100 |
L |
VB..1604.. |
|
HSK100T-SVPCR-63100-16 |
63 |
120 |
100 |
R |
VC..1604.. |
|
HSK100T-SVPCL-63100-16 |
63 |
120 |
100 |
L |
VC..1604.. |
