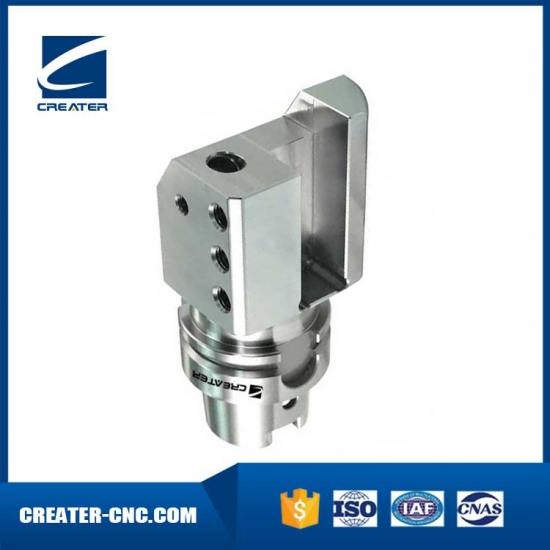

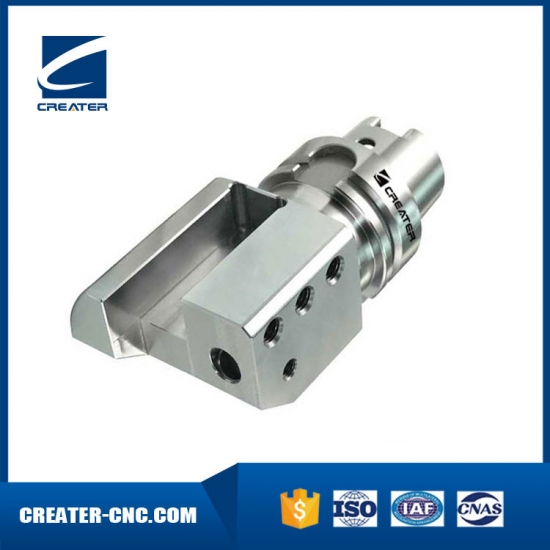

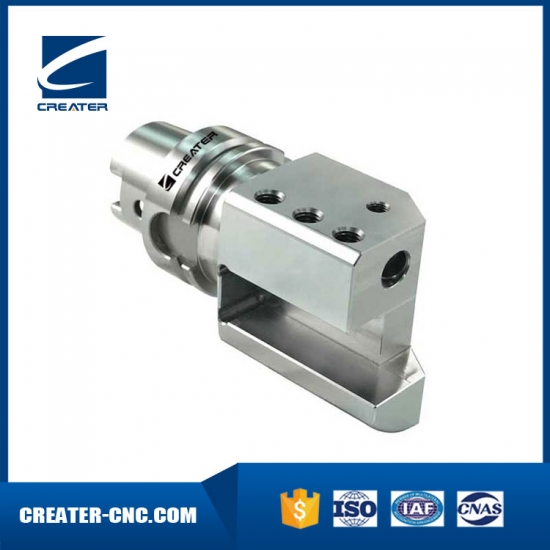

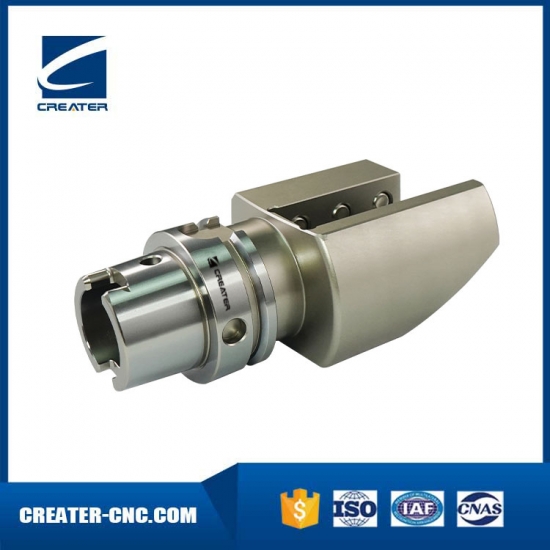

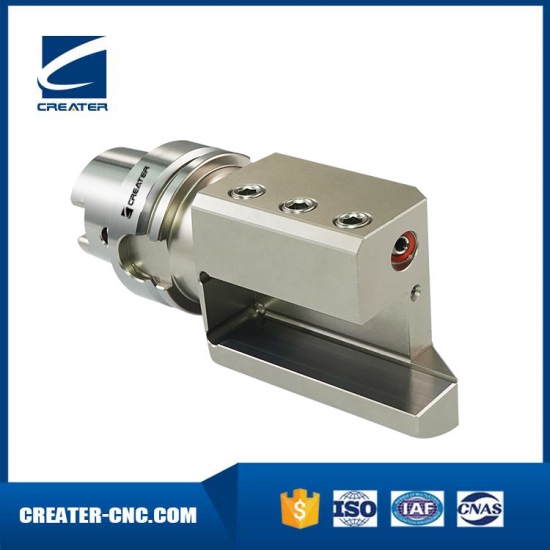

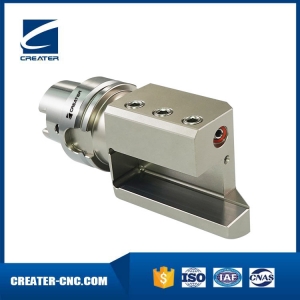

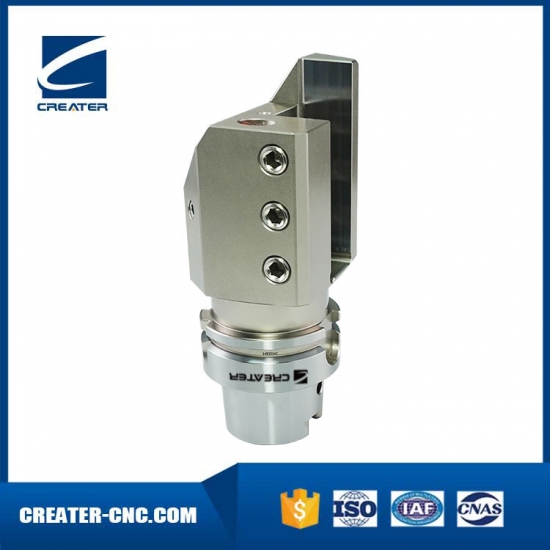

SBV axial square shank tool holders are for external turning and cutting off operation, with adjustable cooling nozzle with internal thread. Due to its support design, it is with high rigidity. SBV is for one direction axial tool holders, for double directions, please choose SBVD line.

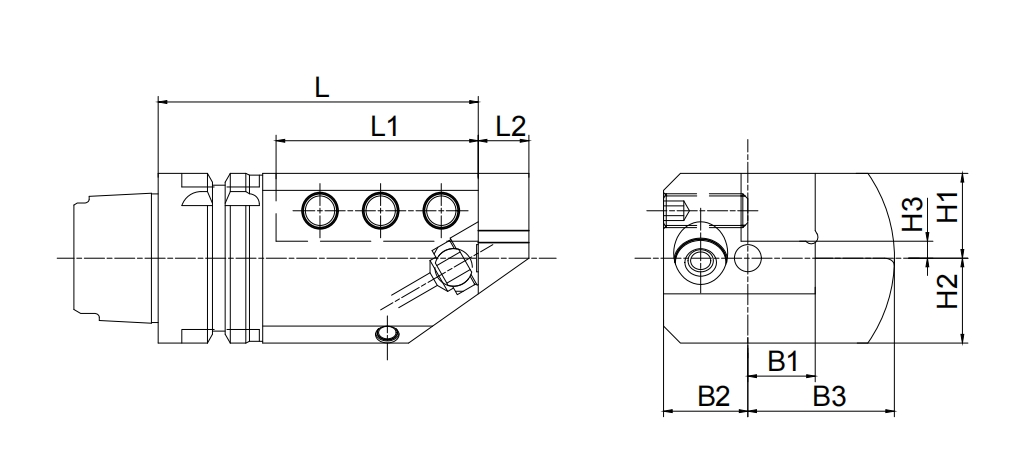

Size
L
L1
L2
B1
B2
B3
H1
H2
H3
G
Kg
HSK50T-SBV2020R-105
105
60
15
20
25
43.5
25
25
5
M10
2
HSK50T-SBV2020L-105
105
60
15
20
25
43.5
25
25
5
M10
2
HSK63T-SBV2020R-105
105
60
15
20
32
43.5
33
32
13
M10
2.7
HSK63T-SBV2020L-105
105
60
15
20
32
43.5
33
32
13
M10
2.7
HSK63T-SBV2525R-115
115
70
20
25
32
45
30
30
5
M12
2.9
HSK63T-SBV2525L-115
115
70
20
25
32
45
30
30
5
M12
2.9
HSK100T-SBV2525R-160
160
110
20
25
37
59
48
43
23
M12
8.5
HSK100T-SBV2525L-160
160
110
20
25
37
59
48
43
23
M12
8.5
HSK100T-SBV3232R-160
160
110
20
32
40
68.5
45
43
15
M14
9
HSK100T-SBV3232L-160
160
110
20
32
40
68.5
45
43
15
M14
9
-
