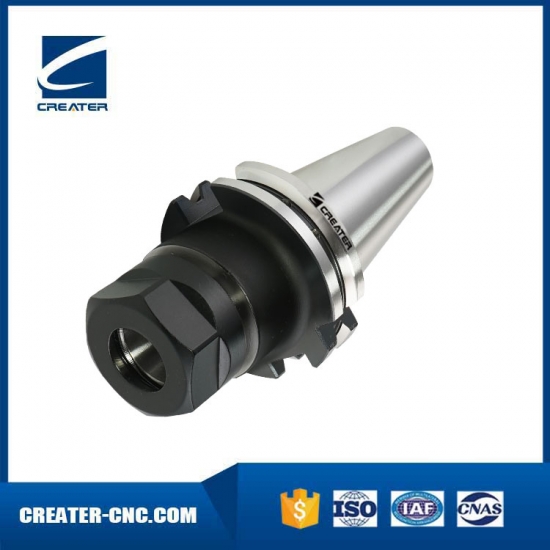

DIN69871 SK Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening, Sandblasting, Plating |
| Lead Time: | 20 days |
- Specification
- Simple figure
- Precautions

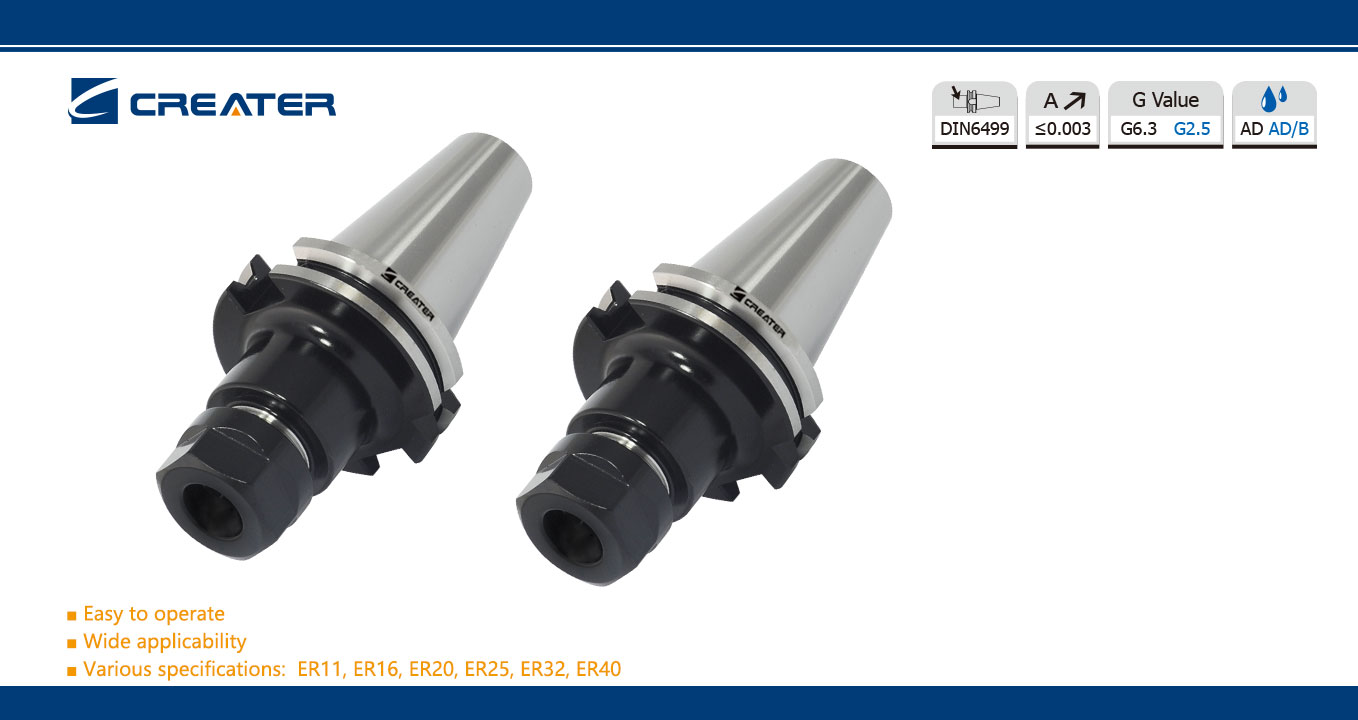

DIN69871 SK Collet Chuck DIN6499B
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening

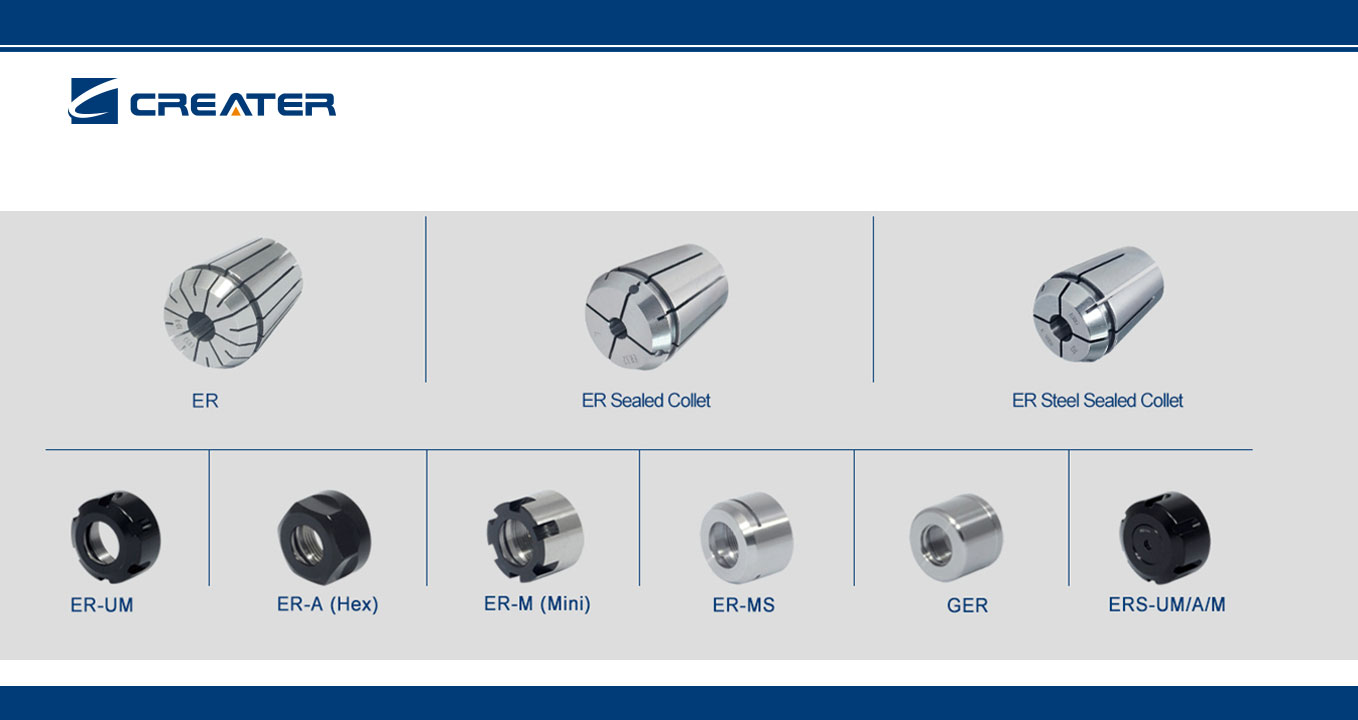

Application: DIN69871 Collet Chuck is for clamping tools with straight shank in collets DIN6499.

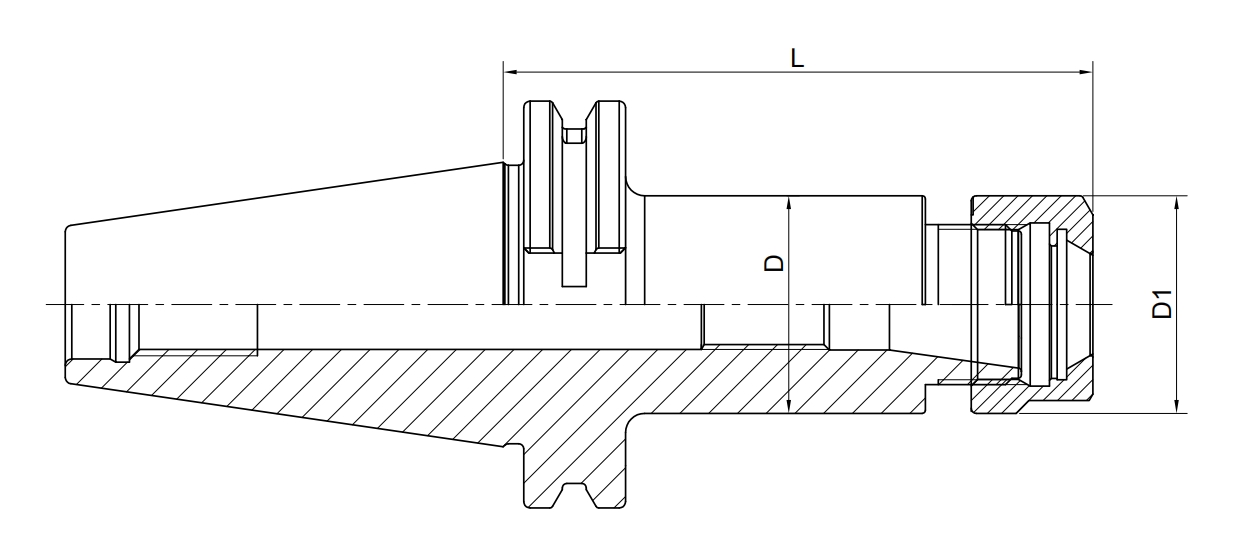

| Size | D | D1 | L | Capacity |
| SK30-ER16A-70 | 28 | 28 | 70 | 1-10 |
| SK30-ER20A-70 | 34 | 34 | 70 | 1-13 |
| SK30-ER16A-100 | 28 | 28 | 100 | 1-10 |
| SK30-ER20A-100 | 34 | 34 | 100 | 1-13 |
| SK40-ER16A-63 | 28 | 28 | 63 | 1-10 |
| SK40-ER20A-70 | 34 | 34 | 70 | 1-13 |
| SK40-ER16A-100 | 28 | 28 | 100 | 1-10 |
| SK40-ER20A-100 | 34 | 34 | 100 | 1-13 |
| SK40-ER16A-160T | 28 | 28 | 160 | 1-10 |
| SK40-ER20A-160 | 34 | 34 | 160 | 1-13 |
| SK40-ER16A-200T | 28 | 28 | 200 | 1-10 |
| SK40-ER20A-200 | 34 | 34 | 200 | 1-13 |
| SK50-ER16A-70 | 28 | 28 | 70 | 1-10 |
| SK50-ER20A-70 | 34 | 34 | 70 | 1-13 |
| SK50-ER16A-100 | 28 | 28 | 100 | 1-10 |
| SK50-ER20A-100 | 34 | 34 | 100 | 1-13 |
| SK50-ER16A-160T | 28 | 28 | 160 | 1-10 |
| SK50-ER20A-160 | 34 | 34 | 160 | 1-13 |
| SK50-ER16A-200T | 28 | 28 | 200 | 1-10 |
| SK50-ER20A-200 | 34 | 34 | 200 | 1-13 |
