MAS403 BT Shrink Chuck Taper, Coolant
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Color: | Bright |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions

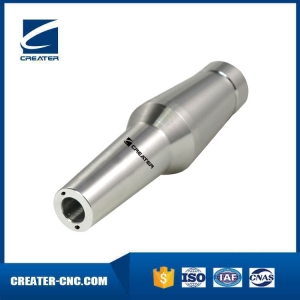

The same shrink fit tool holder blank can be installed with separate extension rods of different diameters/lengths.
| Size | d | D | D1 | L | M |
| 12-SF3-35K | 3 | 9.5 | 26 | 35 | M10 |
| 12-SF3-55K | 3 | 9.5 | 26 | 55 | M10 |
| 12-SF3-80K | 3 | 9.5 | 26 | 80 | M10 |
| 12-SF4-35K | 4 | 12 | 26 | 35 | M10 |
| 12-SF4-55K | 4 | 12 | 26 | 55 | M10 |
| 12-SF4-80K | 4 | 12 | 26 | 80 | M10 |
| 12-SF6-35K | 6 | 14 | 26 | 35 | M10 |
| 12-SF6-55K | 6 | 14 | 26 | 55 | M10 |
| 12-SF6-80K | 6 | 14 | 26 | 80 | M10 |
| 12-SF8-35K | 8 | 16 | 26 | 35 | M10 |
| 12-SF8-55K | 8 | 16 | 26 | 55 | M10 |
| 12-SF8-80K | 8 | 16 | 26 | 80 | M10 |
| 12-SF10-35K | 10 | 18 | 26 | 35 | M10 |
| 12-SF10-55K | 10 | 18 | 26 | 55 | M10 |
| 12-SF10-80K | 10 | 18 | 26 | 80 | M10 |
| 12-SF12-35K | 12 | 20 | 26 | 35 | M10 |
| 12-SF12-55K | 12 | 20 | 26 | 55 | M10 |
| 12-SF12-80K | 12 | 20 | 26 | 80 | M10 |
HIGH CLAMPING FORCE
Collet Chuck Shrink Chuck
HIGH PRECISION
Shrink Chuck Collet Chuck
