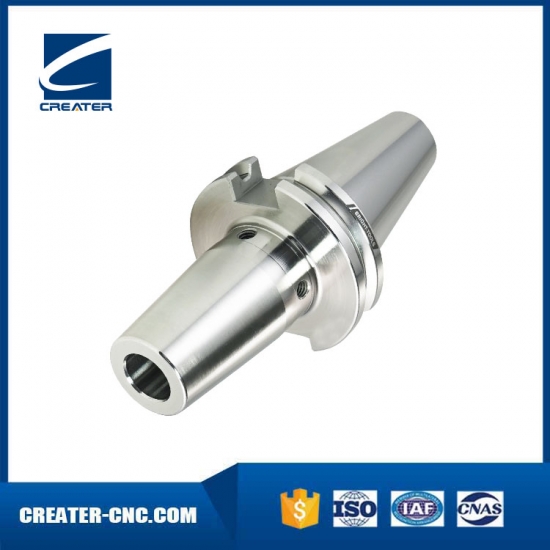

CAT40 CAT50 Shrink Chucks for mounting Solid Carbide and HSS-tool Shanks
Taper: ANSI B5.50 CAT40 CAT50 Shanks
Runout: <0.003mm
Taper Torlerabce: <AT3
Balancing: G2.5/25000
Surface Treatment: Bright
Shrink Chuck Application: for mounting Solid Carbide and HSS-tool Shanks.
Shrink Fit Tool Holder Features:
1) Anti-interfere function;
2) Tightly locked with cutting tools, unparalleled clamping force;
3) High and maintained precision;
4) Simple structure, no collets, good balancing;
5) Worked together with shrink machine, higher requirements for operators.

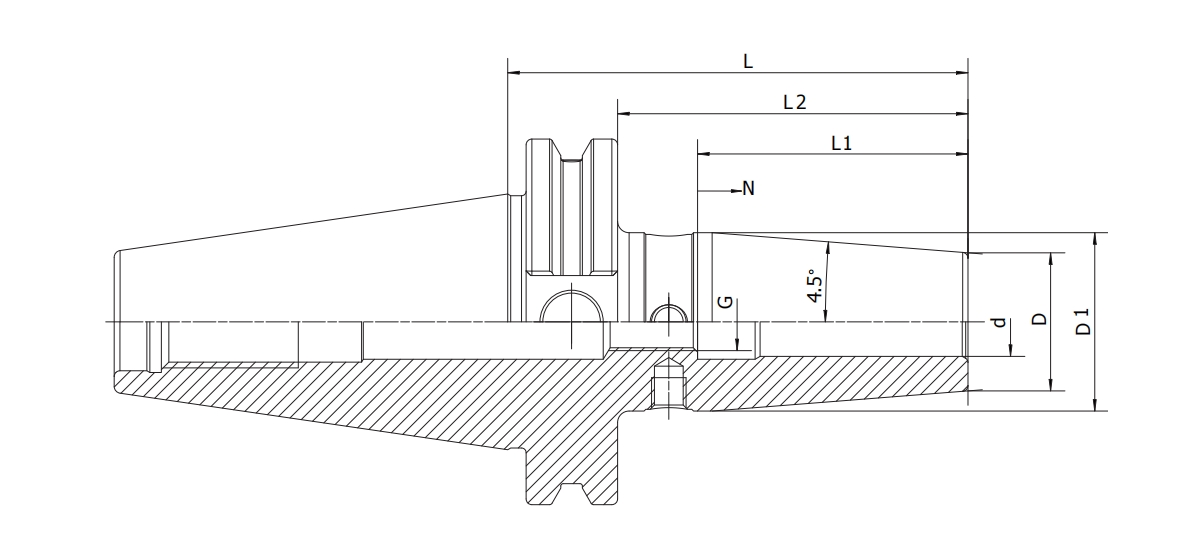

Size
d
D
D1
L
L2
L1
N
G
CAT40-SF03-80
3
15
20
80
60.9
-
-
-
CAT40-SF04-80
4
15
20
80
60.9
-
-
-
CAT40-SF05-80
5
15
20
80
60.9
-
-
-
CAT40-SF06-80
6
21
27
80
60.9
36
10
M5
CAT40-SF08-80
8
21
27
80
60.9
36
10
M6
CAT40-SF10-80
10
24
31
80
60.9
42
10
M8x1
CAT40-SF12-80
12
24
31
80
60.9
47
10
M10x1
CAT40-SF14-80
14
27
34
80
60.9
47
10
M10x1
CAT40-SF16-80
16
27
34
80
60.9
50
10
M12x1
CAT40-SF18-80
18
33
40
80
60.9
50
10
M12x1
CAT40-SF20-80
20
33
40
80
60.9
52
10
M16x1
CAT40-SF25-100
25
44
50
100
80.9
58
10
M16x1
CAT40-SF32-100
32
44
50
100
80.9
62
10
M16x1
CAT40-SF06-120
6
21
27
120
100.9
36
10
M5
CAT40-SF08-120
8
21
27
120
100.9
36
10
M6
CAT40-SF10-120
10
24
32
120
100.9
42
10
M8x1
CAT40-SF12-120
12
24
32
120
100.9
47
10
M10x1
CAT40-SF14-120
14
27
34
120
100.9
47
10
M10x1
CAT40-SF16-120
16
27
34
120
100.9
50
10
M12x1
CAT40-SF18-120
18
33
42
120
100.9
50
10
M12x1
CAT40-SF20-120
20
33
42
120
100.9
52
10
M16x1
CAT40-SF25-120
25
44
50
120
100.9
58
10
M16x1
CAT40-SF06-160
6
21
32
160
140.9
36
10
M5
CAT40-SF08-160
8
21
32
160
140.9
36
10
M6
CAT40-SF10-160
10
24
34
160
140.9
42
10
M8x1
CAT40-SF12-160
12
24
34
160
140.9
47
10
M10x1
CAT40-SF14-160
14
27
42
160
140.9
47
10
M10x1
CAT40-SF16-160
16
27
42
160
140.9
50
10
M12x1
CAT40-SF18-160
18
33
50
160
140.9
50
10
M12x1
CAT40-SF20-160
20
33
50
160
140.9
52
10
M16x1
CAT40-SF25-160
25
44
50
160
140.9
58
10
M16x1
CAT40-SF32-160
32
44
50
160
140.9
62
10
M16x1
CAT40-SF06-200
6
21
32
200
180.9
36
10
M5
CAT40-SF08-200
8
21
32
200
180.9
36
10
M6
CAT40-SF10-200
10
24
34
200
180.9
42
10
M8x1
CAT40-SF12-200
12
24
34
200
180.9
47
10
M10x1
CAT40-SF14-200
14
27
42
200
180.9
47
10
M10x1
CAT40-SF16-200
16
27
42
200
180.9
50
10
M12x1
CAT40-SF18-200
18
33
50
200
180.9
50
10
M12x1
CAT40-SF20-200
20
33
50
200
180.9
52
10
M16x1
CAT40-SF25-200
25
44
50
200
180.9
58
10
M16x1
CAT40-SF32-200
32
44
50
200
180.9
62
10
M16x1
CAT50-SF06-80
6
21
27
80
60.9
36
10
M5
CAT50-SF08-80
8
21
27
80
60.9
36
10
M6
CAT50-SF10-80
10
24
31
80
60.9
42
10
M8x1
CAT50-SF12-80
12
24
31
80
60.9
47
10
M10x1
CAT50-SF14-80
14
27
34
80
60.9
47
10
M10x1
CAT50-SF16-80
16
27
34
80
60.9
50
10
M12x1
CAT50-SF18-80
18
33
40
80
60.9
50
10
M12x1
CAT50-SF20-80
20
33
39.5
80
60.9
52
10
M16x1
CAT50-SF25-100
25
44
52.5
100
80.9
58
10
M16x1
CAT50-SF32-100
32
44
52.5
100
80.9
62
10
M16x1
CAT50-SF06-120
6
21
27
120
100.9
36
10
M5
CAT50-SF08-120
8
21
27
120
100.9
36
10
M6
CAT50-SF10-120
10
24
32
120
100.9
42
10
M8x1
CAT50-SF12-120
12
24
32
120
100.9
47
10
M10x1
CAT50-SF14-120
14
27
34
120
100.9
47
10
M10x1
CAT50-SF16-120
16
27
34
120
100.9
50
10
M12x1
CAT50-SF18-120
18
33
42
120
100.9
50
10
M12x1
CAT50-SF20-120
20
33
42
120
100.9
52
10
M16x1
CAT50-SF25-120
25
44
53
120
100.9
58
10
M16x1
CAT50-SF32-120
32
44
53
120
100.9
62
10
M16x1
CAT50-SF06-160
6
21
32
160
140.9
36
10
M5
CAT50-SF08-160
8
21
32
160
140.9
36
10
M6
CAT50-SF10-160
10
24
34
160
140.9
42
10
M8x1
CAT50-SF12-160
12
24
34
160
140.9
47
10
M10x1
CAT50-SF14-160
14
27
42
160
140.9
47
10
M10x1
CAT50-SF16-160
16
27
42
160
140.9
50
10
M12x1
CAT50-SF18-160
18
33
51
160
140.9
50
10
M12x1
CAT50-SF20-160
20
33
51
160
140.9
52
10
M16x1
CAT50-SF25-160
25
44
60
160
140.9
58
10
M16x1
CAT50-SF32-160
32
44
60
160
140.9
62
10
M16x1
CAT50-SF06-200
6
21
32
200
180.9
36
10
M5
CAT50-SF08-200
8
21
32
200
180.9
36
10
M6
CAT50-SF10-200
10
24
34
200
180.9
42
10
M8x1
CAT50-SF12-200
12
24
34
200
180.9
47
10
M10x1
CAT50-SF14-200
14
27
42
200
180.9
47
10
M10x1
CAT50-SF16-200
16
27
42
200
180.9
50
10
M12x1
CAT50-SF18-200
18
33
51
200
180.9
50
10
M12x1
CAT50-SF20-200
20
33
51
200
180.9
52
10
M16x1
CAT50-SF25-200
25
44
60
200
180.9
58
10
M16x1
CAT50-SF32-200
32
44
60
200
180.9
62
10
M16x1
