Face Mill Holder Inch
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Sandblasting Blackening |
| Lead Time: | 25 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

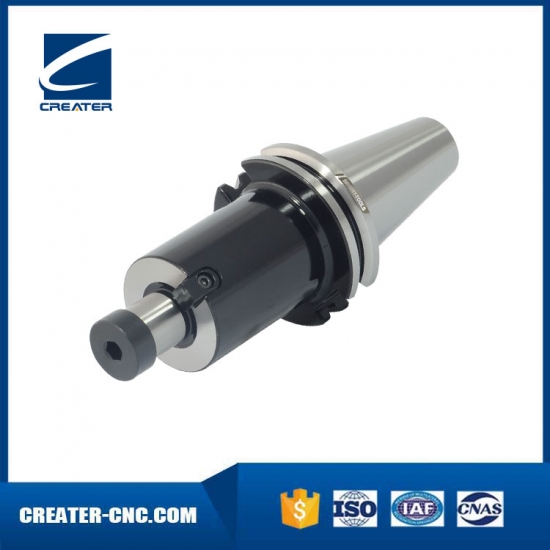

Face Mill Holder Inch
Taper: CAT
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: for mounting milling cutters with transversal groove.

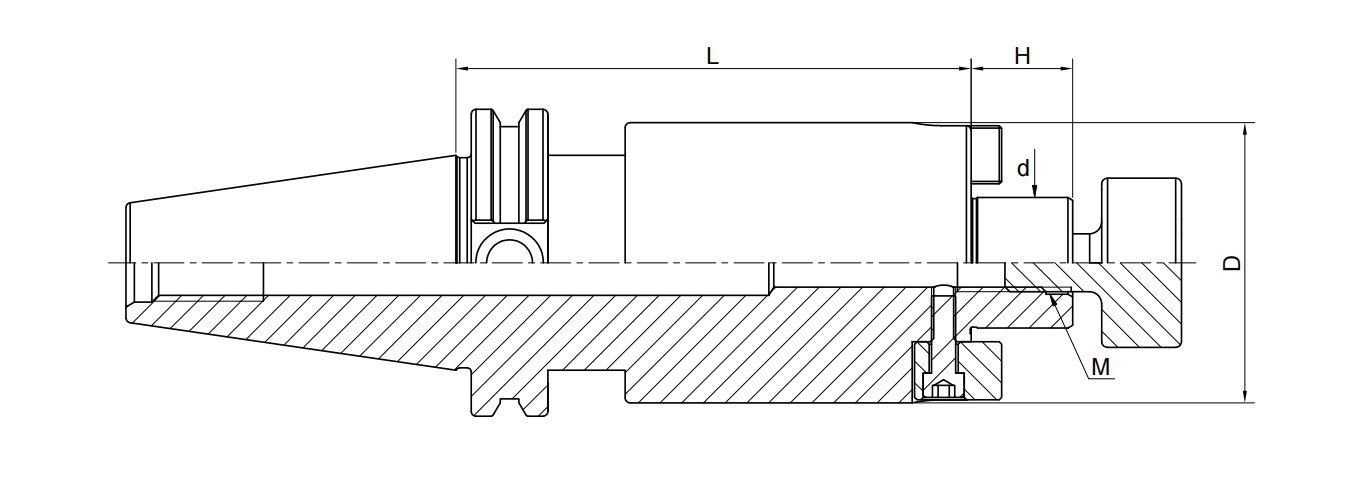

| Size | d | D | L | H | M |
| CAT40-FMA1/2"-1.75" | 1/2" | 36.576 | 1.75" | 13.97 | 1/4-28 |
| CAT40-FMA3/4"-1.75" | 3/4" | 42.926 | 1.75" | 17.45 | 3/8-24 |
| CAT40-FMA1"-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
| CAT40-FMA1-1/4"-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
| CAT40-FMA1-1/2"-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
| CAT40-FMA1/2"-4" | 1/2" | 36.576 | 4" | 13.97 | 1/4-28 |
| CAT40-FMA3/4"-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
| CAT40-FMA1"-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
| CAT40-FMA1-1/4"-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
| CAT40-FMA1-1/2"-4" | 1-1/2" | 78 | 4" | 23.83 | 3/4-16 |
| CAT40-FMA3/4"-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
| CAT40-FMA1"-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
| CAT40-FMA3/4"-8" | 3/4" | 42.926 | 8" | 17.45 | 3/8-24 |
| CAT40-FMA1"-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
| CAT50-FMA1/2"-1.38" | 1/2" | 36.576 | 1.38" | 13.97 | 1/4-28 |
| CAT50-FMA3/4"-2" | 3/4" | 42.926 | 2" | 17.45 | 3/8-24 |
| CAT50-FMA1"-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
| CAT50-FMA2"-2" | 2" | 98 | 2" | 23.83 | 1-14 |
| CAT50-FMA3/4"-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
| CAT50-FMA1"-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-4" | 1-1/2" | 78 | 4" | 23.83 | 3/4-16 |
| CAT50-FMA2"-4" | 2" | 98 | 4" | 23.83 | 1-14 |
| CAT50-FMA3/4"-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
| CAT50-FMA1"-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-6" | 1-1/4" | 69.85 | 6" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-6" | 1-1/2" | 78 | 6" | 23.83 | 3/4-16 |
| CAT50-FMA3/4"-8" | 3/4" | 42.926 | 8" | 17.45 | 3/8-24 |
| CAT50-FMA1"-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
| CAT50-FMA1-1/4"-8" | 1-1/4" | 69.85 | 8" | 17.45 | 5/8-18 |
| CAT50-FMA1-1/2"-8" | 1-1/2" | 78 | 8" | 23.83 | 3/4-16 |
