Collet Chuck with Mini Nut
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Bright |
| Lead Time: | 10-35 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

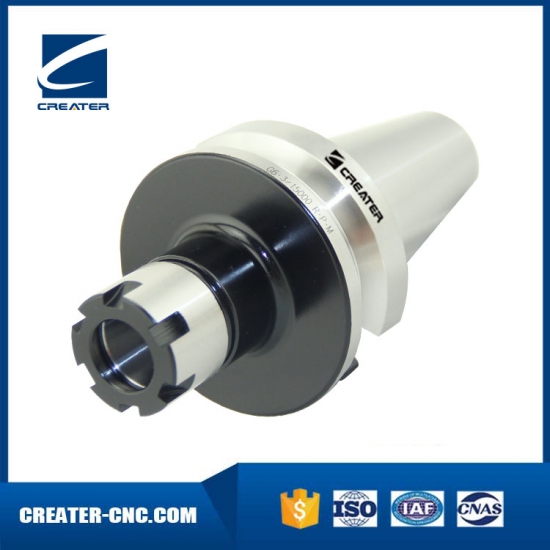

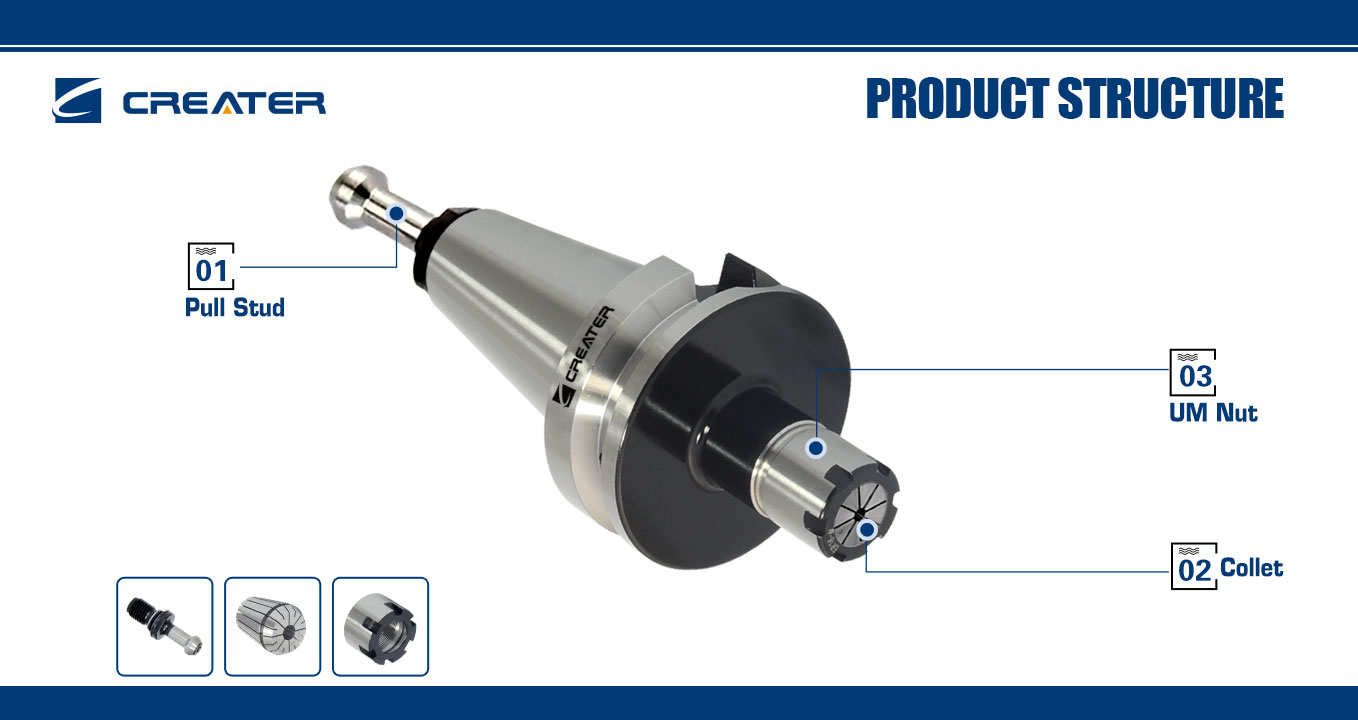

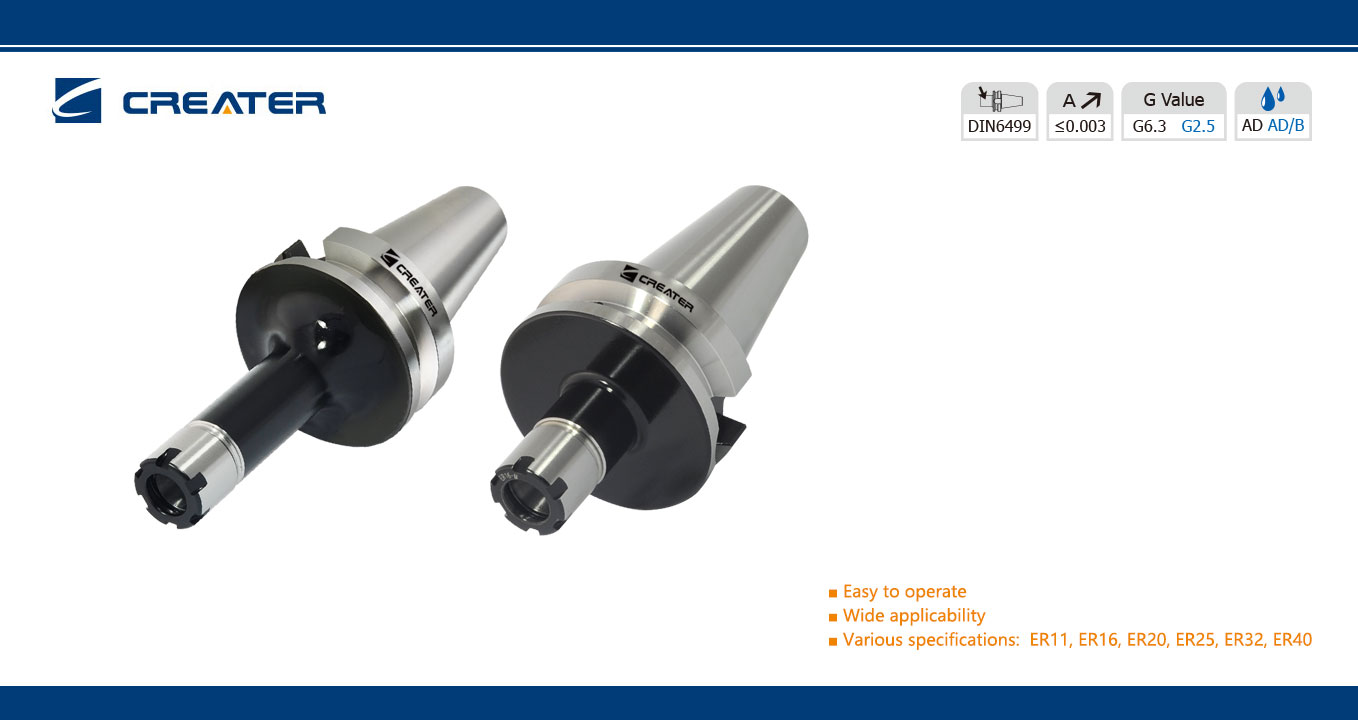

MAS403 BT Taper ER Collet Chuck with Mini Nuts
Taper: MAS 403 BT
Runout: <0.005mm
Taper Torlerabce: <AT3

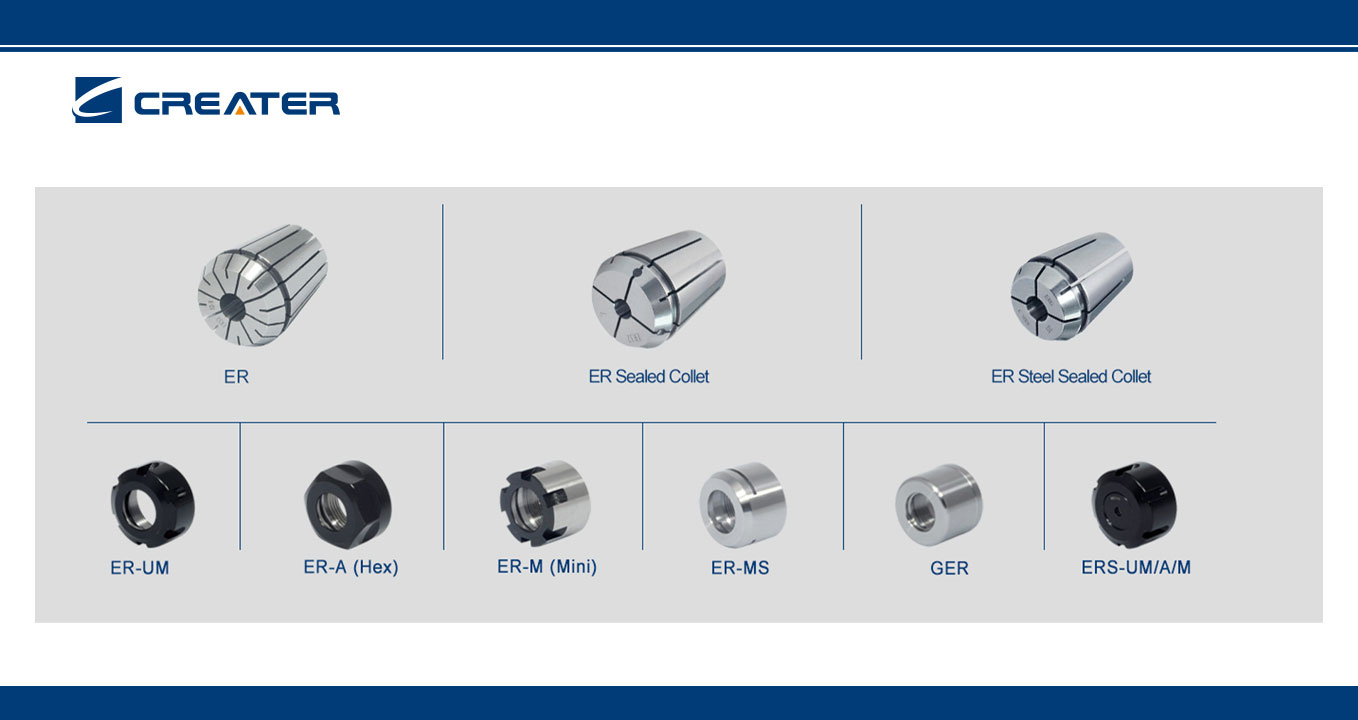

Collet: DIN6499 ER Collet
Surface Treatment: Blackening; Bright
Balancing: G6.3/15000 RPM or G2.5/25000 RPM
Application: BT Collet Chuck is for clamping tools with straight shank in collets DIN6499.

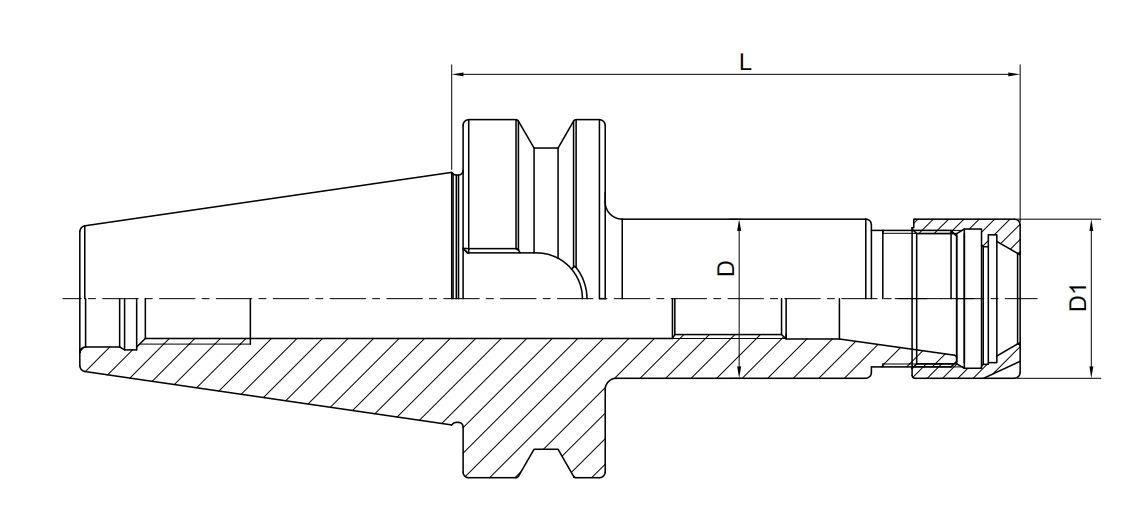

| Size | D | D1 | L | Capacity |
| BT30-ER11M-70 | 16 | 16 | 70 | 1-7 |
| BT30-ER16M-70 | 22 | 22 | 70 | 1-10 |
| BT40-ER11M-70 | 16 | 16 | 70 | 1-7 |
| BT40-ER16M-70 | 22 | 22 | 70 | 1-10 |
| BT40-ER20M-70 | 28 | 28 | 70 | 1-13 |
| BT40-ER25M-70 | 35 | 35 | 70 | 2-16 |
| BT40-ER11M-100 | 16 | 16 | 100 | 1-7 |
| BT40-ER16M-100 | 22 | 22 | 100 | 1-10 |
| BT40-ER20M-100 | 28 | 28 | 100 | 1-13 |
| BT40-ER25M-100 | 35 | 35 | 100 | 2-16 |
| BT40-ER11M-160T | 16 | 16 | 160 | 1-7 |
| BT40-ER16M-160T | 22 | 22 | 160 | 1-10 |
| BT40-ER20M-160 | 28 | 28 | 160 | 1-13 |
| BT40-ER25M-160 | 35 | 35 | 160 | 2-16 |
| BT50-ER16M-100 | 22 | 22 | 100 | 1-10 |
| BT50-ER20M-100 | 28 | 28 | 100 | 1-13 |
| BT50-ER25M-100 | 35 | 35 | 100 | 2-16 |
| BT50-ER16M-160T | 22 | 22 | 160 | 1-10 |
| BT50-ER20M-160 | 28 | 28 | 160 | 1-13 |
| BT50-ER25M-160 | 35 | 35 | 160 | 2-16 |
