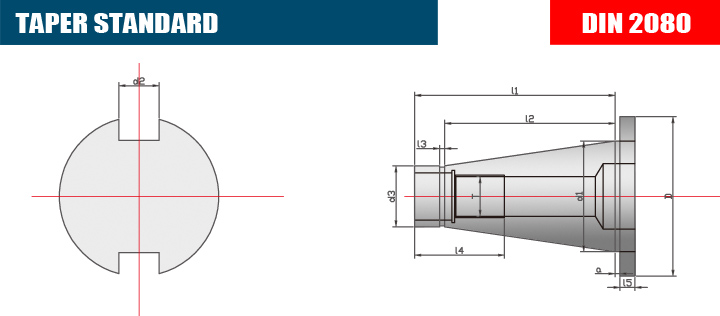

| Model | D | d1 | d2 | d3 | a | l1 | l2 | l3 | l4 | l5 | T |
| NT30 | 49 | 31.75 | 16.1 | 17.04 | 1.6 | 68.4 | 48.4 | 3 | 24 | 8 | M12/1/2"-12 |
| NT40 | 63 | 44.45 | 16.1 | 24.92 | 1.6 | 93.4 | 65.4 | 5 | 32 | 10 | M16/5/8"-11 |
| NT50 | 97.5 | 69.85 | 25.7 | 39.19 | 3.2 | 126.8 | 101.8 | 8 | 47 | 12 | M24/1"-8 |
NT30, NT50, NT40 Tool Holders
Used for CNC Machine Centers.
Collet Chucks, Precision Milling Chucks, OZ Collet Chucks, Weldon End Mill Tool Holder, Face Mill Holder and Morse Taper Tools are widely used, if you want special tool holders, please send drawings to proceed.
All CNC Tool Holder be made of alloyed case hardened steel, black-finished and precisely grinded.
-
Collet Chuck
DIN 2080 NT ER COLLET CHUCK DIN 6499 -
Power Milling Chuck
DIN 2080 NT Power Milling Chuck with Straight Shank Collet -
OZ Collet Chuck
DIN 2080 NT Holder OZ Collet Chuck -
Face Mill Holder
DIN2080 NT Face Mill Holder in Metric -
Morse Taper with Tang
DIN2080 NT Taper Morse Taper Adapter with Tang DIN6383 -
Morse Adapter with Drawbar
DIN2080 NT Morse Taper Adapter with Drawbar DIN6364 -
Weldon Holder
DIN2080 NT Sidelock End Mill Holder DIN6359/1835B -
Combi Shell Mill Holder
DIN2080 NT Combi Shell Mill Tool Holder DIN6358
