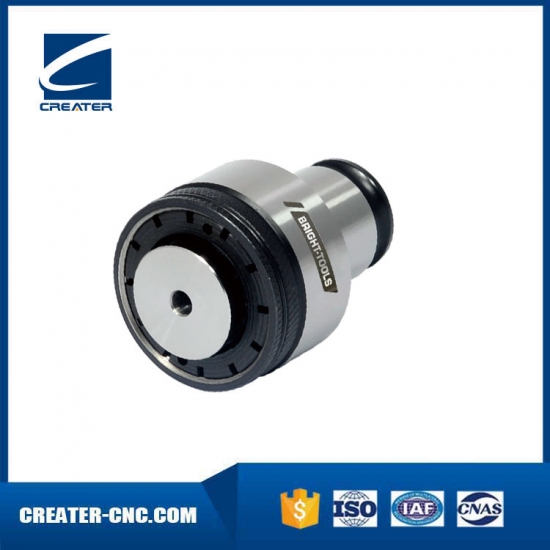

Tapping Collet With Cluth
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5 to 45 Days |
- Specification

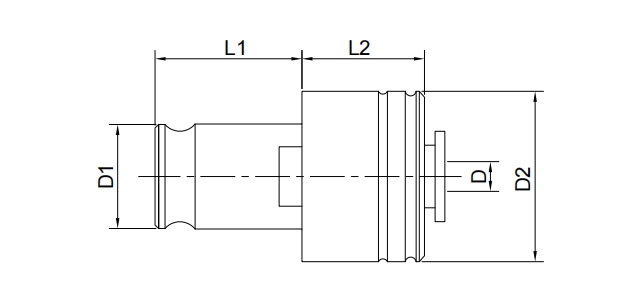

- Simple figure
- Precautions
Tapping Collet with Cluth
| Size | Collet | M | D | o | D1 | D2 | L1 | L2 |
| FES1 M2(2.80x2.1) | FES 1 | M2 | 2.8 | 2.1 | 19 | 33 | 21.5 | 25 |
| FES1 M3(3.5*2.7) | FES 1 | M3 | 3.5 | 2.7 | 19 | 33 | 21.5 | 25 |
| FES1 M3.5(4*3) | FES 1 | M3.5 | 4 | 3 | 19 | 33 | 21.5 | 25 |
| FES1 M4(5*4) | FES 1 | M4 | 5 | 4 | 19 | 33 | 21.5 | 25 |
| FES1 M4(4.5*3.4) | FES 1 | M4 | 4.5 | 3.4 | 19 | 33 | 21.5 | 25 |
| FES1 M5(6*4.9) | FES 1 | M5 | 6 | 4.9 | 19 | 33 | 21.5 | 25 |
| FES1 M6(6.3*5) | FES 1 | M6 | 6.3 | 5 | 19 | 33 | 21.5 | 25 |
| FES1 M6(6*4.9) | FES 1 | M6 | 6 | 4.9 | 19 | 33 | 21.5 | 25 |
| FES1 M8(8*6.3) | FES 1 | M8 | 8 | 6.3 | 19 | 33 | 21.5 | 25 |
| FES1 M10(10*8) | FES 1 | M10 | 10 | 8 | 19 | 33 | 21.5 | 25 |
| FES1 M10(7*5.5) | FES 1 | M10 | 7 | 5.5 | 19 | 33 | 21.5 | 25 |
| FES1 M12(9*7.1) | FES 1 | M12 | 9 | 7.1 | 19 | 33 | 21.5 | 25 |
| FES1 M12(9*7) | FES 1 | M12 | 9 | 7 | 19 | 33 | 21.5 | 25 |
| FES1 M14(11*9) | FES 1 | M14 | 11 | 9 | 19 | 33 | 21.5 | 25 |
| Size | Collet | M | D | o | D1 | D2 | L1 | L2 |
| FES2 M5(6*4.9) | FES 2 | M5 | 6 | 4.9 | 31 | 51 | 35 | 35 |
| FES2 M6(6.3*5) | FES 2 | M6 | 6.3 | 5 | 31 | 51 | 35 | 35 |
| FES2 M6(6*4.9) | FES 2 | M6 | 6 | 4.9 | 31 | 51 | 35 | 35 |
| FES2 M8(8*6.3) | FES 2 | M8 | 8 | 6.3 | 31 | 51 | 35 | 35 |
| FES2 M10(10*8) | FES 2 | M10 | 10 | 8 | 31 | 51 | 35 | 35 |
| FES2 M10(7*5.5) | FES 2 | M10 | 7 | 5.5 | 31 | 51 | 35 | 35 |
| FES2 M12(9*7.1) | FES 2 | M12 | 9 | 7.1 | 31 | 51 | 35 | 35 |
| FES2 M12(9*7) | FES 2 | M12 | 9 | 7 | 31 | 51 | 35 | 35 |
| FES2 M14(11*9) | FES 2 | M14 | 11 | 9 | 31 | 51 | 35 | 35 |
| FES2 M16(12.5*10) | FES 2 | M16 | 12.5 | 10 | 31 | 51 | 35 | 35 |
| FES2 M16(12*9) | FES 2 | M16 | 12 | 9 | 31 | 51 | 35 | 35 |
| FES2 M18(14*11) | FES 2 | M18 | 14 | 11 | 31 | 51 | 35 | 35 |
| FES2 M20(16*12) | FES 2 | M20 | 16 | 12 | 31 | 51 | 35 | 35 |
| FES2 M22(18*14.5) | FES 2 | M22 | 18 | 14.5 | 31 | 51 | 35 | 35 |
| FES2 M24(18*14.5) | FES 2 | M24 | 18 | 14.5 | 31 | 51 | 35 | 35 |
| FES2 M24(16*12.5) | FES 2 | M24 | 16 | 12.5 | 31 | 51 | 35 | 35 |
| FES3 M14(11*9) | FES 3 | M14 | 11 | 9 | 48 | 73 | 55.5 | 45 |
| FES3 M16(12*9) | FES 3 | M16 | 12 | 9 | 48 | 73 | 55.5 | 45 |
| FES3 M18(14*11) | FES 3 | M18 | 14 | 11 | 48 | 73 | 55.5 | 45 |
| FES3 M20(16*12) | FES 3 | M20 | 16 | 12 | 48 | 73 | 55.5 | 45 |
| FES3 M22(18*14.5) | FES 3 | M22 | 18 | 14.5 | 48 | 73 | 55.5 | 45 |
| FES3 M24(18*14.5) | FES 3 | M24 | 18 | 14.5 | 48 | 73 | 55.5 | 45 |
| FES3 M27(20*16) | FES 3 | M27 | 20 | 16 | 48 | 73 | 55.5 | 45 |
| FES3 M30(22*18) | FES 3 | M30 | 22 | 18 | 48 | 73 | 55.5 | 45 |
| FES3 M33(25*20) | FES 3 | M33 | 25 | 20 | 48 | 73 | 55.5 | 45 |
| FES3 M36(28*22) | FES 3 | M36 | 28 | 22 | 48 | 73 | 55.5 | 45 |
