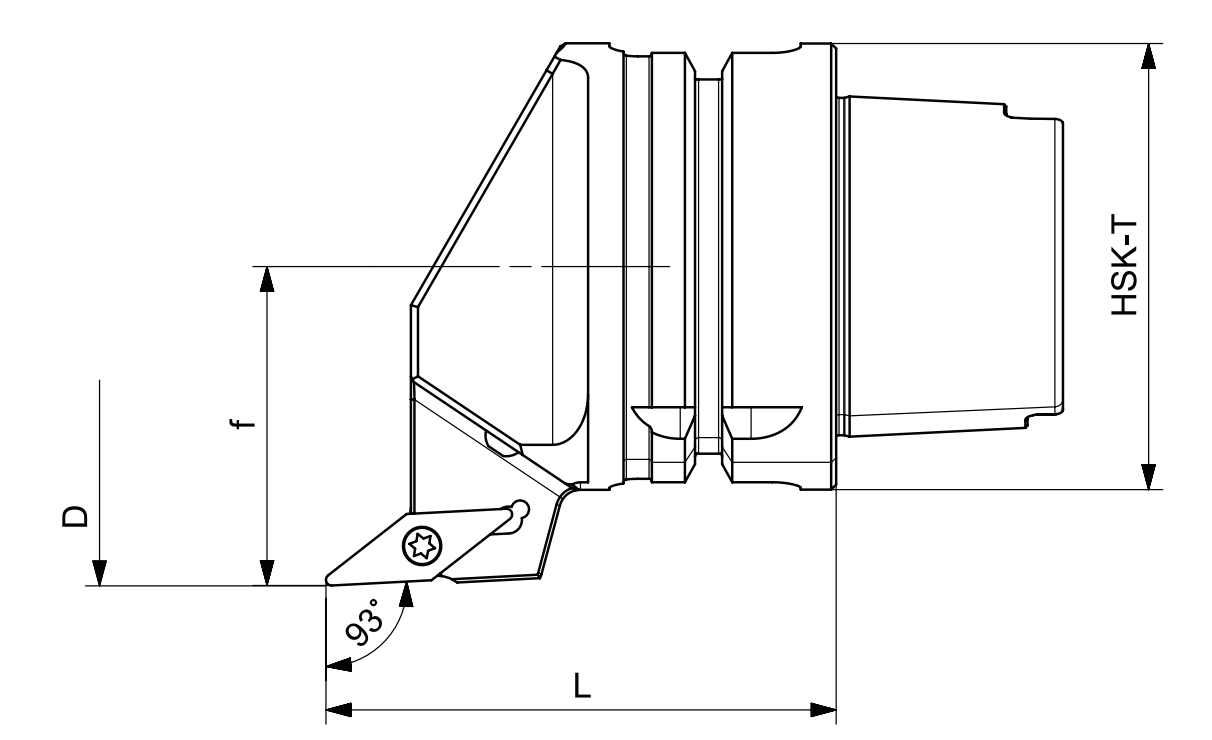

- Simple figure
- Precautions

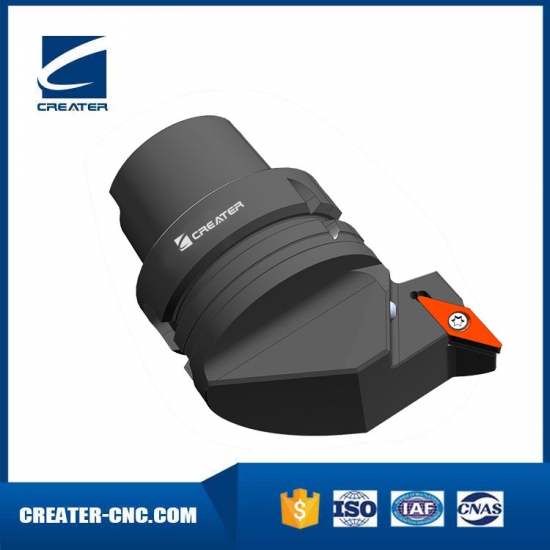

HSK63T and HSK100T Internal Turning Tool Holder for VB and VC Style Positive Inserts
Screw clamping
Suitable for VB..1604 and VC..1604 inserts
Insert clamping system: S
Insert shape code: V
Tool cutting edge angle code: J
Insert clearance angle: B or C
Direction of cutting code: R and L
Tool cutting edge angle: 93 deg.
Size
f
D
L
Direction
Inserts N.
HSK63T-SVJBR-45072-16
45
80
71,5
R
VB..1604..
HSK63T-SVJBL-45072-16
45
80
71,5
L
VB..1604..
HSK63T-SVJCR-45072-16
45
80
71,5
R
VC..1604..
HSK63T-SVJCL-45072-16
45
80
71,5
L
VC..1604..
HSK100T-SVJBR-63100-16
63
120
100
R
VB..1604..
HSK100T-SVJBL-63100-16
63
120
100
L
VB..1604..
HSK100T-SVJCR-63100-16
63
120
100
R
VC..1604..
HSK100T-SVJCL-63100-16
63
120
100
L
VC..1604..
