HSK-T Turning Tool SCLCR | SCLCL 95°/80°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

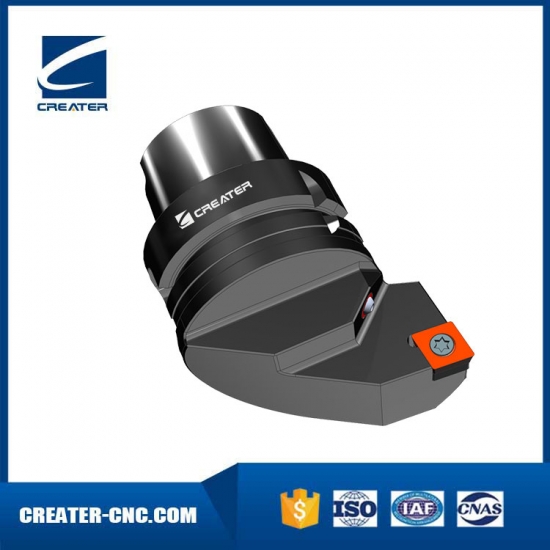

HSK63T and HSK100T External Tool Holder for CC Style Positive Inserts
Screw clamping
Suitable for CC..1204 inserts
Insert clamping system: S
Insert shape code: C
Tool cutting edge angle code: L
Insert clearance angle: C
Direction of cutting code: R and L
Tool cutting edge angle: 95 deg.

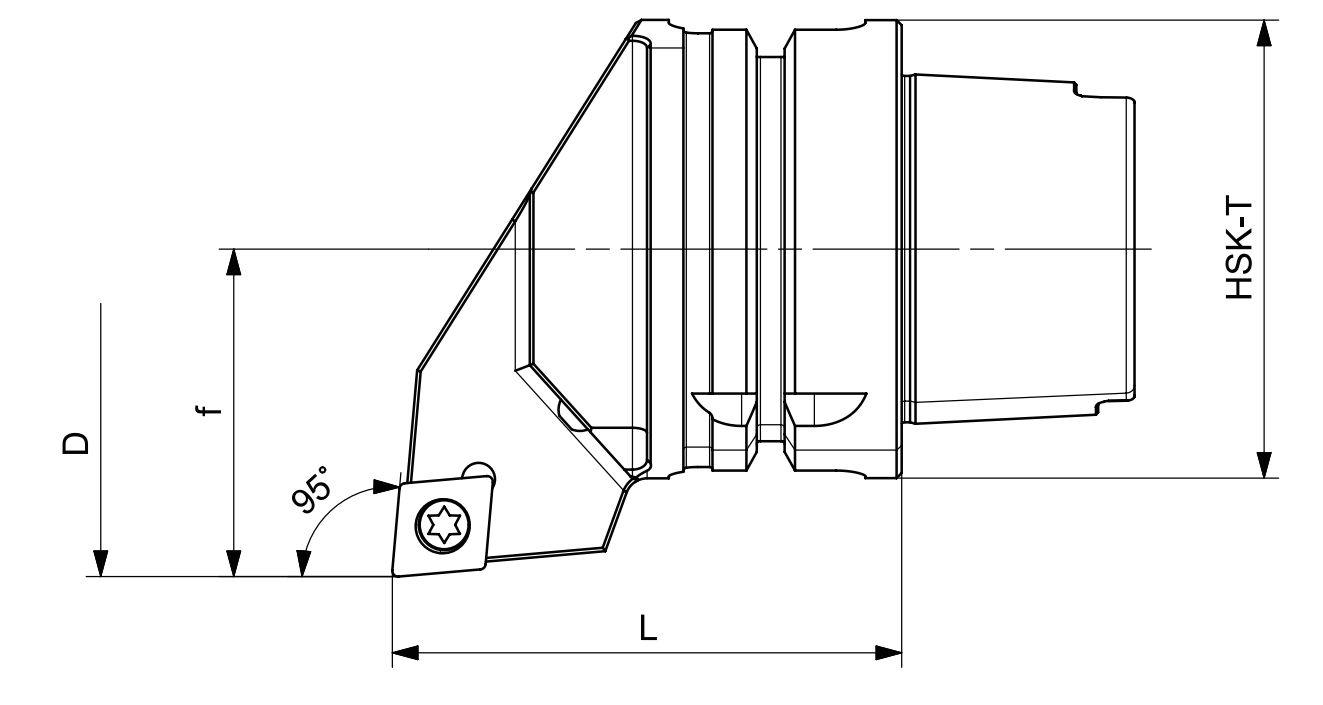

Size
f
d1
l1
Direction
Inserts N.
HSK63T-SCLCR-45070-12
45
80
70
R
CC..1204..
HSK63T-SCLCL-45070-12
45
80
70
L
CC..1204..
HSK100T-SCLCR-63100-12
63
120
100
R
CC..1204..
HSK100T-SCLCL-63100-12
63
120
100
L
CC..1204..
