Drill Chuck Adaptors DIN 238
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 20 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

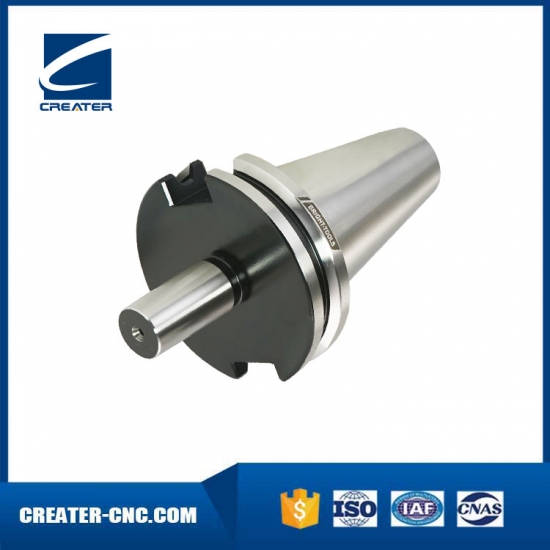

CAT Drill Chuck Adaptor DIN 238
Taper: CAT
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: DRILL CHUCK HOLDER is for mounting drill chucks.

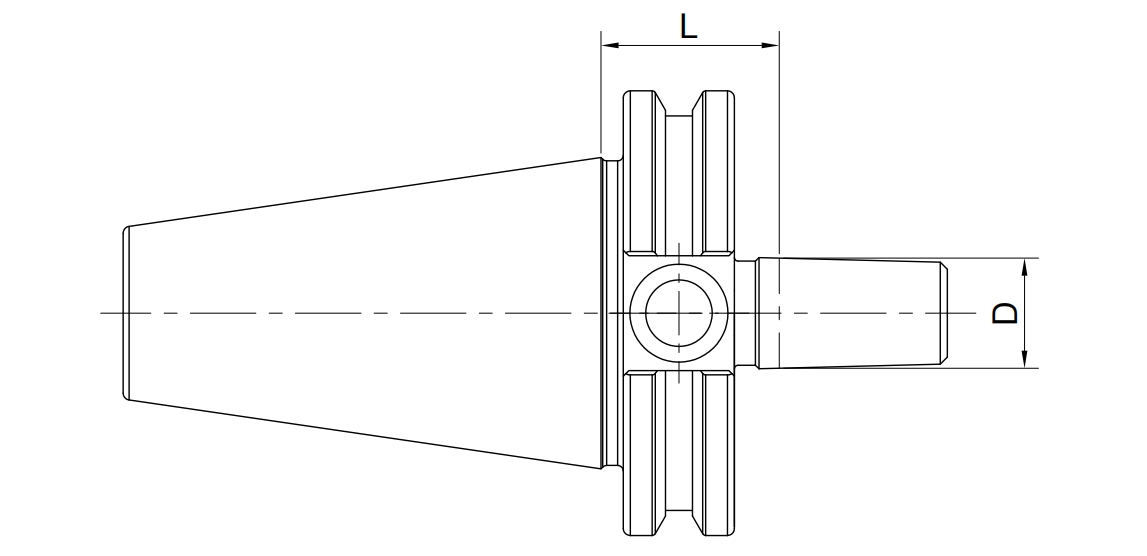

| Size | D | L |
| CAT40-JT2-1.5" | 14.199 | 1.5" |
| CAT40-JT3-1.5" | 20.599 | 1.5" |
| CAT40-JT4-1.5" | 28.55 | 1.5" |
| CAT40-JT6-1.5" | 17.17 | 1.5" |
| CAT40-JT33-1.5" | 15.85 | 1.5" |
| CAT50-JT2-1.5" | 14.199 | 1.5" |
| CAT50-JT3-1.5" | 20.599 | 1.5" |
| CAT50-JT4-1.5" | 28.55 | 1.5" |
| CAT50-JT6-1.5" | 17.17 | 1.5" |
| CAT50-JT33-1.5" | 15.85 | 1.5" |
