Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Sandblasting Bright |
| Lead Time: | 15 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

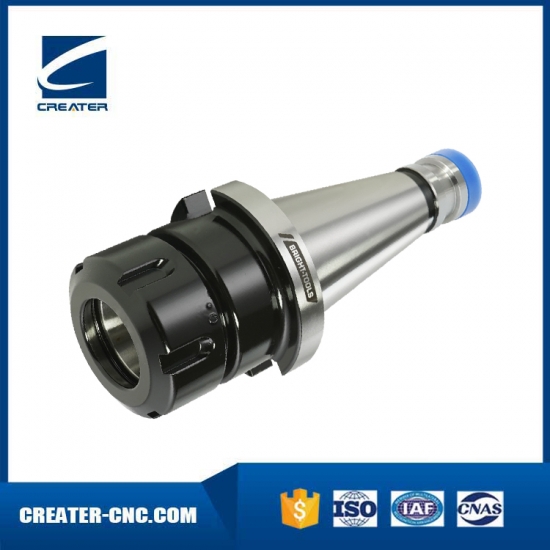

DIN2080 ER Collet Chuck with DIN 6499B ER Collets
Runout: <0.005mm
Taper Torlerabce: <AT3
Surface Treatment: Blackening
Application: for mounting straight shank tools in ER Collet.

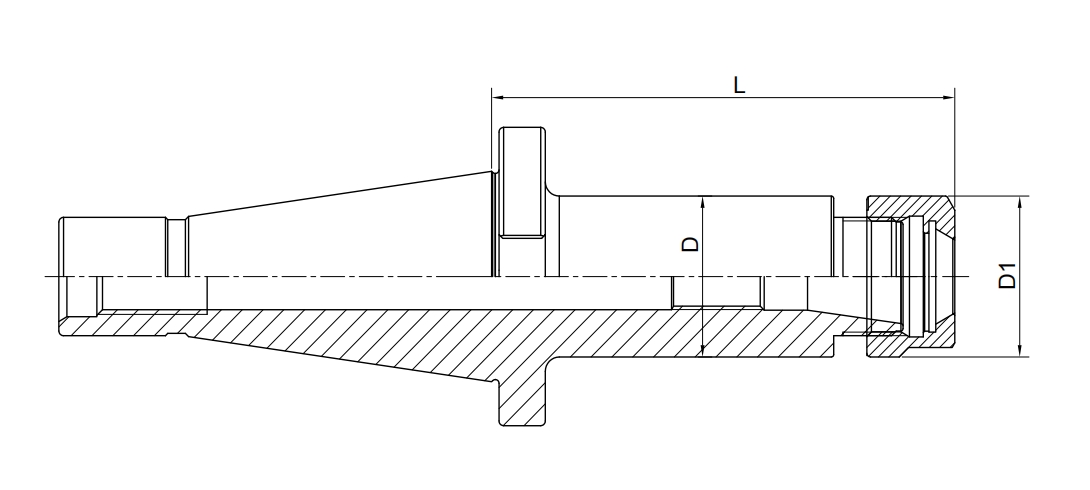

| Size | D | D1 | L | Capacity |
| NT30-ER16A-50 | 28 | 28 | 50 | 1-10 |
| NT30-ER20A-50 | 34 | 34 | 50 | 1-13 |
| NT30-ER25-50 | 42 | 42 | 50 | 2-16 |
| NT30-ER32-50 | 40 | 50 | 50 | 2-20 |
| NT30-ER40-80 | 50 | 63 | 80 | 4-26 |
| NT40-ER16-50(OTT) | 28 | 28 | 50 | 1-10 |
| NT40-ER20-50(OTT) | 34 | 34 | 50 | 1-13 |
| NT40-ER25-50(OTT) | 42 | 42 | 50 | 1-13 |
| NT40-ER32-50(OTT) | 50 | 50 | 50 | 3-20 |
| NT40-ER40-80(OTT) | 50 | 63 | 80 | 4-26 |
| NT50-ER25-60(OTT) | 42 | 42 | 60 | 1-13 |
| NT50-ER32-70(OTT) | 50 | 50 | 70 | 1-20 |
| NT50-ER40-80(OTT) | 63 | 63 | 70 | 2-26 |
| NT50-ER50-90(OTT) | 70 | 78 | 90 | 6-34 |
| Size | D | D1 | L | Capacity |
| NT30-ER16M-70 | 22 | 22 | 70 | 1-10 |
| NT30-ER20M-70 | 28 | 28 | 70 | 1-13 |
| NT30-ER25M-70 | 35 | 35 | 70 | 2-16 |
| NT40-ER16M-60(OTT) | 22 | 22 | 60 | 1-10 |
| NT40-ER20M-60(OTT) | 28 | 28 | 60 | 1-13 |
| NT40-ER25M-60(OTT) | 35 | 35 | 60 | 2-16 |
