MAS403 BT Alignment Tool For ATC Arm
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

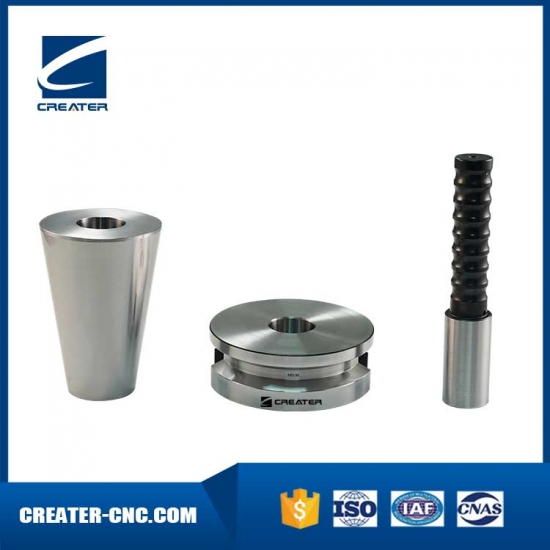

MAS403 BT Alignment Tool For ATC Arm

ATC Arm Alignment tools is used to correct the Arm position, Long-term use of the Arm will cause different degrees of wear and deformation, so that the tool cannot be effectively clamped, stored in the tool warehouse, and the Alignment tool can effectively adjust the Arm position to solve this problem

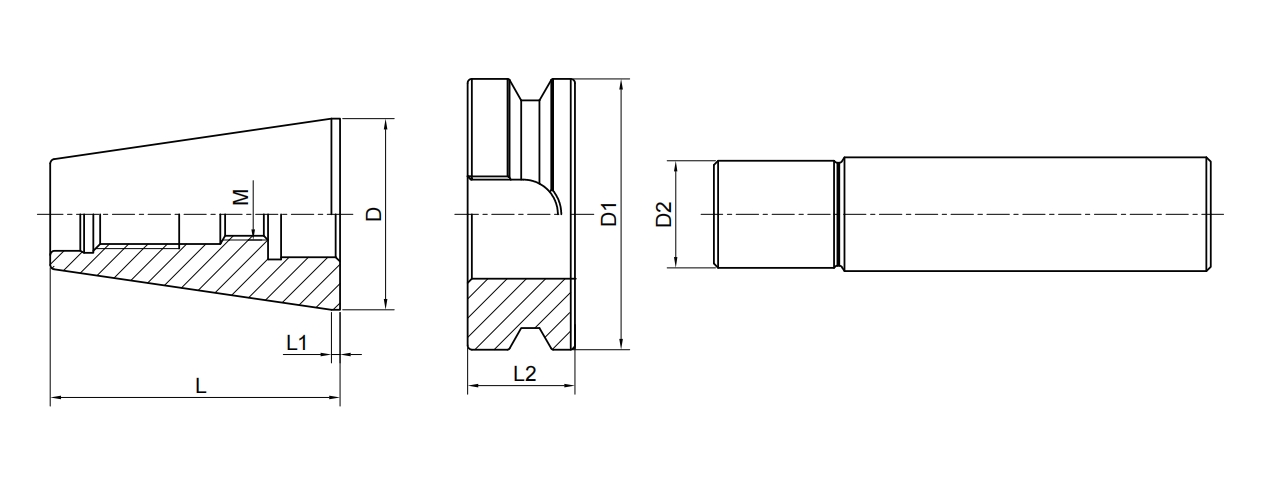

Size D D1 D2 L L1 L2
BT30-ATC-18D 31.75 46 18 50.4 2 20
BT40-ATC-20D 44.45 63 20 67.4 2 25
BT50-ATC-28D 69.85 100 28 104.8 3 35
