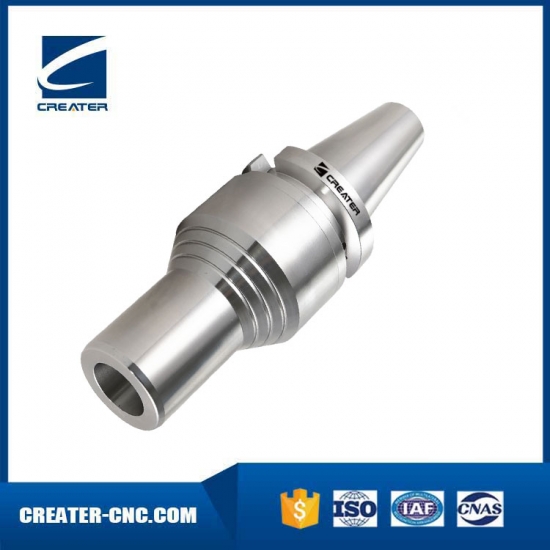

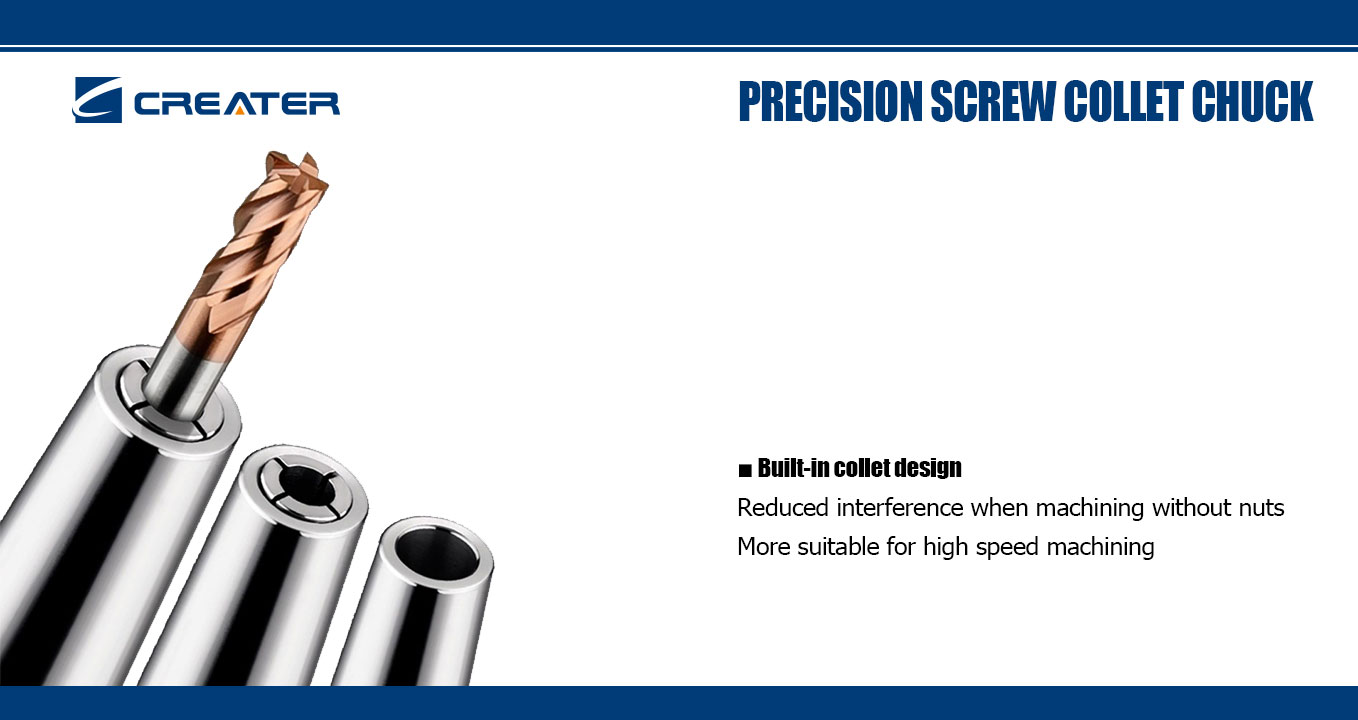

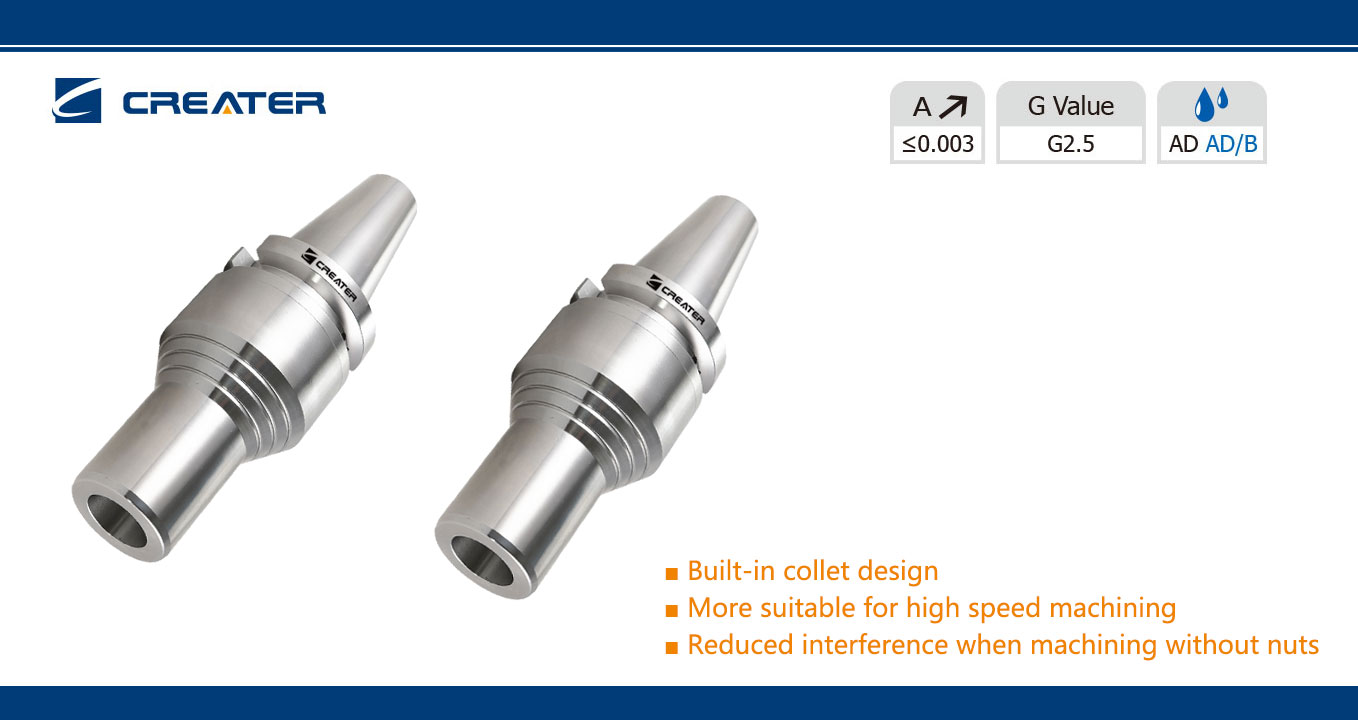

Precision Screw Collet Chuck MAS403
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
| Size | L | L1 | D | D1 | Capacity（d） |
| HSK50A-NDC20-105 | 105 | 20 | 53 | 40 | 3-20 |
| HSK63A-NDC20-100 | 100 | 20 | 53 | 40 | 3-20 |
| HSK63A-NDC20-145 | 145 | 61 | 53 | 40 | 3-20 |
| HSK63A-NDC20-178 | 178 | 97 | 53 | 40 | 3-20 |
| HSK63A-NDC25-152 | 152 | - | 63 | - | 16-32 |
| HSK63A-NDC32-155 | 155 | - | 63 | - | 20-32 |
| HSK100A-NDC20-105 | 105 | 15 | 63 | 40 | 3-20 |
| HSK100A-NDC20-150 | 150 | 48 | 63 | 40 | 3-20 |
| HSK100A-NDC20-186 | 186 | 84 | 63 | 40 | 3-20 |
| HSK100A-NDC25-152 | 152 | - | 70 | - | 16-32 |
| HSK100A-NDC32-155 | 155 | - | 70 | - | 20-32 |
