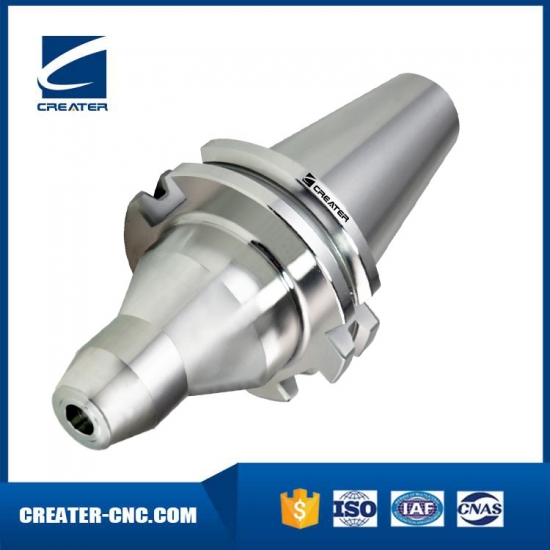

DIN69871 Hydraulic Chuck, for Grind

Brand:	creater

contact now

Specification
Simple figure
Precautions

SK type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

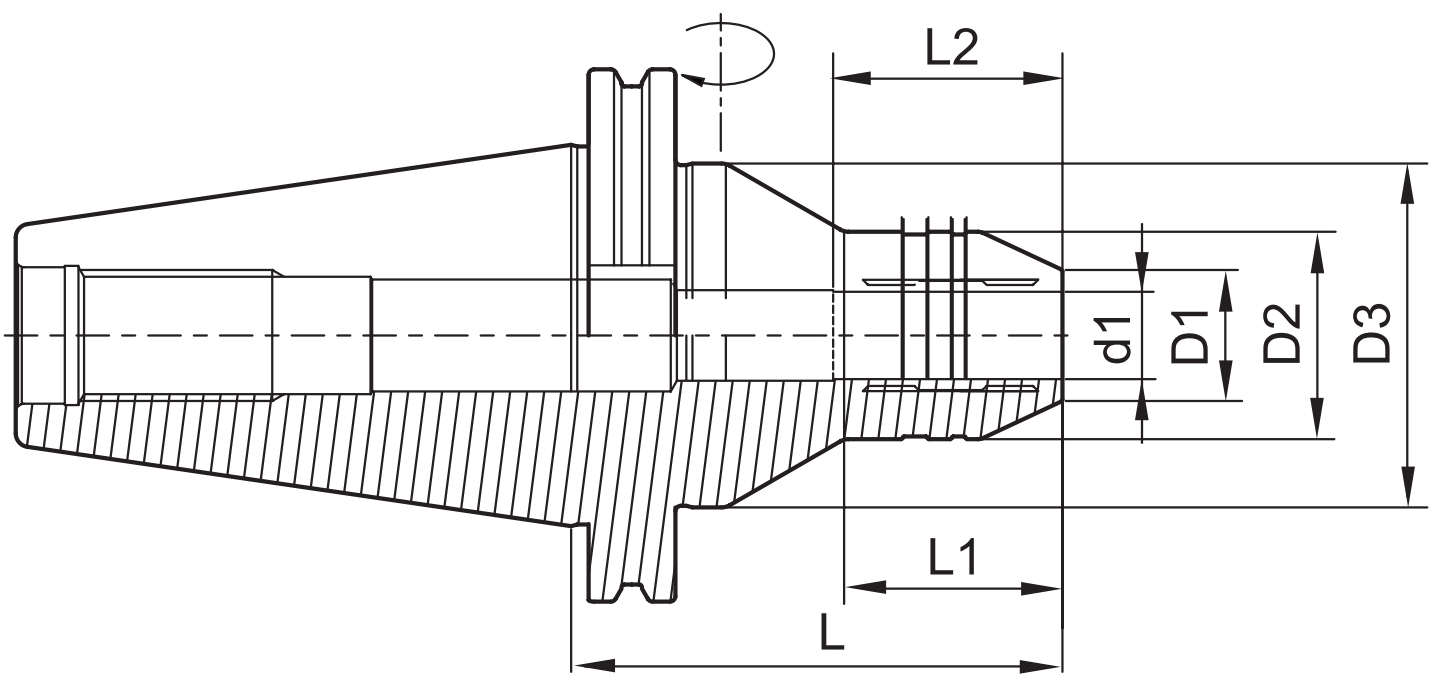

Size	d1	D1	D2	D3	L	L1	L2
SK50-HYG6-90	6	14	30	63	90	30	27
SK50-HYG8-90	8	16	30	63	90	30	27
SK50-HYG10-90	10	18	30	63	90	30	32
SK50-HYG12-90	12	21	33	63	90	35	37
SK50-HYG14-90	14	22	35	63	90	35	37
SK50-HYG16-90	16	24	38	63	90	40	42
SK50-HYG18-90	18	26	40	63	90	40	42
SK50-HYG20-110	20	29	42	63	110	40	42
SK50-HYG25-110	25	34	50	70	110	45	48
SK50-HYG32-110	32	42	56	80	110	50	55

High precision 0.003mm
Better anti-vibration result
High precision machining
