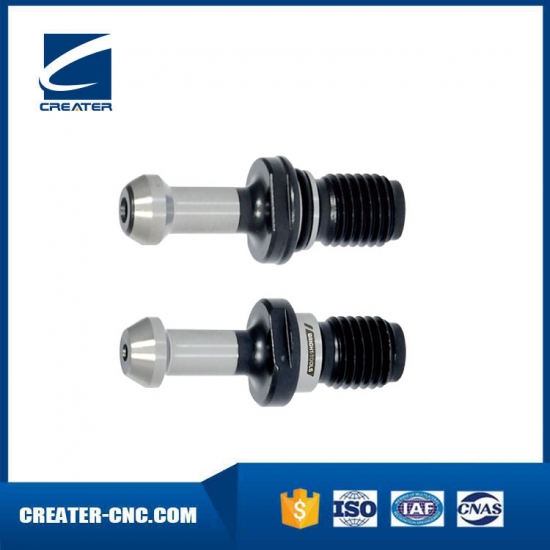

BT Pull Stud
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5 Days |
- Specification

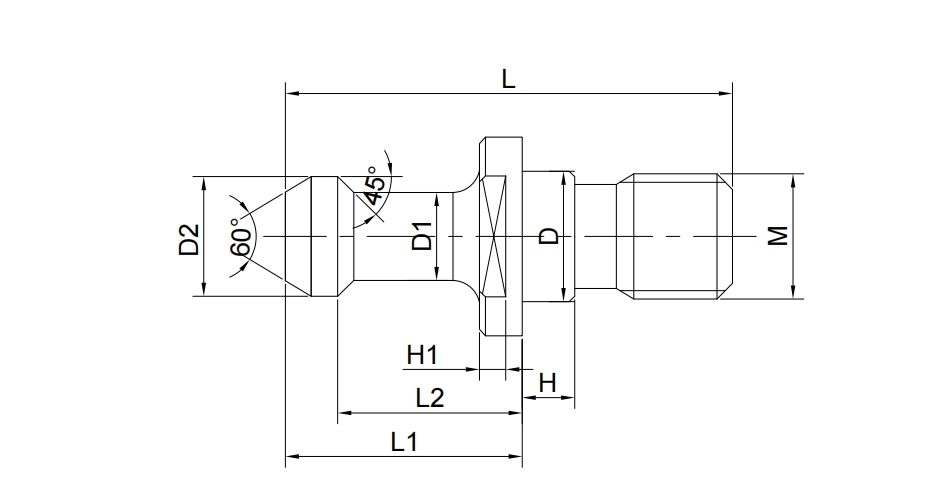

- Simple figure
- Precautions
BT30 BT40 BT50 Pull Studs
Material: 20CrMnTi
Angle: 45deg, 60deg, 90 deg
| Size | D | D1 | D2 | M | L | L1 | L2 | H | H1 | Ø |
| BT30-45 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 45 |
| BT30-60 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 60 |
| BT30-90 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 90 |
| BT40-45 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 45 |
| BT40-60 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 60 |
| BT40-90 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 90 |
| BT50-45 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 45 |
| BT50-60 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 60 |
| BT50-90 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 90 |
| BT30C-45 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 45 |
| BT30C-60 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 60 |
| BT30C-90 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 90 |
| BT40C-45 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 45 |
| BT40C-60 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 60 |
| BT40C-90 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 90 |
| BT50C-45 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 45 |
| BT50C-60 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 60 |
| BT50C-90 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 90 |
| BT30CO-45 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 45 |
| BT30CO-60 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 60 |
| BT30CO-90 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 4 | 3.5 | 90 |
| BT40CO-45 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 45 |
| BT40CO-60 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 60 |
| BT40CO-90 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 5 | 4 | 90 |
| BT50CO-45 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 45 |
| BT50CO-60 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 60 |
| BT50CO-90 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 8 | 8 | 90 |
Standard is not through hole and without O-ring
If you want to order through hole pull studs, or with O-ring, please explain us when you send us the order. Thank you.
