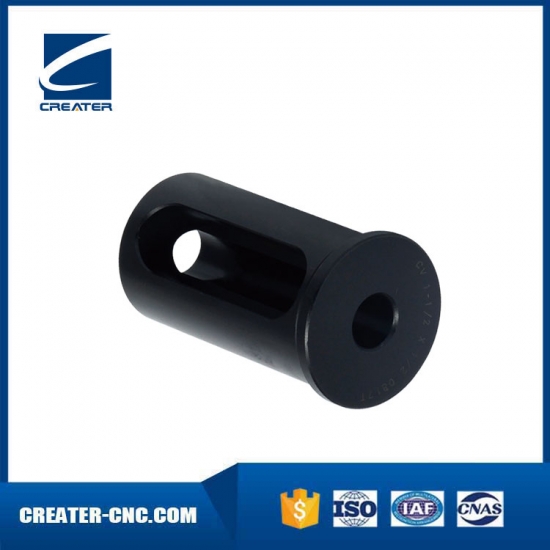

CV Bushing
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification

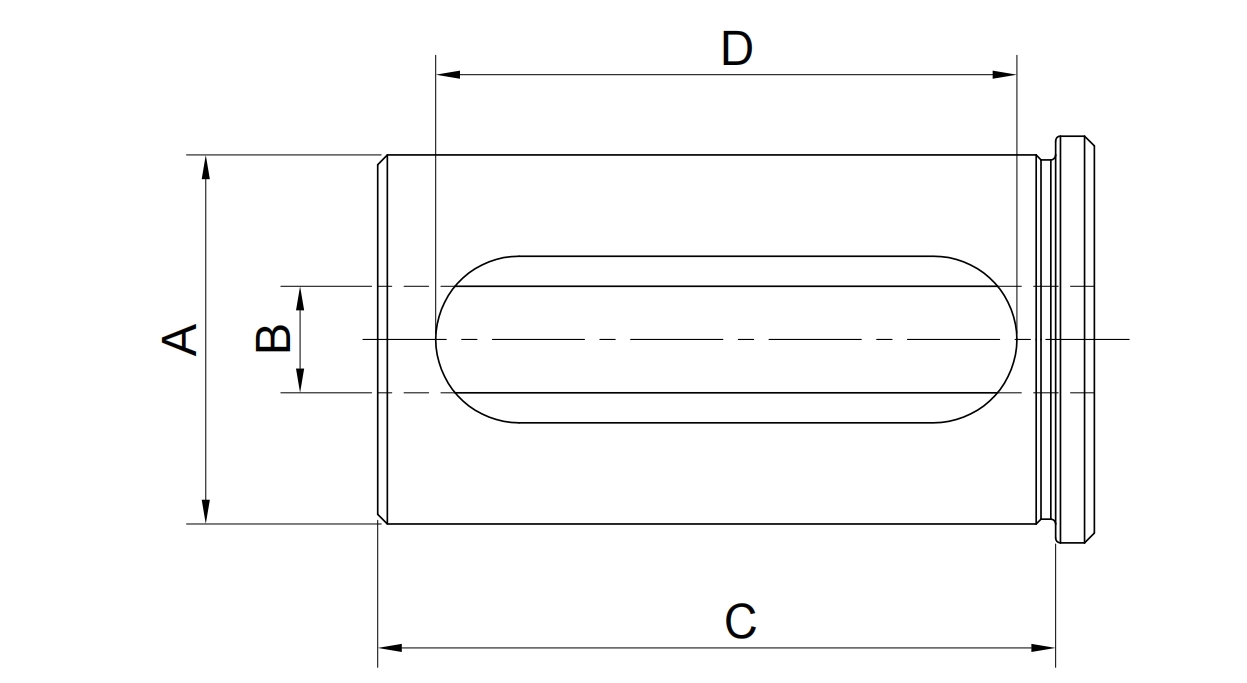

- Simple figure
- Precautions
Inch VDI Bushing
CV type
| Size | A(OD) | B(ID) | C | D |
| CV 1-1/4"-1/4 | 1-1/4" | 1/4 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-3/8 | 1-1/4" | 3/8 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-1/2 | 1-1/4" | 1/2 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-5/8 | 1-1/4" | 5/8 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-3/4 | 1-1/4" | 3/4 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-7/8 | 1-1/4" | 7/8 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/4"-1 | 1-1/4" | 1 | 2.36(60mm) | 1.97(50mm) |
| CV 1-1/2"-1/4 | 1-1/2" | 1/4 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-3/8 | 1-1/2" | 3/8 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-1/2 | 1-1/2" | 1/2 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-5/8 | 1-1/2" | 5/8 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-3/4 | 1-1/2" | 3/4 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-7/8 | 1-1/2" | 7/8 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-1 | 1-1/2" | 1 | 2.76(70mm) | 2.36(60mm) |
| CV 1-1/2"-1-1/4 | 1-1/2" | 1-1/4 | 2.76(70mm) | 2.36(60mm) |
