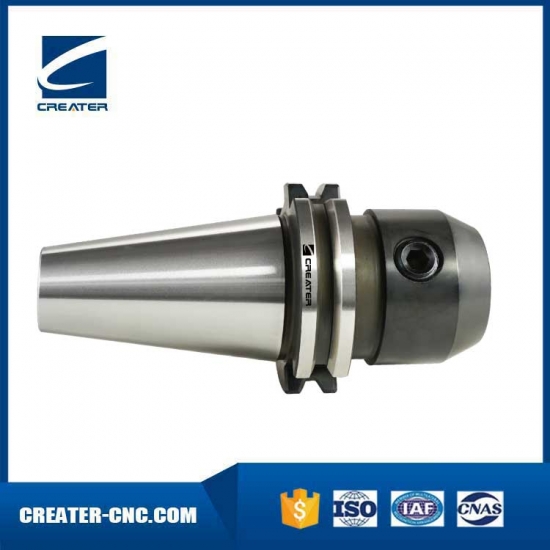

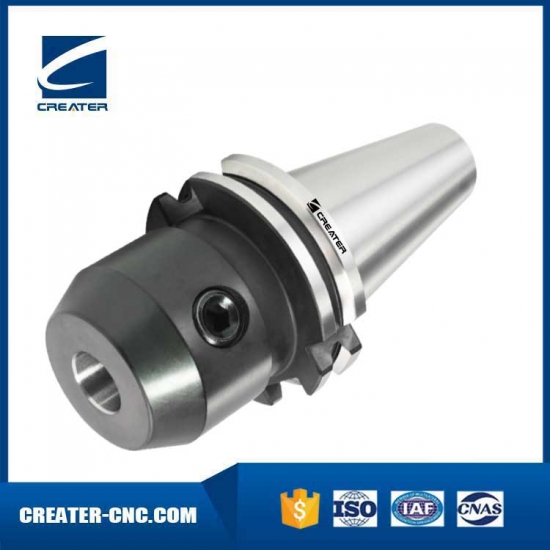

DIN 69871 SK Power Milling Chuck
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

End Mill Holder Whistle Notch

SK-SLA End mill holders hold cutting tools with more rigidity than collets. Available in Weldon type for using tools with Weldon flats.

Easy to use for clamping tools and disassemble tools.

This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet.

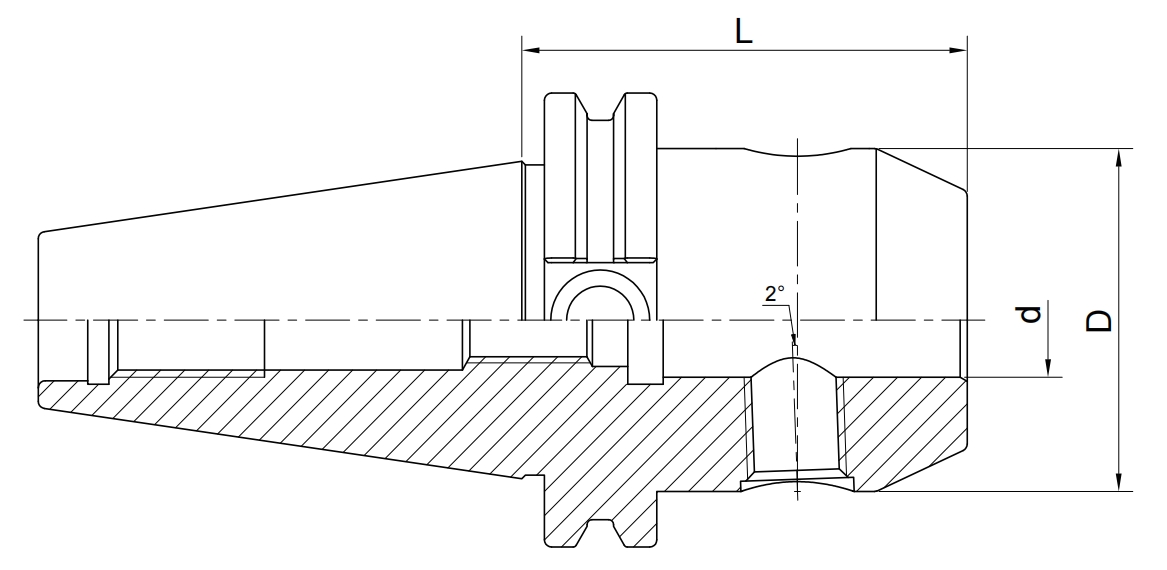

Size d D L M Screw Quantity
SK40-SLB06-50 6 25 50 M6 1
SK40-SLB08-50 8 28 50 M8 1
SK40-SLB10-50 10 35 50 M10 1
SK40-SLB12-50 12 42 50 M12 1
SK40-SLB14-50 14 44 50 M12 1
SK40-SLB16-63 16 48 63 M14 1
SK40-SLB18-63 18 50 63 M14 1
SK40-SLB20-63 20 52 63 M16 1
SK40-SLB25-100 25 65 100 M18*2 2
SK40-SLB32-100 32 72 100 M20*2 2
SK40-SLB40-120 40 80 120 M20*2 2
SK50-SLB06-63 6 25 63 M6 1
SK50-SLB08-63 8 28 63 M8 1
SK50-SLB10-63 10 35 63 M10 1
SK50-SLB12-63 12 42 63 M12 1
SK50-SLB14-63 14 44 63 M12 1
SK50-SLB16-63 16 48 63 M14 1
SK50-SLB18-63 18 50 63 M14 1
SK50-SLB20-63 20 52 63 M16 1
SK50-SLB25-80 25 65 80 M18*2 2
SK50-SLB32-100 32 72 100 M20*2 2
SK50-SLB40-100 40 80 100 M20*2 2
SK50-SLB50-125 50 100 125 m24*2 2
