HSK-T Turning Tool SCLCR | SCLCL 95°/80°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

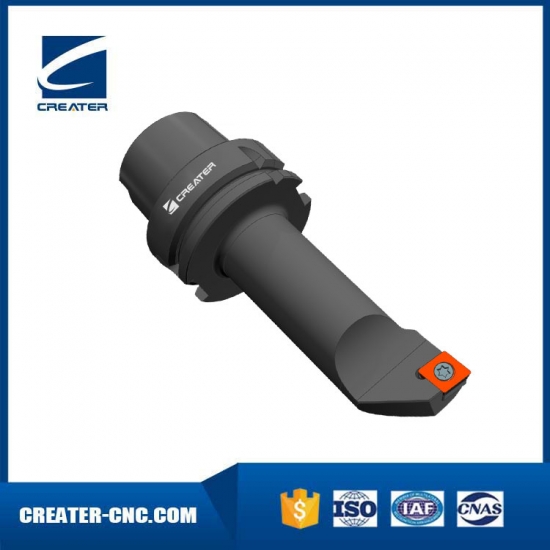

HSK63T and HSK100T External Tool Holder for CC Style Positive Inserts
Screw clamping
Suitable for CC..1204 inserts
Insert clamping system: S
Insert shape code: C
Tool cutting edge angle code: L
Insert clearance angle: C
Direction of cutting code: R and L
Tool cutting edge angle: 95 deg.

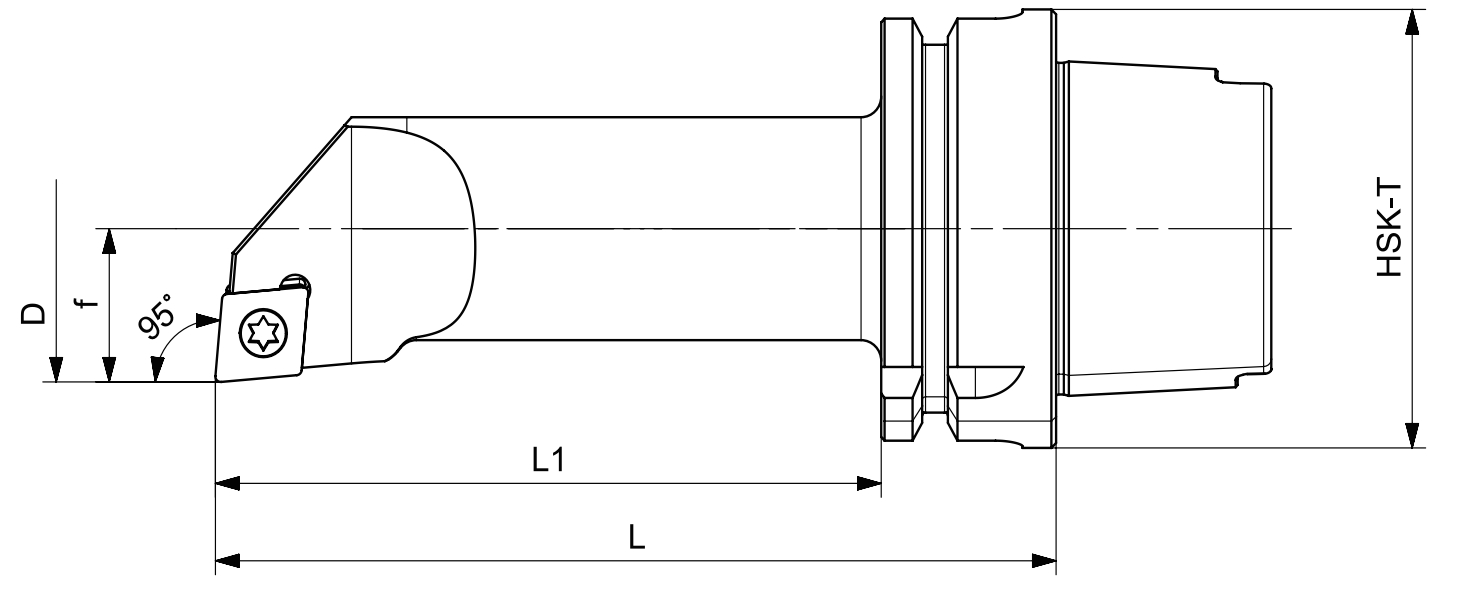

| Size | f | D | L | L1 | Direction | Inserts N. |
| HSK63T-SCLCR-22125-12 | 22 | 40 | 125 | 99 | R | CC..1204.. |
| HSK63T-SCLCL-22125-12 | 22 | 40 | 125 | 99 | L | CC..1204.. |
| HSK63T-SCLCR-22160-12 | 22 | 40 | 160 | 134 | R | CC..1204.. |
| HSK63T-SCLCL-22160-12 | 22 | 40 | 160 | 134 | L | CC..1204.. |
| HSK63T-SCLCR-27140-12 | 27 | 50 | 140 | 114 | R | CC..1204.. |
| HSK63T-SCLCL-27140-12 | 27 | 50 | 140 | 114 | L | CC..1204.. |
| HSK63T-SCLCR-27180-12 | 27 | 50 | 180 | 154 | R | CC..1204.. |
| HSK63T-SCLCL-27180-12 | 27 | 50 | 180 | 154 | L | CC..1204.. |
