DIN 69871 SK Tool Holder Adatper Sleeve
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

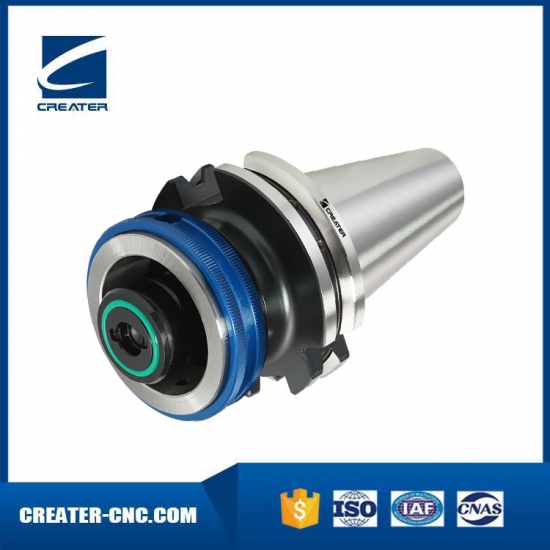

Tool Holder Adapter Sleeve NEW
Copy spindle connection, stronger rigidity and higher precision.
1) Can be used for tool setting instrument
2) Can be used as a fixture, quick clamping improves efficiency.
3) It can be applied to non-standard tool processing to save costs.

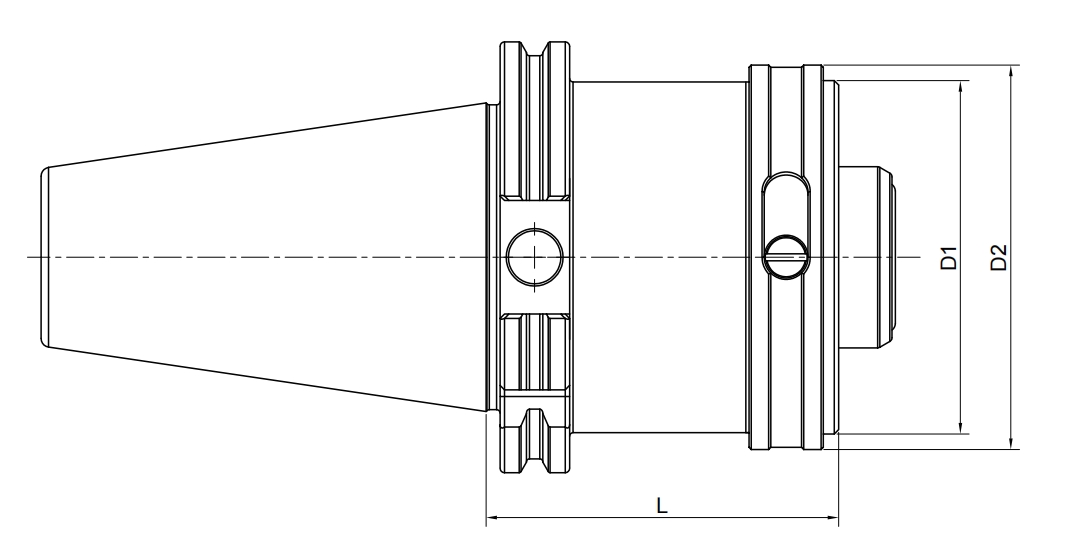

| Size | D1 | D2 | L |
| SK30-HSK32C-40 | 32 | 37 | 40 |
| SK30-HSK40C-60 | 40 | 45 | 60 |
| SK40-HSK32C-40 | 32 | 37 | 40 |
| SK40-HSK40C-40 | 40 | 45 | 40 |
| SK40-HSK50C-60 | 50 | 55 | 60 |
| SK40-HSK63C-75 | 63 | 70 | 75 |
| SK50-HSK32C-40 | 32 | 37 | 40 |
| SK50-HSK40C-40 | 40 | 45 | 40 |
| SK50-HSK50C-40 | 50 | 55 | 40 |
| SK50-HSK63C-40 | 63 | 70 | 40 |
| SK50-HSK80C-80 | 80 | 87 | 80 |
| SK50-HSK100C-95 | 100 | 110 | 95 |
