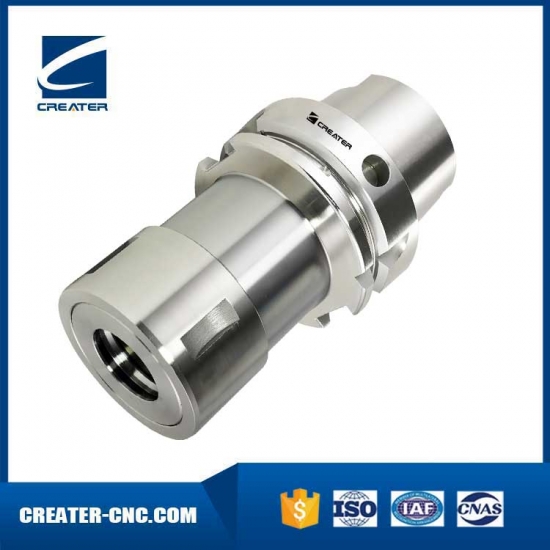

DIN 69893 TG Collet Chuck
contact now
| Brand: | creater |
|---|
- Specification

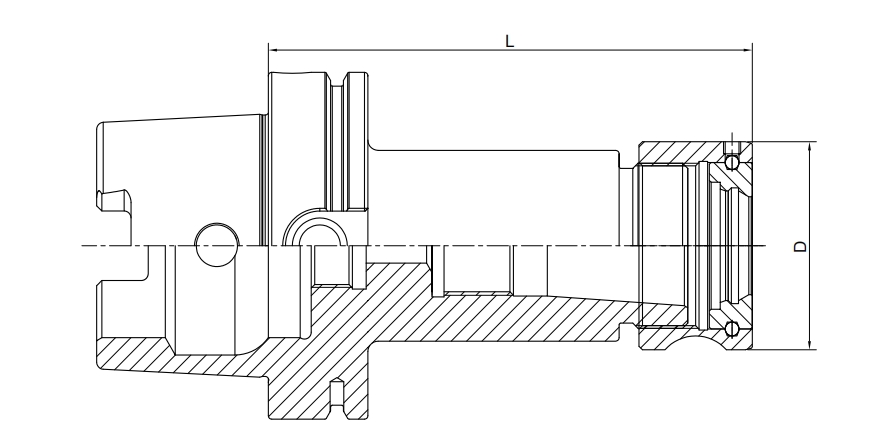

- Simple figure
- Precautions
HSK-TG Collet chuck, Nut with steel ball increase the holding power by 75%, can be used for heavy-duty processing
Size
D
L
Collet
Capacity
HSK50A-TG75-110
50
110
TG 75
2-20
HSK63A-TG75-120
50
120
TG 75
2-20
HSK63A-TG100-130
60
130
TG 100
3-25
HSK100A-TG75-120
50
120
TG 100
3-20
HSK100A-TG100-130
60
130
TG 100
3-25
