Quick Change Tapping Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-45 Days |
| Payment: | TT Payment |
- Specification
- Simple figure
- Precautions

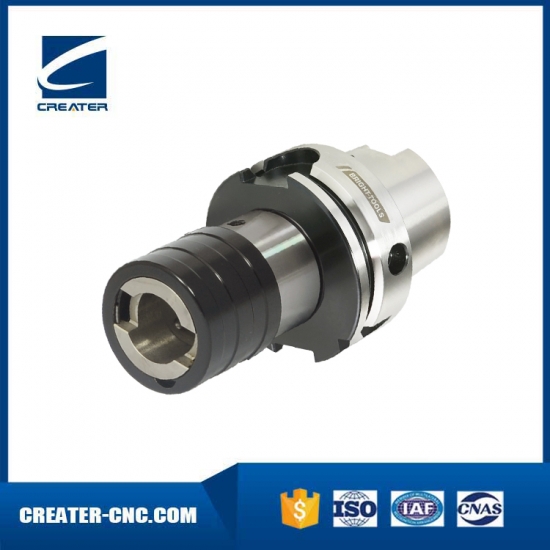

Quick Change Tapping Chuck with length Compensation
Taper: AT3
Taper Standard: DIN69893
Accuracy: 0.005mm
Coolant: A Type inner coolant

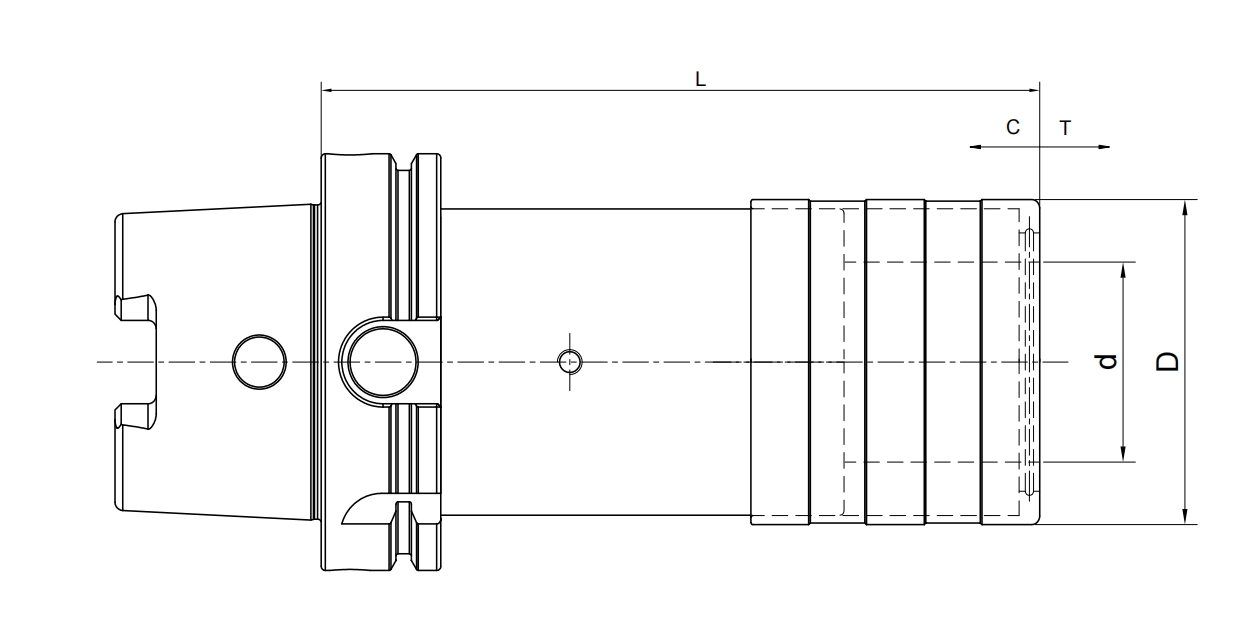

| Size | d | D | L | T | C |
| HSK63A-TC312-102 | 19 | 36 | 102 | 7.5 | 7.5 |
| HSK63A-TC820-140 | 31 | 53 | 140 | 12.5 | 12.5 |
| HSK63A-TC1433-210 | 48 | 78 | 210 | 22 | 22 |
| HSK100A-TC312-112 | 19 | 36 | 112 | 7.5 | 7.5 |
| HSK100A-TC820-148 | 31 | 53 | 148 | 12.5 | 12.5 |
| HSK100A-TC1433-144 | 48 | 78 | 144 | 22 | 22 |
