Cuting Off Tool Holder Form AR
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-40 Days |
| Payment: | TT in Advance |
- Specification

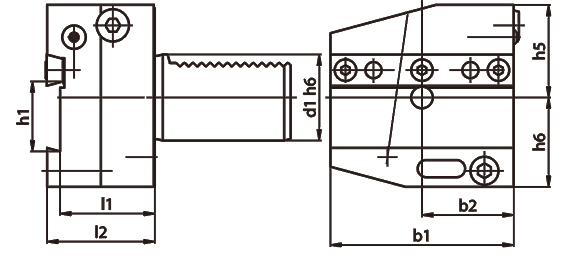

- Simple figure
- Precautions

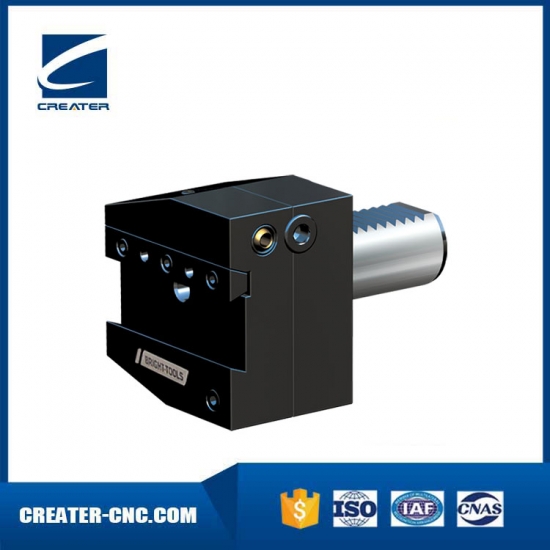

VDI Cuting Off Tool Holder, Right Height Adjustable Form AR
VDI Tool Holder Form AR is for Cutting Off Tools; VDI Tool Holder is manufactured by DIN 69880 standard with sizes as VDI20, VDI30, VDI40, VDI50 and VDI60.
| Size | d1 | b1 | b2 | h1 | h5 | h6 | l1 | l2 |
| AR2026 | 20 | 60 | 30 | 26 | 28 | 36 | 44 | 50 |
| AR2526 | 25 | 60 | 30 | 26 | 28 | 36 | 44 | 50 |
| AR3026 | 30 | 70 | 35 | 26 | 32 | 39 | 44 | 50 |
| AR4026 | 40 | 85 | 42.5 | 26 | 43 | 41.5 | 44 | 50 |
| AR4032 | 40 | 85 | 42.5 | 32 | 43 | 41.5 | 44 | 50 |
| AR5026 | 50 | 100 | 50 | 26 | 43 | 45 | 44 | 50 |
| AR5032 | 50 | 100 | 50 | 32 | 43 | 45 | 44 | 50 |
| AR6032 | 60 | 125 | 62.5 | 32 | 48 | 55 | 44 | 50 |
