Alignment Tool for ATC Arm
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | FOB Qingdao |
| Color: | Blackening |
| Lead Time: | 5-45 Days |
| Payment: | TT Payment in Advance |
- Specification

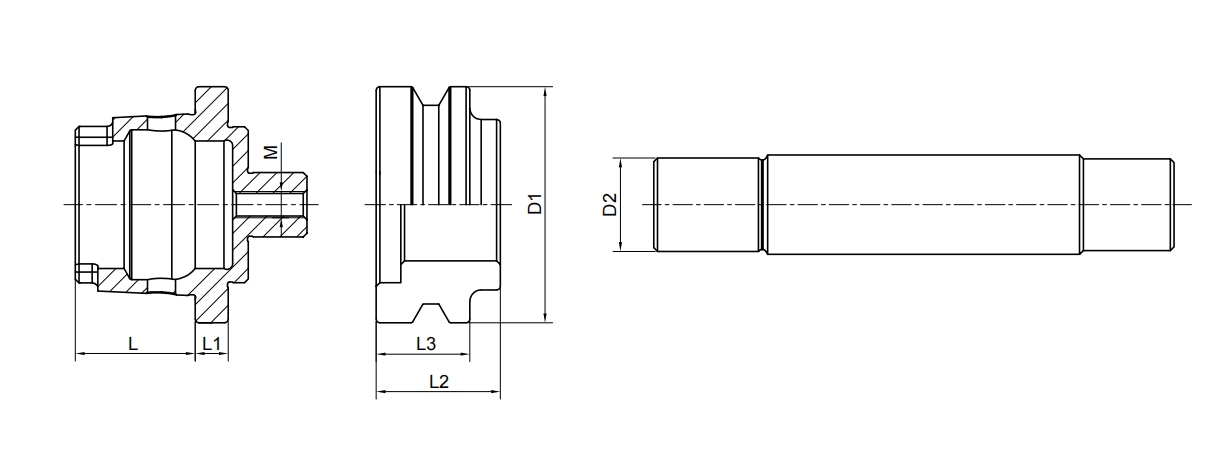

- Simple figure
- Precautions

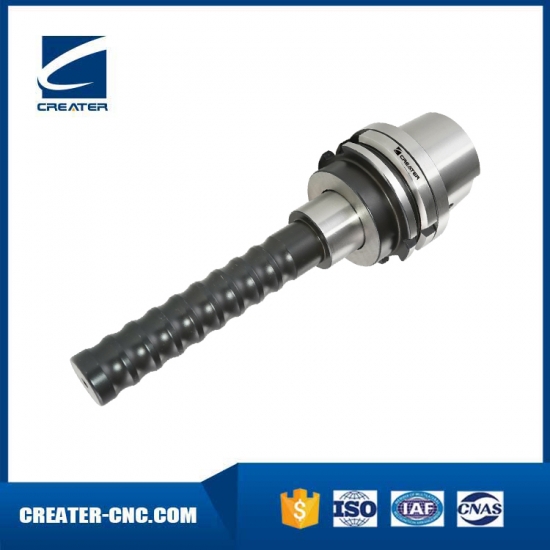

Alignment Tool for ATC Arm
Usage:
1) Put the Taper to the machine Spindle
2) Install flange to the ATC arm
3) Insert Pin into the flange
4) Adjust ATC arm and make sure the pin front part into the flange completely.
| Size | D | D1 | D2 | L | L1 | L2 | L3 | M |
| HSK50A-ATC-25D | - | 50 | 25 | 25 | 8 | 22 | 18 | M6 |
| HSK63A-ATC-30D | - | 63 | 30 | 32 | 8 | 30 | 18 | M8 |
| HSK80A-ATC-35D | - | 80 | 35 | 40 | 8 | 36 | 18 | M10 |
| HSK100A-ATC-40D | - | 100 | 40 | 50 | 10 | 45 | 19 | M10 |
Previous :HSK-A Shrink Chuck Taper
