Products
OZ Collet Chuck DIN6391
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | qingdao |
| Lead Time: | 20-30days |
- Specification

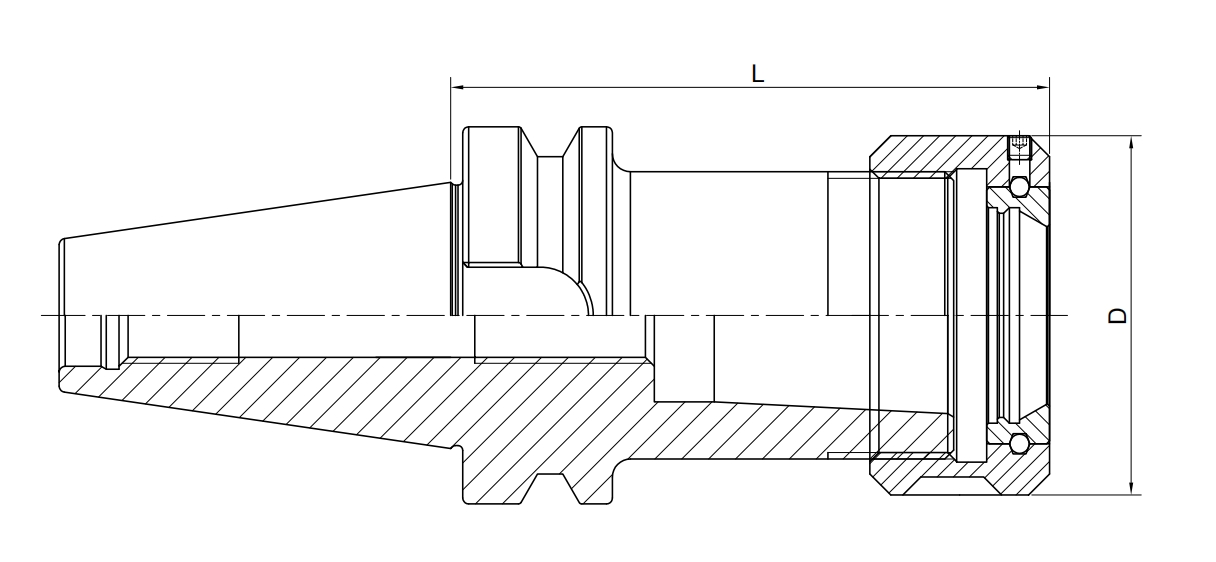

- Simple figure
- Precautions

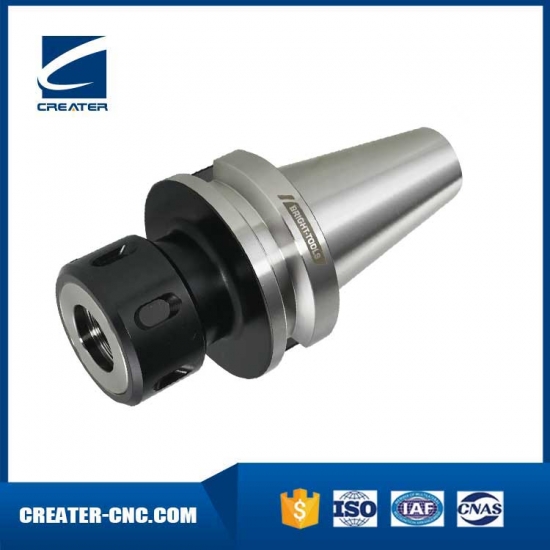

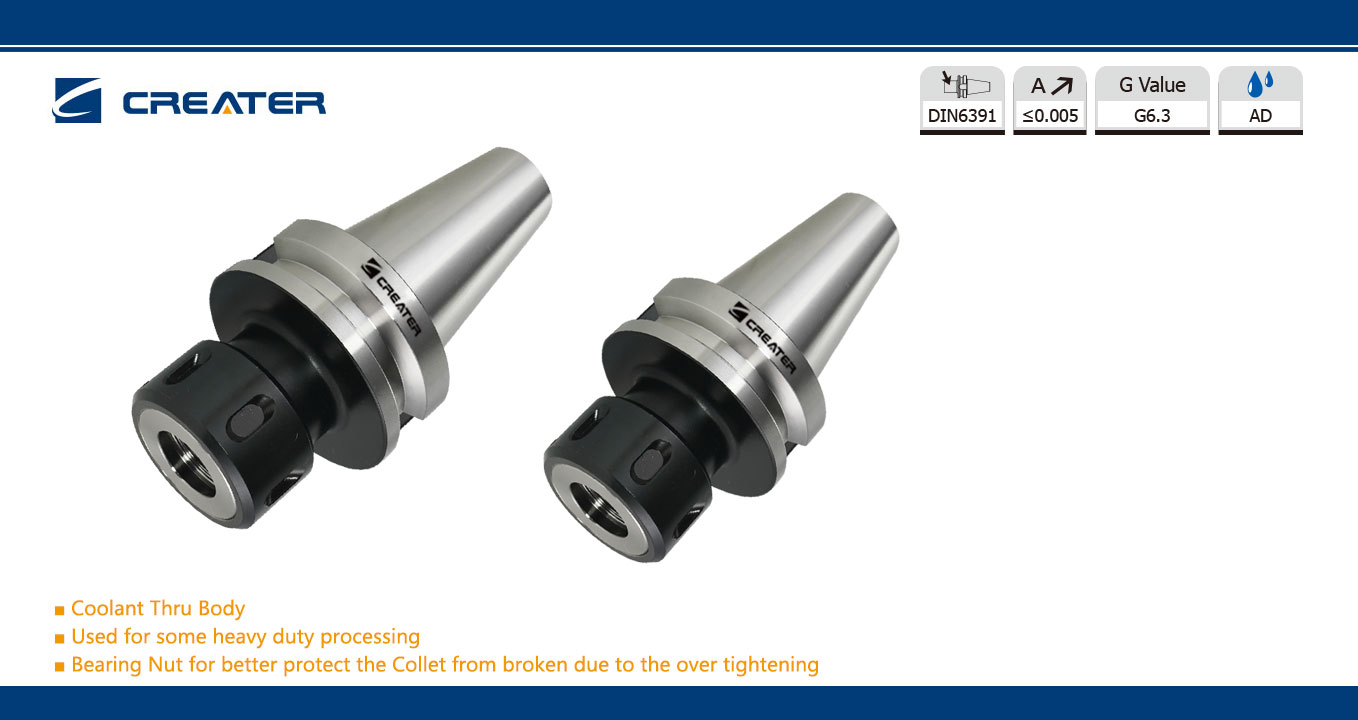

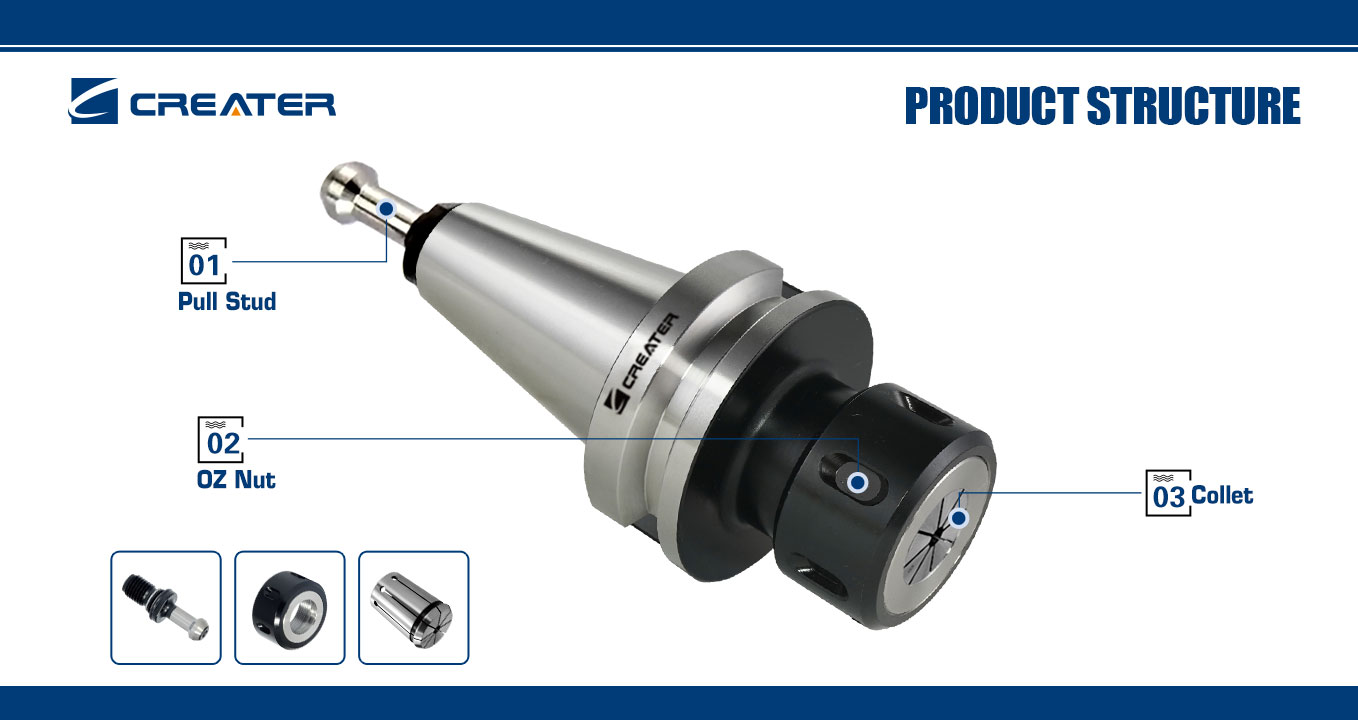

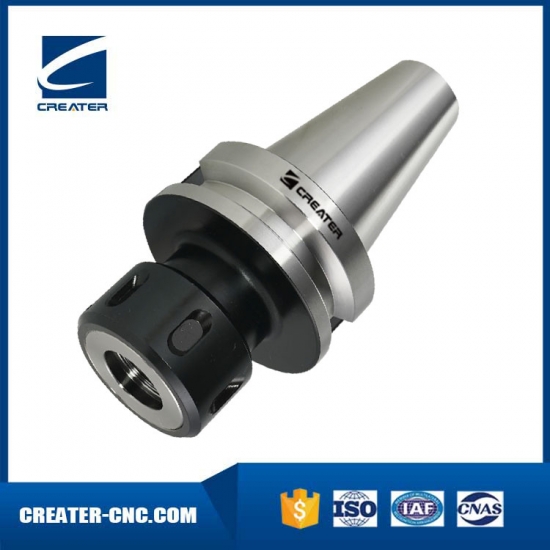

OZ Collet Chuck DIN6391
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893
| Size | D | L | Capacity |
| BT30-OZ16-70 | 43 | 70 | 3-16 |
| BT30-OZ25-80 | 60 | 80 | 3-25 |
| BT40-OZ16-70 | 43 | 70 | 3-16 |
| BT40-OZ25-70 | 60 | 70 | 3-25 |
| BT40-OZ32-80 | 72 | 80 | 6-32 |
| BT50-OZ25-85 | 60 | 85 | 3-25 |
| BT50-OZ32-90 | 72 | 90 | 6-32 |
Previous :BT Drill Chuck Arbor
