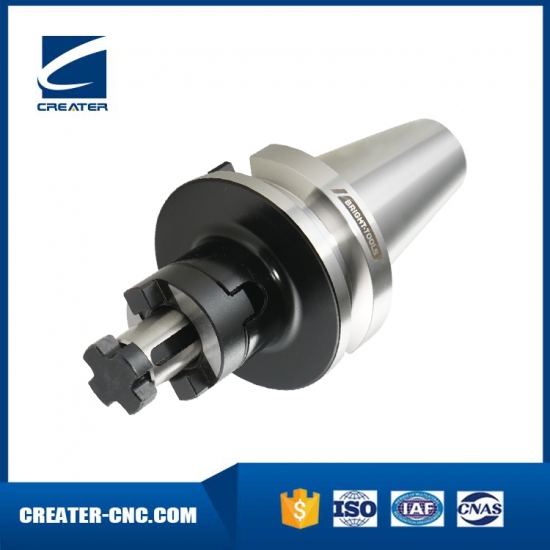

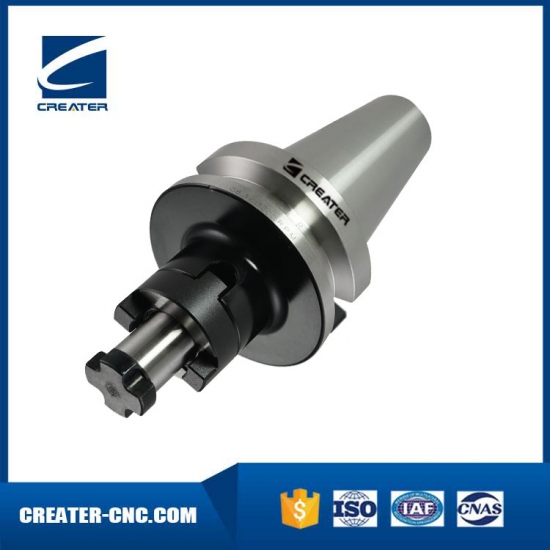

Combi Shell Mill holder DIN6358
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893

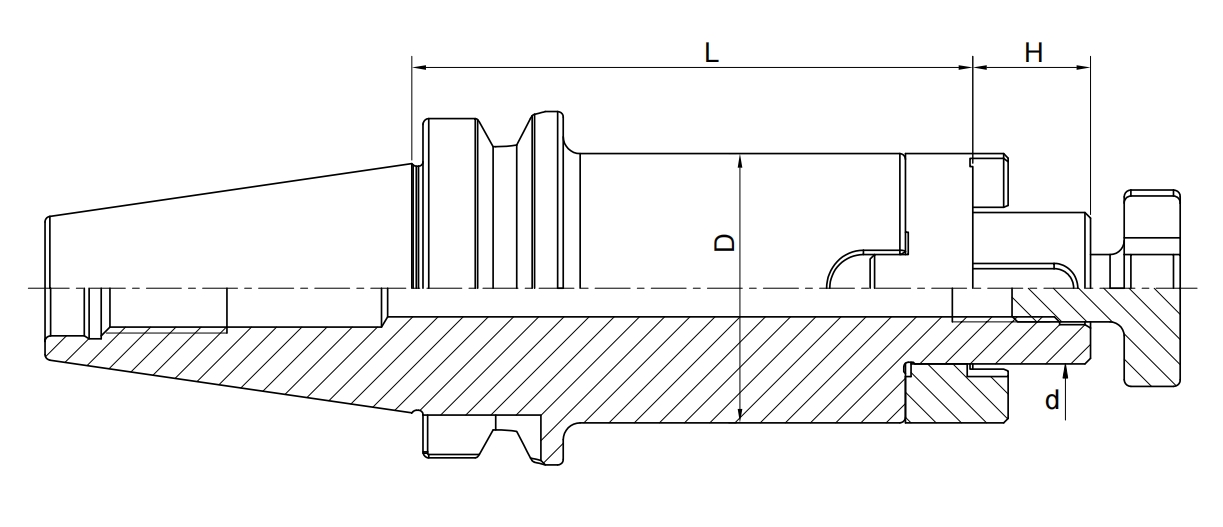

| Size | d | D | H | L |
| BT40-SEMC16-55 | 16 | 32 | 17 | 55 |
| BT40-SEMC22-55 | 22 | 40 | 19 | 55 |
| BT40-SEMC27-55 | 27 | 48 | 21 | 55 |
| BT40-SEMC32-60 | 32 | 58 | 24 | 60 |
| BT40-SEMC40-60 | 40 | 70 | 27 | 60 |
| BT40-SEMC16-100 | 16 | 32 | 17 | 100 |
| BT40-SEMC22-100 | 22 | 40 | 19 | 100 |
| BT40-SEMC27-100 | 27 | 48 | 21 | 100 |
| BT40-SEMC32-100 | 32 | 58 | 24 | 100 |
| BT40-SEMC40-100 | 40 | 70 | 27 | 100 |
| BT40-SEMC16-160 | 16 | 32 | 17 | 160 |
| BT40-SEMC22-160 | 22 | 40 | 19 | 160 |
| BT40-SEMC27-160 | 27 | 48 | 21 | 160 |
| BT40-SEMC32-160 | 32 | 58 | 24 | 160 |
| BT40-SEMC40-160 | 40 | 70 | 27 | 160 |
| BT50-SEMC16-70 | 16 | 32 | 17 | 70 |
| BT50-SEMC22-70 | 22 | 40 | 19 | 70 |
| BT50-SEMC27-70 | 27 | 48 | 21 | 70 |
| BT50-SEMC32-70 | 32 | 58 | 24 | 70 |
| BT50-SEMC40-70 | 40 | 70 | 27 | 70 |
| BT50-SEMC16-100 | 16 | 32 | 17 | 100 |
| BT50-SEMC22-100 | 22 | 40 | 19 | 100 |
| BT50-SEMC27-100 | 27 | 48 | 21 | 100 |
| BT50-SEMC32-100 | 32 | 58 | 24 | 100 |
| BT50-SEMC40-100 | 40 | 70 | 27 | 100 |
| BT50-SEMC16-160 | 16 | 32 | 17 | 160 |
| BT50-SEMC22-160 | 22 | 40 | 19 | 160 |
| BT50-SEMC27-160 | 27 | 48 | 21 | 160 |
| BT50-SEMC32-160 | 32 | 58 | 24 | 160 |
| BT50-SEMC40-160 | 40 | 70 | 27 | 160 |
