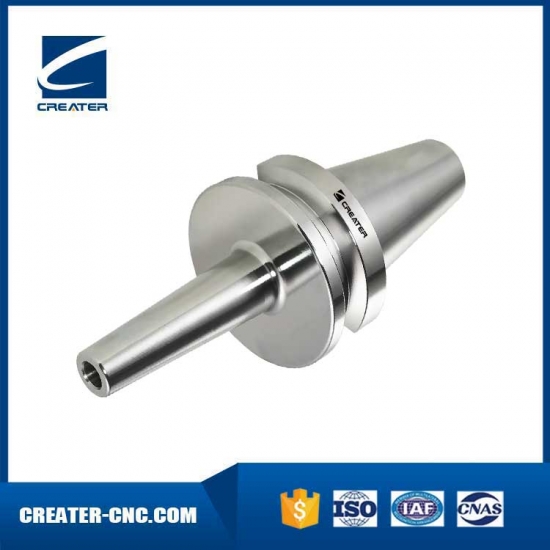

MAS403 BT Shrink Fit Chuck, Slim, 3°
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification

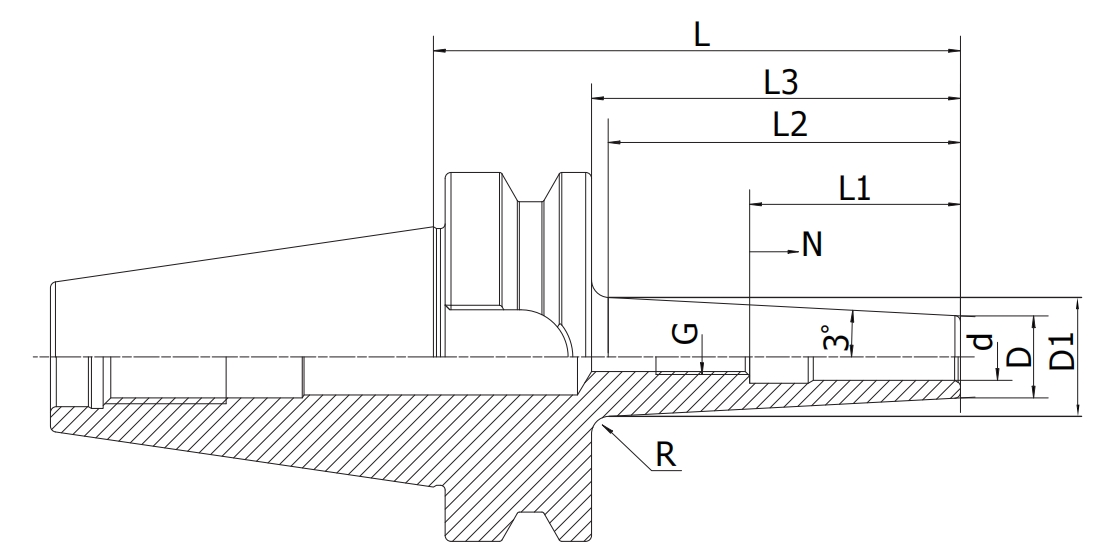

- Simple figure
- Precautions
Shrink Chuck
7:24 Taper:AT3
Accuracy: 0.003mm
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK6989
| Size | d | D | D1 | L | L3 | L2 | L1 | N | G | R |
| BT30-SFS03-80 | 3 | 9 | 14.8 | 80 | 58 | 55.2 | - | - | - | 3 |
| BT30-SFS04-80 | 4 | 10 | 15.8 | 80 | 58 | 55.2 | - | - | - | 3 |
| BT30-SFS06-80 | 6 | 12 | 17.8 | 80 | 58 | 55.2 | 36 | 10 | M5 | 3 |
| BT30-SFS08-80 | 8 | 14 | 19.8 | 80 | 58 | 55.2 | 36 | 10 | M6 | 3 |
| BT30-SFS10-80 | 10 | 16 | 21.8 | 80 | 58 | 55.2 | 42 | 10 | M8x1 | 3 |
| BT30-SFS12-80 | 12 | 18 | 23.8 | 80 | 58 | 55.2 | 47 | 10 | M10x1 | 3 |
| BT30-SFS16-80 | 16 | 22 | 27.8 | 80 | 58 | 55.2 | 50 | 10 | M12x1 | 3 |
| BT40-SFS03-90 | 3 | 9 | 15.3 | 90 | 63 | 60.2 | - | - | - | 3 |
| BT40-SFS04-90 | 4 | 10 | 16.3 | 90 | 63 | 60.2 | - | - | - | 3 |
| BT40-SFS06-90 | 6 | 12 | 18.3 | 90 | 63 | 60.2 | 36 | 10 | M5 | 3 |
| BT40-SFS08-90 | 8 | 14 | 20.3 | 90 | 63 | 60.2 | 36 | 10 | M6 | 3 |
| BT40-SFS10-90 | 10 | 16 | 22.3 | 90 | 63 | 60.2 | 42 | 10 | M8x1 | 3 |
| BT40-SFS12-90 | 12 | 18 | 24.3 | 90 | 63 | 60.2 | 47 | 10 | M10x1 | 3 |
| BT40-SFS16-90 | 16 | 22 | 28.3 | 90 | 63 | 60.2 | 50 | 10 | M12x1 | 3 |
| BT40-SFS03-120 | 3 | 9 | 18.3 | 120 | 93 | 88.3 | - | - | - | 5 |
| BT40-SFS04-120 | 4 | 10 | 19.3 | 120 | 93 | 88.3 | - | - | - | 5 |
| BT40-SFS06-120 | 6 | 12 | 21.3 | 120 | 93 | 88.3 | 36 | 10 | M5 | 5 |
| BT40-SFS08-120 | 8 | 14 | 23.3 | 120 | 93 | 88.3 | 36 | 10 | M6 | 5 |
| BT40-SFS10-120 | 10 | 16 | 25.3 | 120 | 93 | 88.3 | 42 | 10 | M8x1 | 5 |
| BT40-SFS12-120 | 12 | 18 | 27.3 | 120 | 93 | 88.3 | 47 | 10 | M10x1 | 5 |
| BT40-SFS16-120 | 16 | 22 | 31.3 | 120 | 93 | 88.3 | 50 | 10 | M12x1 | 5 |
| BT40-SFS03-160 | 3 | 9 | 22.4 | 160 | 133 | 128.3 | - | - | - | 5 |
| BT40-SFS04-160 | 4 | 10 | 23.4 | 160 | 133 | 128.3 | - | - | - | 5 |
| BT40-SFS06-160 | 6 | 12 | 25.4 | 160 | 133 | 128.3 | 36 | 10 | M5 | 5 |
| BT40-SFS08-160 | 8 | 14 | 27.4 | 160 | 133 | 128.3 | 36 | 10 | M6 | 5 |
| BT40-SFS10-160 | 10 | 16 | 29.4 | 160 | 133 | 128.3 | 42 | 10 | M8x1 | 5 |
| BT40-SFS12-160 | 12 | 18 | 31.4 | 160 | 133 | 128.3 | 47 | 10 | M10x1 | 5 |
| BT40-SFS16-160 | 16 | 22 | 35.4 | 160 | 133 | 128.3 | 50 | 10 | M12x1 | 5 |
| BT40-SFS20-160 | 20 | 27 | 40.4 | 160 | 133 | 128.3 | 52 | 10 | M16x1 | 5 |
