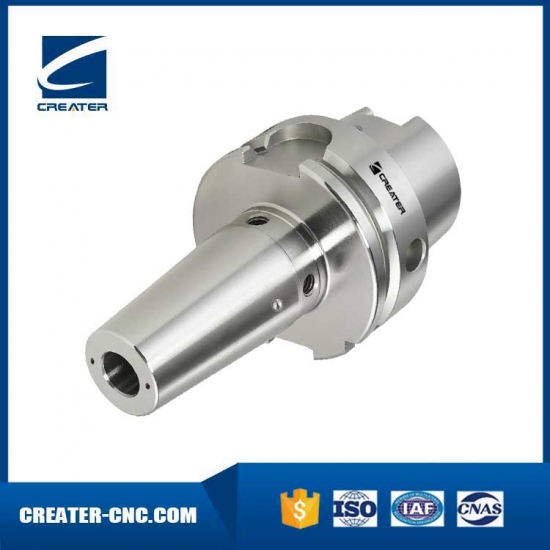

Shrink Fit Chuck Tool Holder
Runout: 0.003 mm
Balancing: G2.5/25000 RPM
Usage: Used with induction shrink machine for mounting straight shank cutting tools.

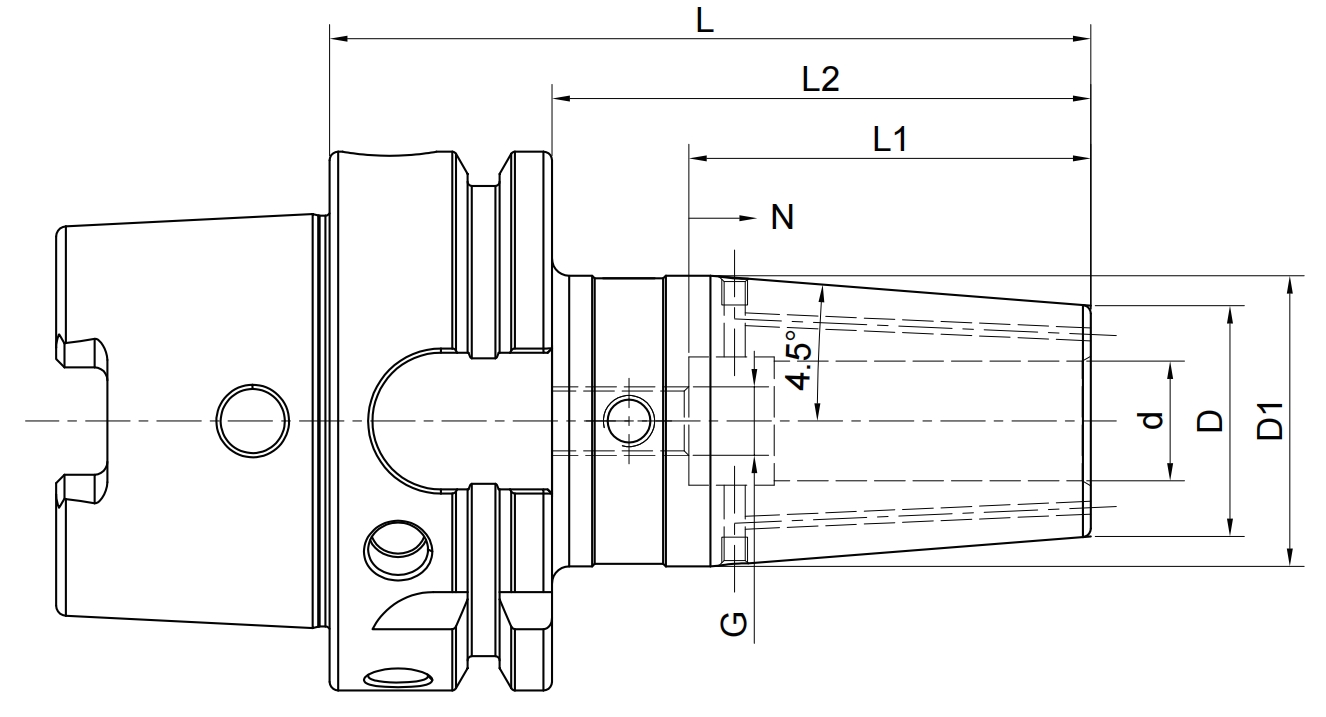

Size
d
D
D1
L
L2
L1
N
G
HSK32A-SF03-65
3
15
20
65
45
-
-
-
HSK32A-SF04-65
4
15
20
65
45
-
-
-
HSK32A-SF05-65
5
15
20
65
45
-
-
-
HSK32A-SF06-75
6
21
26
75
55
36
10
M5
HSK32A-SF08-75
8
21
26
75
55
36
10
M6
HSK32A-SF10-75
10
24
29
75
55
42
10
M8x1
HSK32A-SF12-80
12
24
29
80
60
47
5
M10x1
HSK40A-SF03-60
3
15
20
60
40
-
-
-
HSK40A-SF04-60
4
15
20
60
40
-
-
-
HSK40A-SF05-60
5
15
20
60
40
-
-
-
HSK40A-SF06-80
6
21
27
80
60
36
10
M5
HSK40A-SF08-80
8
21
27
80
60
36
10
M6
HSK40A-SF10-80
10
24
32
80
60
42
10
M8x1
HSK40A-SF12-90
12
24
32
90
70
47
10
M10x1
HSK40A-SF14-90
14
27
34
90
70
47
10
M10x1
HSK40A-SF16-90
16
27
34
90
70
50
10
M12x1
HSK50A-SF03-80
3
15
20
80
54
-
-
-
HSK50A-SF04-80
4
15
20
80
54
-
-
-
HSK50A-SF05-80
5
15
20
80
54
-
-
-
HSK50A-SF06-80
6
21
27
80
54
36
10
M5
HSK50A-SF08-80
8
21
27
80
54
36
10
M6
HSK50A-SF10-85
10
24
32
85
59
42
10
M8x1
HSK50A-SF12-90
12
24
32
90
64
47
10
M10x1
HSK50A-SF14-90
14
27
34
90
64
47
10
M10x1
HSK50A-SF16-95
16
27
34
95
69
50
10
M12x1
HSK50A-SF18-95
18
33
42
95
69
50
10
M12x1
HSK50A-SF20-100
20
33
42
100
74
52
10
M16x1
HSK63A-SF03-80
3
15
20
80
54
-
-
-
HSK63A-SF04-80
4
15
20
80
54
-
-
-
HSK63A-SF05-80
5
15
20
80
54
-
-
-
HSK63A-SF06-80
6
21
26.5
80
54
36
10
M5
HSK63A-SF08-80
8
21
26.5
80
54
36
10
M6
HSK63A-SF10-85
10
24
30.5
85
59
42
10
M8x1
HSK63A-SF12-90
12
24
31
90
64
47
10
M10x1
HSK63A-SF14-90
14
27
34
90
64
47
10
M10x1
HSK63A-SF16-95
16
27
34
95
69
50
10
M12x1
HSK63A-SF18-95
18
33
41
95
69
50
10
M12x1
HSK63A-SF20-100
20
33
42
100
74
52
10
M16x1
HSK63A-SF25-115
25
44
52.5
115
89
58
10
M16x1
HSK63A-SF32-120
32
44
52.5
120
94
62
10
M16x1
HSK63A-SF03-120
3
15
20
120
94
-
-
-
HSK63A-SF04-120
4
15
20
120
94
-
-
-
HSK63A-SF05-120
5
15
20
120
94
-
-
-
HSK63A-SF06-120
6
21
27
120
94
36
10
M5
HSK63A-SF08-120
8
21
27
120
94
36
10
M6
HSK63A-SF10-120
10
24
32
120
94
42
10
M8x1
HSK63A-SF12-120
12
24
32
120
94
47
10
M10x1
HSK63A-SF14-120
14
27
34
120
94
47
10
M10x1
HSK63A-SF16-120
16
27
34
120
94
50
10
M12x1
HSK63A-SF18-120
18
33
42
120
94
50
10
M12x1
HSK63A-SF20-120
20
33
42
120
94
52
10
M16x1
HSK63A-SF25-120
25
44
52.5
120
94
58
10
M16x1
HSK63A-SF03-160
3
15
25
160
134
-
-
-
HSK63A-SF04-160
4
15
25
160
134
-
-
-
HSK63A-SF05-160
5
15
25
160
134
-
-
-
HSK63A-SF06-160
6
21
32
160
134
36
10
M5
HSK63A-SF08-160
8
21
32
160
134
36
10
M6
HSK63A-SF10-160
10
24
34
160
134
42
10
M8x1
HSK63A-SF12-160
12
24
34
160
134
47
10
M10x1
HSK63A-SF14-160
14
27
42
160
134
47
10
M10x1
HSK63A-SF16-160
16
27
42
160
134
50
10
M12x1
HSK63A-SF18-160
18
33
51
160
134
50
10
M12x1
HSK63A-SF20-160
20
33
51
160
134
52
10
M16x1
HSK63A-SF25-160
25
44
52.5
160
134
58
10
M16x1
HSK63A-SF32-160
32
44
52.5
160
134
62
10
M16x1
HSK63A-SF06-200
6
21
32
200
174
36
10
M5
HSK63A-SF08-200
8
21
32
200
174
36
10
M6
HSK63A-SF10-200
10
24
34
200
174
42
10
M8x1
HSK63A-SF12-200
12
24
34
200
174
47
10
M10x1
HSK63A-SF14-200
14
27
42
200
174
47
10
M10x1
HSK63A-SF16-200
16
27
42
200
174
50
10
M12x1
HSK63A-SF18-200
18
33
51
200
174
50
10
M12x1
HSK63A-SF20-200
20
33
51
200
174
52
10
M16x1
HSK63A-SF25-200
25
44
52.5
200
174
58
10
M16x1
HSK63A-SF32-200
32
44
52.5
200
174
62
10
M16x1
HSK80A-SF06-85
6
21
27
85
59
36
10
M5
HSK80A-SF08-85
8
21
27
85
59
36
10
M6
HSK80A-SF10-90
10
24
32
90
64
42
10
M8x1
HSK80A-SF12-95
12
24
32
95
69
47
10
M10x1
HSK80A-SF14-95
14
27
34
95
69
47
10
M10x1
HSK80A-SF16-100
16
27
34
100
74
50
10
M12x1
HSK80A-SF18-100
18
33
42
100
74
50
10
M12x1
HSK80A-SF20-105
20
33
42
105
79
52
10
M16x1
HSK80A-SF25-115
25
44
53
115
89
58
10
M16x1
HSK80A-SF32-120
32
44
53
120
94
62
10
M16x1
HSK100A-SF03-85
3
15
20
85
56
-
-
-
HSK100A-SF04-85
4
15
20
85
56
-
-
-
HSK100A-SF05-85
5
15
20
85
56
-
-
-
HSK100A-SF06-85
6
21
26.5
85
56
36
10
M5
HSK100A-SF08-85
8
21
26.5
85
56
36
10
M6
HSK100A-SF10-90
10
24
30.5
90
61
42
10
M8x1
HSK100A-SF12-95
12
24
31
95
66
47
10
M10x1
HSK100A-SF14-95
14
27
34
95
66
47
10
M10x1
HSK100A-SF16-100
16
27
34
100
71
50
10
M12x1
HSK100A-SF18-100
18
33
41
100
71
50
10
M12x1
HSK100A-SF20-105
20
33
42
105
76
52
10
M16x1
HSK100A-SF25-115
25
44
53
115
86
58
10
M16x1
HSK100A-SF32-120
32
44
53
120
91
62
10
M16x1
HSK100A-SF06-120
6
21
27
120
91
36
10
M5
HSK100A-SF08-120
8
21
27
120
91
36
10
M6
HSK100A-SF10-120
10
24
32
120
91
42
10
M8x1
HSK100A-SF12-120
12
24
32
120
91
47
10
M10x1
HSK100A-SF14-120
14
27
34
120
91
47
10
M10x1
HSK100A-SF16-120
16
27
34
120
91
50
10
M12x1
HSK100A-SF18-120
18
33
42
120
91
50
10
M12x1
HSK100A-SF20-120
20
33
42
120
91
52
10
M16x1
HSK100A-SF25-120
25
44
53
120
91
58
10
M16x1
HSK100A-SF06-160
6
21
32
160
131
36
10
M5
HSK100A-SF08-160
8
21
32
160
131
36
10
M6
HSK100A-SF10-160
10
24
34
160
131
42
10
M8x1
HSK100A-SF12-160
12
24
34
160
131
47
10
M10x1
HSK100A-SF14-160
14
27
42
160
131
47
10
M10x1
HSK100A-SF16-160
16
27
42
160
131
50
10
M12x1
HSK100A-SF18-160
18
33
50.5
160
131
50
10
M12x1
HSK100A-SF20-160
20
33
50.5
160
131
52
10
M16x1
HSK100A-SF25-160
25
44
60
160
131
58
10
M16x1
HSK100A-SF32-160
32
44
60
160
131
62
10
M16x1
HSK100A-SF06-200
6
21
32
200
171
36
10
M5
HSK100A-SF08-200
8
21
32
200
171
36
10
M6
HSK100A-SF10-200
10
24
34
200
171
42
10
M8x1
HSK100A-SF12-200
12
24
34
200
171
47
10
M10x1
HSK100A-SF14-200
14
27
42
200
171
47
10
M10x1
HSK100A-SF16-200
16
27
42
200
171
50
10
M12x1
HSK100A-SF18-200
18
33
51
200
171
50
10
M12x1
HSK100A-SF20-200
20
33
51
200
171
52
10
M16x1
HSK100A-SF25-200
25
44
60
200
171
58
10
M16x1
HSK100A-SF32-200
32
44
60
200
171
62
10
M16x1
HSK63A-SF1/8-3.15"
0.125"
0.59"
0.79"
3.15"
2.13"
-
-
-
HSK63A-SF3/16-3.15"
0.187"
0.59"
0.79"
3.15"
2.13"
-
-
-
HSK63A-SF1/4-3.15"
0.250"
0.83"
1.06"
3.15"
2.13"
1.42"
0.39"
M5
HSK63A-SF5/16-3.15"
0.312"
0.83"
1.06"
3.15"
2.13"
1.42"
0.39"
M6
HSK63A-SF3/8-3.35"
0.375"
0.94"
1.26"
3.35"
2.32"
1.65"
0.39"
M8x1
HSK63A-SF1/2-3.54"
0.500"
1.06"
1.34"
3.54"
2.52"
1.85"
0.39"
M10x1
HSK63A-SF5/8-3.74"
0.625"
1.06"
1.34"
3.74"
2.72"
1.97"
0.39"
M12x1
HSK63A-SF3/4-3.94"
0.750"
1.30"
1.65"
3.94"
2.91"
2.05"
0.39"
M16x1
HSK63A-SF1"-4.53"
1.000"
1.73"
2.07"
4.53"
3.50"
2.44"
0.39"
M16x1
HSK63A-SF1/8-4.72"
0.125"
0.59"
0.79"
4.72"
3.70"
-
-
-
HSK63A-SF3/16-4.72"
0.187"
0.59"
0.79"
4.72"
3.70"
-
-
-
HSK63A-SF1/4-4.72"
0.250"
0.83"
1.06"
4.72"
3.70"
1.42"
0.39"
M5
HSK63A-SF5/16-4.72"
0.312"
0.83"
1.06"
4.72"
3.70"
1.42"
0.39"
M6
HSK63A-SF3/8-4.72"
0.375"
0.94"
1.26"
4.72"
3.70"
1.65"
0.39"
M8x1
HSK63A-SF1/2-4.72"
0.500"
1.06"
1.34"
4.72"
3.70"
1.85"
0.39"
M10x1
HSK63A-SF5/8-4.72"
0.625"
1.06"
1.34"
4.72"
3.70"
1.97"
0.39"
M12x1
HSK63A-SF3/4-4.72"
0.750"
1.30"
1.65"
4.72"
3.70"
2.05"
0.39"
M16x1
HSK63A-SF1"-4.72"
1.000"
1.73"
2.07"
4.72"
3.70"
2.44"
0.39"
M16x1
HSK63A-SF1-1/4-4.72"
1.250"
1.73"
2.07"
4.72"
3.70"
2.44"
0.39"
M16x1
HSK63A-SF1/8-6.3"
0.125"
0.59"
1.06"
6.30"
5.28"
-
-
-
HSK63A-SF3/16-6.3"
0.187"
0.59"
1.06"
6.30"
5.28"
-
-
-
HSK63A-SF1/4-6.3"
0.250"
0.83"
1.26"
6.30"
5.28"
1.42"
0.39"
M5
HSK63A-SF5/16-6.3"
0.312"
0.83"
1.26"
6.30"
5.28"
1.42"
0.39"
M6
HSK63A-SF3/8-6.3"
0.375"
0.94"
1.34"
6.30"
5.28"
1.65"
0.39"
M8x1
HSK63A-SF1/2-6.3"
0.500"
1.06"
1.65"
6.30"
5.28"
1.85"
0.39"
M10x1
HSK63A-SF5/8-6.3"
0.625"
1.06"
1.65"
6.30"
5.28"
1.97"
0.39"
M12x1
HSK63A-SF3/4-6.3"
0.750"
1.30"
2.01"
6.30"
5.28"
2.05"
0.39"
M16x1
HSK63A-SF1"-6.3"
1.000"
1.73"
2.07"
6.30"
5.28"
2.44"
0.39"
M16x1
HSK63A-SF1-1/4-6.3"
1.250"
1.73"
2.07"
6.30"
5.28"
2.44"
0.39"
M16x1
HSK80A-SF1/4-3.35"
0.250"
0.83"
1.06"
3.35"
2.32"
1.42"
0.39"
M5
HSK80A-SF3/8-3.54"
0.375"
0.94"
1.26"
3.54"
2.52"
1.65"
0.39"
M8x1
HSK80A-SF1/2-3.74"
0.500"
1.06"
1.34"
3.74"
2.72"
1.85"
0.39"
M10x1
HSK80A-SF5/8-3.94"
0.625"
1.06"
1.34"
3.94"
2.91"
1.97"
0.39"
M12x1
HSK80A-SF3/4-4.13"
0.750"
1.30"
1.65"
4.13"
3.11"
2.05"
0.39"
M16x1
HSK80A-SF1"-4.53"
1.000"
1.73"
2.09"
4.53"
3.50"
2.44"
0.39"
M16x1
HSK80A-SF1-1/4-4.72"
1.250"
1.73"
2.09"
4.72"
3.70"
2.44"
0.39"
M16x1
HSK100A-SF1/4-3.35"
0.250"
0.83"
1.06"
3.35"
2.20"
1.42"
0.39"
M5
HSK100A-SF3/8-3.54"
0.375"
0.94"
1.26"
3.54"
2.40"
1.65"
0.39"
M8x1
HSK100A-SF1/2-3.74"
0.500"
1.06"
1.34"
3.74"
2.60"
1.85"
0.39"
M10x1
HSK100A-SF5/8-3.94"
0.625"
1.06"
1.34"
3.94"
2.80"
1.97"
0.39"
M12x1
HSK100A-SF3/4-4.13"
0.750"
1.30"
1.65"
4.13"
2.99"
2.05"
0.39"
M16x1
HSK100A-SF1"-4.53"
1.000"
1.73"
2.09"
4.53"
3.39"
2.44"
0.39"
M16x1
HSK100A-SF1/4-4.72"
0.250"
0.83"
1.06"
4.72"
3.58"
1.42"
0.39"
M5
HSK100A-SF3/8-4.72"
0.375"
0.94"
1.26"
4.72"
3.58"
1.65"
0.39"
M8x1
HSK100A-SF1/2-4.72"
0.500"
1.06"
1.34"
4.72"
3.58"
1.85"
0.39"
M10x1
HSK100A-SF5/8-4.72"
0.625"
1.06"
1.34"
4.72"
3.58"
1.97"
0.39"
M12x1
HSK100A-SF3/4-4.72"
0.750"
1.30"
1.65"
4.72"
3.58"
2.05"
0.39"
M16x1
HSK100A-SF1"-4.72"
1.000"
1.73"
2.09"
4.72"
3.58"
2.44"
0.39"
M16x1
HSK100A-SF1-1/4-4.72"
1.250"
1.73"
2.09"
4.72"
3.58"
2.44"
0.39"
M16x1
HSK100A-SF1/4-6.30"
0.250"
0.83"
1.26"
6.30"
5.16"
1.42"
0.39"
M5
HSK100A-SF3/8-6.30"
0.375"
0.94"
1.34"
6.30"
5.16"
1.65"
0.39"
M8x1
HSK100A-SF1/2-6.30"
0.500"
1.06"
1.65"
6.30"
5.16"
1.85"
0.39"
M10x1
HSK100A-SF5/8-6.30"
0.625"
1.06"
1.65"
6.30"
5.16"
1.97"
0.39"
M12x1
HSK100A-SF3/4-6.30"
0.750"
1.30"
2.01"
6.30"
5.16"
2.05"
0.39"
M16x1
HSK100A-SF1-6.30"
1.000"
1.73"
2.36"
6.30"
5.16"
2.44"
0.39"
M16x1
HSK100A-SF1-1/4-6.30"
1.250"
1.73"
2.36"
6.30"
5.16"
2.44"
0.39"
M16x1
Leave a message
