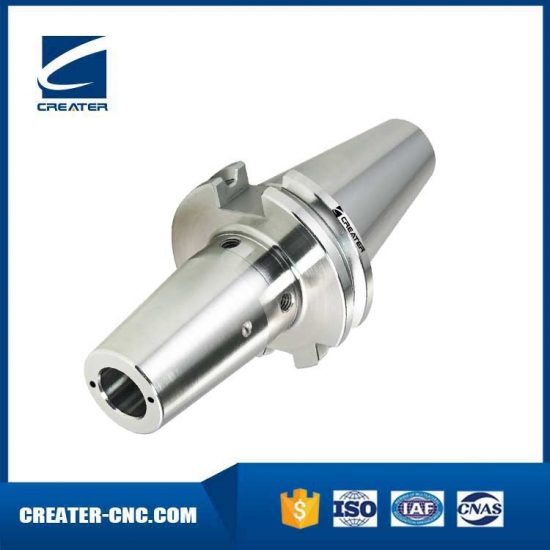

Shrink Chuck with Coolant Channels
7:24 Taper:AT3
Accuracy: 0.003mm
Coolant: AD, ADB
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK6989

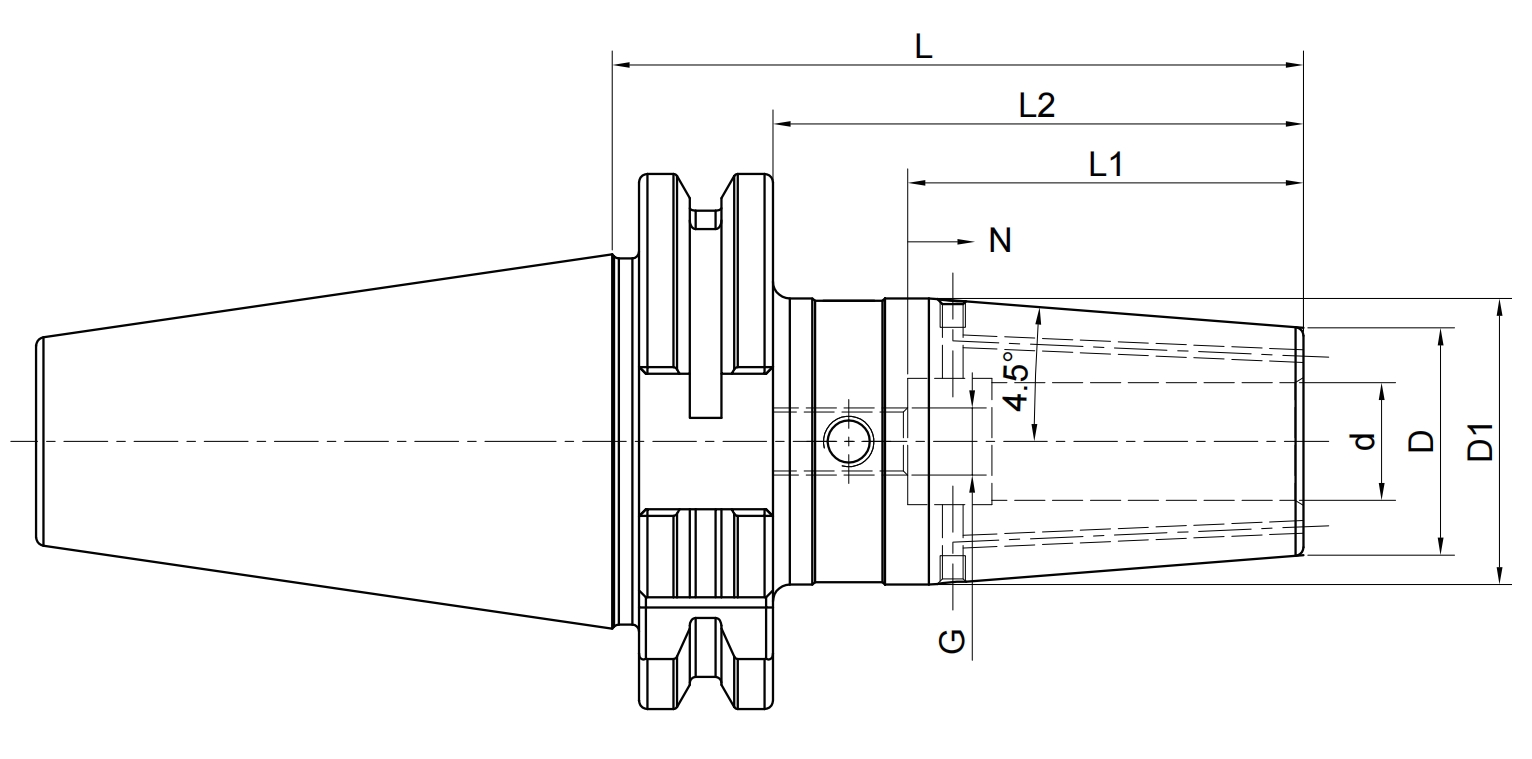

Size
d
D
D1
L
L2
L1
N
G
SK40-SF03-80K
3
15
20
80
60.9
-
-
-
SK40-SF04-80K
4
15
20
80
60.9
-
-
-
SK40-SF05-80K
5
15
20
80
60.9
-
-
-
SK40-SF06-80K
6
21
27
80
60.9
36
10
M5
SK40-SF08-80K
8
21
27
80
60.9
36
10
M6
SK40-SF10-80K
10
24
32
80
60.9
42
10
M8x1
SK40-SF12-80K
12
24
32
80
60.9
47
10
M10x1
SK40-SF14-80K
14
27
34
80
60.9
47
10
M10x1
SK40-SF16-80K
16
27
34
80
60.9
50
10
M12x1
SK40-SF18-80K
18
33
42
80
60.9
50
10
M12x1
SK40-SF20-80K
20
33
42
80
60.9
52
10
M16x1
SK40-SF25-100K
25
44
50
100
80.9
58
10
M16x1
SK40-SF32-100K
32
44
50
100
80.9
62
10
M16x1
SK40-SF06-120K
6
21
27
120
100.9
36
10
M5
SK40-SF08-120K
8
21
27
120
100.9
36
10
M6
SK40-SF10-120K
10
24
32
120
100.9
42
10
M8x1
SK40-SF12-120K
12
24
32
120
100.9
47
10
M10x1
SK40-SF14-120K
14
27
34
120
100.9
47
10
M10x1
SK40-SF16-120K
16
27
34
120
100.9
50
10
M12x1
SK40-SF18-120K
18
33
42
120
100.9
50
10
M12x1
SK40-SF20-120K
20
33
42
120
100.9
52
10
M16x1
SK40-SF06-160K
6
21
32
160
140.9
36
10
M5
SK40-SF08-160K
8
21
32
160
140.9
36
10
M6
SK40-SF10-160K
10
24
34
160
140.9
42
10
M8x1
SK40-SF12-160K
12
24
34
160
140.9
47
10
M10x1
SK40-SF14-160K
14
27
42
160
140.9
47
10
M10x1
SK40-SF16-160K
16
27
42
160
140.9
50
10
M12x1
SK40-SF18-160K
18
33
50
160
140.9
50
10
M12x1
SK40-SF20-160K
20
33
50
160
140.9
52
10
M16x1
SK50-SF06-80K
6
21
27
80
60.9
36
10
M5
SK50-SF08-80K
8
21
27
80
60.9
36
10
M6
SK50-SF10-80K
10
24
32
80
60.9
42
10
M8x1
SK50-SF12-80K
12
24
32
80
60.9
47
10
M10x1
SK50-SF14-80K
14
27
34
80
60.9
47
10
M10x1
SK50-SF16-80K
16
27
34
80
60.9
50
10
M12x1
SK50-SF18-80K
18
33
42
80
60.9
50
10
M12x1
SK50-SF20-80K
20
33
42
80
60.9
52
10
M16x1
SK50-SF25-90K
25
44
53
90
70.9
58
10
M16x1
SK50-SF32-90K
32
44
53
90
70.9
62
10
M16x1
SK50-SF06-120K
6
21
27
120
100.9
36
10
M5
SK50-SF08-120K
8
21
27
120
100.9
36
10
M6
SK50-SF10-120K
10
24
32
120
100.9
42
10
M8x1
SK50-SF12-120K
12
24
32
120
100.9
47
10
M10x1
SK50-SF14-120K
14
27
34
120
100.9
47
10
M10x1
SK50-SF16-120K
16
27
34
120
100.9
50
10
M12x1
SK50-SF18-120K
18
33
42
120
100.9
50
10
M12x1
SK50-SF20-120K
20
33
42
120
100.9
52
10
M16x1
SK50-SF25-120K
25
44
53
120
100.9
58
10
M16x1
SK50-SF32-120K
32
44
53
120
100.9
62
10
M16x1
SK50-SF06-160K
6
21
32
160
140.9
36
10
M5
SK50-SF08-160K
8
21
32
160
140.9
36
10
M6
SK50-SF10-160K
10
24
34
160
140.9
42
10
M8x1
SK50-SF12-160K
12
24
34
160
140.9
47
10
M10x1
SK50-SF14-160K
14
27
42
160
140.9
47
10
M10x1
SK50-SF16-160K
16
27
42
160
140.9
50
10
M12x1
SK50-SF18-160K
18
33
51
160
140.9
50
10
M12x1
SK50-SF20-160K
20
33
51
160
140.9
52
10
M16x1
SK50-SF25-160K
25
44
60
160
140.9
58
10
M16x1
SK50-SF32-160K
32
44
60
160
140.9
62
10
M16x1
