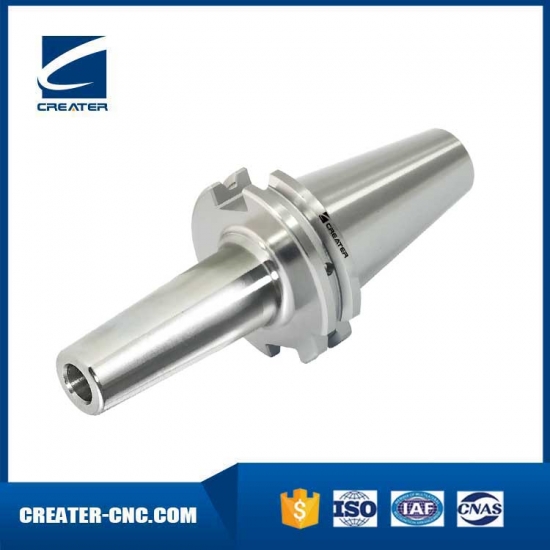

Shrink Chuck
7:24 Taper:AT3
Accuracy: 0.003mm
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK6989

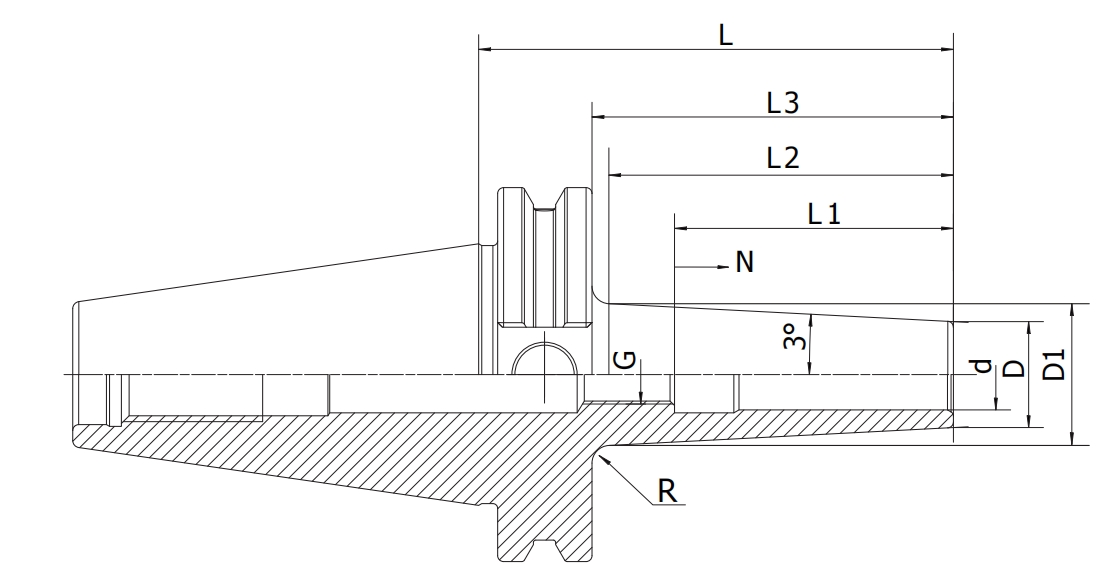

Size
d
D
D1
L
L3
L2
L1
N
G
R
SK40-SFS03-90
3
9
16.1
90
70.9
68.1
-
-
-
3
SK40-SFS04-90
4
10
17.1
90
70.9
68.1
-
-
-
3
SK40-SFS06-90
6
12
19.1
90
70.9
68.1
36
10
M5
3
SK40-SFS08-90
8
14
21.1
90
70.9
68.1
36
10
M6
3
SK40-SFS10-90
10
16
23.1
90
70.9
68.1
42
10
M8x1
3
SK40-SFS12-90
12
18
25.1
90
70.9
68.1
47
10
M10x1
3
SK40-SFS16-90
16
22
29.1
90
70.9
68.1
50
10
M12x1
3
SK40-SFS03-120
3
9
19.1
120
100.9
96.1
-
-
-
5
SK40-SFS04-120
4
10
20.1
120
100.9
96.1
-
-
-
5
SK40-SFS06-120
6
12
22.1
120
100.9
96.1
36
10
M5
5
SK40-SFS08-120
8
14
24.1
120
100.9
96.1
36
10
M6
5
SK40-SFS10-120
10
16
26.1
120
100.9
96.1
42
10
M8x1
5
SK40-SFS12-120
12
18
28.1
120
100.9
96.1
47
10
M10x1
5
SK40-SFS16-120
16
22
32.1
120
100.9
96.1
50
10
M12x1
5
SK40-SFS03-160
3
9
23.3
160
140.9
136.2
-
-
-
5
SK40-SFS04-160
4
10
24.3
160
140.9
136.2
-
-
-
5
SK40-SFS06-160
6
12
26.3
160
140.9
136.2
36
10
M5
5
SK40-SFS08-160
8
14
28.3
160
140.9
136.2
36
10
M6
5
SK40-SFS10-160
10
16
30.3
160
140.9
136.2
42
10
M8x1
5
SK40-SFS12-160
12
18
32.3
160
140.9
136.2
47
10
M10x1
5
SK40-SFS16-160
16
22
36.3
160
140.9
136.2
50
10
M12x1
5
