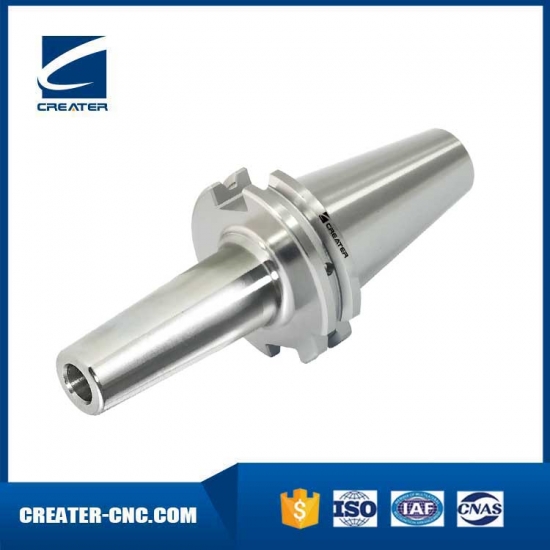

ANSI B5.50 CAT Shrink Fit Chuck, Slim, 3°
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification

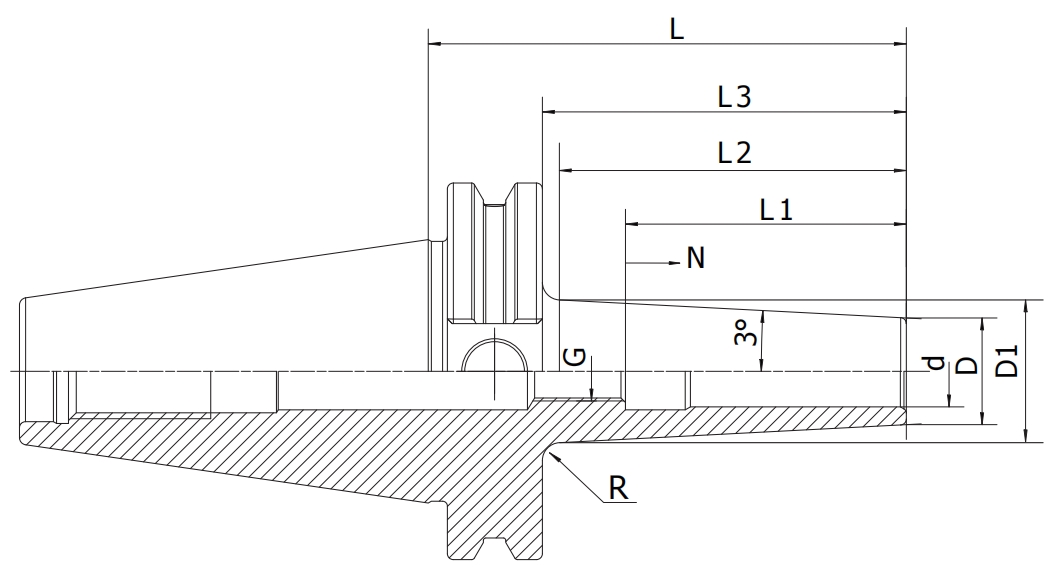

- Simple figure
- Precautions
Shrink Chuck
7:24 Taper:AT3
Accuracy: 0.003mm
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK6989
| Size | d | D | D1 | L | L1 | G |
| CAT40-SFS03-80 | 3 | 9 | 15.5 | 80 | 45 | M6x1.0P |
| CAT40-SFS04-80 | 4 | 10 | 16.3 | 80 | 45 | M6x1.0P |
| CAT40-SFS06-80 | 6 | 12 | 18.3 | 80 | 45 | M5x0.8P |
| CAT40-SFS1/8"-3.15" | 1/8" | 0.35" | 0.60" | 3.15" | 0.78" | M6x1.0P |
| CAT40-SFS3/16"-3.15" | 3/16" | 0.43" | 0.68" | 3.15" | 0.78" | M6x1.0P |
| CAT40-SFS1/4"-3.15" | 1/4" | 0.47" | 0.72" | 3.15" | 1.42" | M5x0.8P |
| CAT40-SFS3/8"-3.15" | 3/8" | 0.63" | 0.88" | 3.15" | 1.93" | M8x1.25P |
| CAT40-SFS1/2"-3.15" | 1/2" | 0.70" | 0.96" | 3.15" | 1.93" | M10x1.5P |
