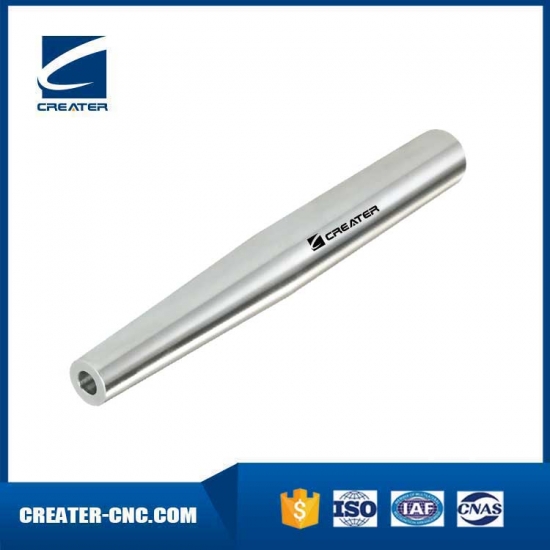

Shrink Fit Extension, 3°
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification
- Simple figure
- Precautions
Standard Shrink fit Chuck use Heat resistant hot-working steel to clamp HSS and solid carbide tools via steel thermal expansion character. 0,003 mm accuracy and precise taper tolerances improve tool life, subsequent fine balancing bring Better surface quality and Low wear of the machine spindle
| Size | d | D1 | D2 | D | L | L1 | L2 | N | G | Figure |
| C12-SFS03-120 | 3 | 9 | 11.8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS04-120 | 4 | 10 | 11.8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS05-120 | 5 | 11 | 11.8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS06-120 | 6 | 12 | 17 | 12 | 120 | 36 | 73 | 10 | M5 | 3 |
| C12-SFS08-120 | 8 | 14 | 19 | 12 | 120 | 36 | 73 | 10 | M6 | 3 |
| C16-SFS03-120 | 3 | 9 | 13 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS04-120 | 4 | 10 | 14 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS05-120 | 5 | 11 | 15 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS06-120 | 6 | 12 | 15.8 | 16 | 120 | 36 | 70 | 10 | M5 | 2 |
| C16-SFS08-120 | 8 | 14 | 19 | 16 | 120 | 36 | 70 | 10 | M6 | 3 |
| C20-SFS03-120 | 3 | 9 | 13 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS04-120 | 4 | 10 | 14 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS05-120 | 5 | 11 | 15 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS06-120 | 6 | 12 | 16 | 20 | 120 | 36 | 68 | 10 | M5 | 1 |
| C20-SFS08-120 | 8 | 14 | 19 | 20 | 120 | 36 | 68 | 10 | M6 | 1 |
| C20-SFS10-120 | 10 | 16 | 19.8 | 20 | 120 | 42 | 68 | 10 | M8x1 | 1 |
| C20-SFS12-120 | 12 | 18 | 19.8 | 20 | 120 | 47 | 68 | 10 | M10x1 | 1 |
| C12-SFS03-160 | 3 | 9 | 11.8 | 12 | 160 | - | 113 | - | - | 1 |
| C12-SFS04-160 | 4 | 10 | 11.8 | 12 | 160 | - | 113 | - | - | 1 |
| C16-SFS03-160 | 3 | 9 | 13 | 16 | 160 | - | 110 | - | - | 1 |
| C16-SFS04-160 | 4 | 10 | 14 | 16 | 160 | - | 110 | - | - | 1 |
| C16-SFS05-160 | 5 | 11 | 15 | 16 | 160 | - | 110 | - | - | 1 |
| C20-SFS05-160 | 5 | 11 | 15 | 20 | 160 | - | 110 | - | - | 1 |
| C20-SFS06-160 | 6 | 12 | 16 | 20 | 160 | 36 | 108 | 10 | M5 | 1 |
| C20-SFS08-160 | 8 | 14 | 19 | 20 | 160 | 36 | 108 | 10 | M6 | 1 |
| C25-SFS08-160 | 8 | 14 | 19 | 25 | 160 | 36 | 108 | 10 | M6 | 1 |
| C25-SFS10-160 | 10 | 16 | 21 | 25 | 160 | 42 | 108 | 10 | M8x1 | 1 |
| C25-SFS12-160 | 12 | 18 | 23 | 25 | 160 | 47 | 108 | 10 | M10x1 | 1 |
| C25-SFS14-160 | 14 | 20 | 24.8 | 25 | 160 | 47 | 108 | 10 | M10x1 | 1 |
| C25-SFS16-160 | 16 | 22 | 24.8 | 25 | 160 | 50 | 108 | 10 | M12x1 | 1 |
| C32-SFS10-160 | 10 | 16 | 21 | 32 | 160 | 42 | 98 | 10 | M8x1 | 1 |
| C32-SFS12-160 | 12 | 18 | 23 | 32 | 160 | 47 | 98 | 10 | M10x1 | 1 |
| C32-SFS14-160 | 14 | 20 | 25 | 32 | 160 | 47 | 98 | 10 | M10x1 | 1 |
| C32-SFS16-160 | 16 | 22 | 28 | 32 | 160 | 50 | 98 | 10 | M12x1 | 1 |
| C32-SFS18-160 | 18 | 25 | 30 | 32 | 160 | 50 | 98 | 10 | M12x1 | 1 |
| C32-SFS20-160 | 20 | 26 | 31.8 | 32 | 160 | 52 | 98 | 10 | M16x1 | 1 |
| C16-SFS03-200 | 3 | 9 | 13 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS04-200 | 4 | 10 | 14 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS05-200 | 5 | 11 | 15 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS06-200 | 6 | 12 | 15.8 | 16 | 200 | 36 | 150 | 10 | M5 | 1 |
| C16-SFS08-200 | 8 | 14 | 19 | 16 | 200 | 36 | 150 | 10 | M6 | 3 |
| C20-SFS04-200 | 4 | 10 | 14 | 20 | 200 | - | 148 | - | - | 1 |
| C20-SFS06-200 | 6 | 12 | 16 | 20 | 200 | 36 | 148 | 10 | M5 | 1 |
| C20-SFS08-200 | 8 | 14 | 19 | 20 | 200 | 36 | 148 | 10 | M6 | 1 |
| C20-SFS10-200 | 10 | 16 | 19.8 | 20 | 200 | 42 | 148 | 10 | M8x1 | 1 |
| C20-SFS06-250 | 6 | 12 | 16 | 20 | 250 | 36 | 198 | 10 | M5 | 1 |
| C20-SFS08-250 | 8 | 14 | 19 | 20 | 250 | 36 | 198 | 10 | M6 | 1 |
| C20-SFS10-250 | 10 | 16 | 19.8 | 20 | 250 | 42 | 198 | 10 | M8x1 | 1 |
| C25-SFS12-250 | 12 | 18 | 23 | 25 | 250 | 47 | 192 | 10 | M10x1 | 1 |
| C25-SFS16-250 | 16 | 22 | 28 | 25 | 250 | 50 | 192 | 10 | M12x1 | 1 |
| C20-SFS06-300 | 6 | 12 | 16 | 20 | 300 | 36 | 248 | 10 | M5 | 1 |
| C20-SFS08-300 | 8 | 14 | 19 | 20 | 300 | 36 | 248 | 10 | M6 | 1 |
| C20-SFS10-300 | 10 | 16 | 19.8 | 20 | 300 | 42 | 248 | 10 | M8x1 | 1 |
| C25-SFS12-300 | 12 | 18 | 23 | 25 | 300 | 47 | 242 | 10 | M10x1 | 1 |
| C25-SFS16-300 | 16 | 22 | 28 | 25 | 300 | 50 | 242 | 10 | M12x1 | 1 |
