Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.
-
Contact us
- Office Address: 253000, Chongde 5th Avenue, Gaotie New District, Dezhou, China
- Tel: +86-534-8127588
- Mob: +86-18865728871
- Email: sales@bright-tools.com
- Skype: sdjinjie101
Products

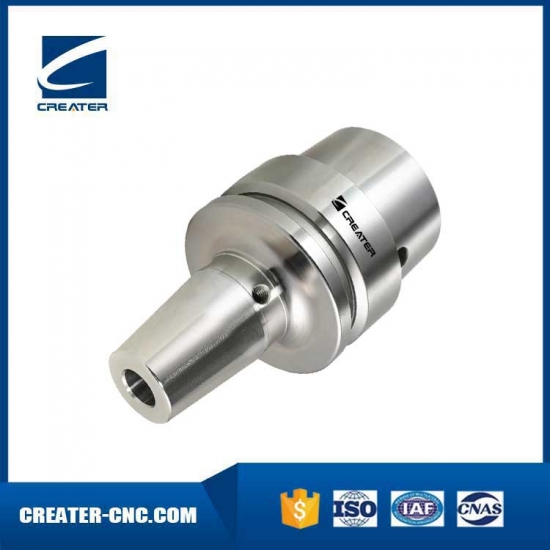

DIN69893 HSK-E Shrink Fit Chuck, 4.5°, Standard
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions
Material:Heat shrinkable steel
Hardness:HRC56-60 Runout: 0.003 mm Blancing: G2.5/25000 RPM Usage: Working with induction shrink machine for mounting straight shank tools.
|
|
 |
|

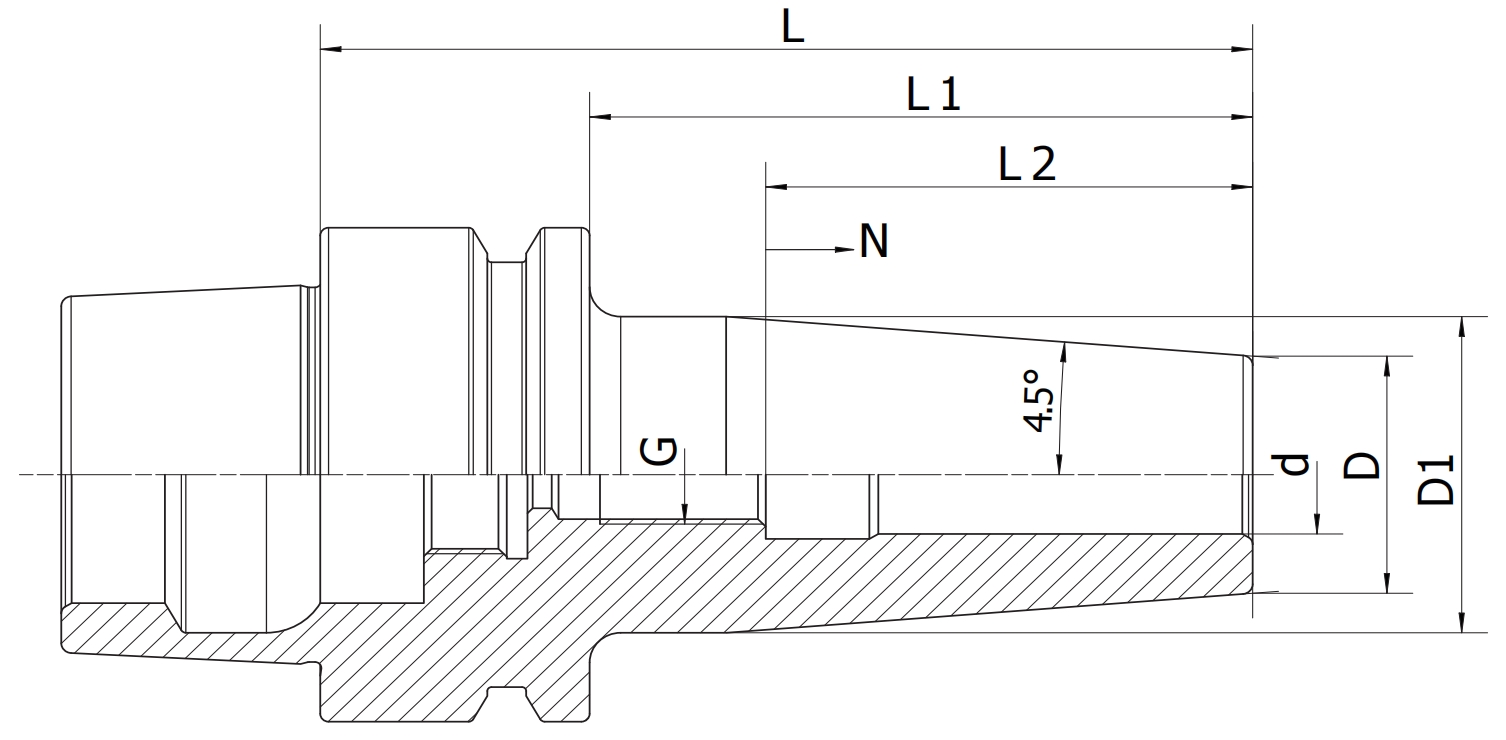

| Size | d | D | D1 | L | L2 | L1 | N | G |
| HSK25E-SF06-50 | 6 | 15 | 19 | 50 | 40 | 36 | 5 | M5 |
| HSK32E-SF03-60 | 3 | 15 | 20 | 60 | 40 | - | - | - |
| HSK32E-SF04-60 | 4 | 15 | 20 | 60 | 40 | - | - | - |
| HSK32E-SF05-60 | 5 | 15 | 20 | 60 | 40 | - | - | - |
| HSK32E-SF06-70 | 6 | 20 | 26 | 70 | 50 | 36 | 10 | M5 |
| HSK32E-SF08-70 | 8 | 20 | 26 | 70 | 50 | 36 | 10 | M6 |
| HSK32E-SF10-70 | 10 | 24 | 29 | 70 | 50 | 42 | 10 | M8x1 |
| HSK32E-SF12-70 | 12 | 24 | 29 | 70 | 50 | 47 | 10 | M10x1 |
| HSK40E-SF03-60 | 3 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40E-SF04-60 | 4 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40E-SF05-60 | 5 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40E-SF06-65 | 6 | 21 | 27 | 65 | 45 | 36 | 10 | M5 |
| HSK40E-SF08-65 | 8 | 21 | 27 | 65 | 45 | 36 | 10 | M6 |
| HSK40E-SF10-65 | 10 | 24 | 30 | 65 | 45 | 42 | 10 | M8x1 |
| HSK40E-SF12-65 | 12 | 24 | 30 | 65 | 45 | 47 | 10 | M10x1 |
| HSK40E-SF03-80 | 3 | 15 | 20 | 80 | 60 | - | - | - |
| HSK40E-SF04-80 | 4 | 15 | 20 | 80 | 60 | - | - | - |
| HSK40E-SF05-80 | 5 | 15 | 20 | 80 | 60 | - | - | - |
| HSK40E-SF06-80 | 6 | 21 | 27 | 80 | 60 | 36 | 10 | M5 |
| HSK40E-SF08-80 | 8 | 21 | 27 | 80 | 60 | 36 | 10 | M6 |
| HSK40E-SF10-80 | 10 | 24 | 32 | 80 | 60 | 42 | 10 | M8x1 |
| HSK40E-SF12-90 | 12 | 24 | 32 | 90 | 70 | 47 | 10 | M10x1 |
| HSK40E-SF16-90 | 16 | 27 | 34 | 90 | 70 | 50 | 10 | M12x1 |
| HSK40E-SF03-120 | 3 | 15 | 20 | 120 | 100 | - | - | - |
| HSK40E-SF04-120 | 4 | 15 | 20 | 120 | 100 | - | - | - |
| HSK40E-SF05-120 | 5 | 15 | 20 | 120 | 100 | - | - | - |
| HSK40E-SF06-120 | 6 | 21 | 27 | 120 | 100 | 36 | 10 | M5 |
| HSK40E-SF08-120 | 8 | 21 | 27 | 120 | 100 | 36 | 10 | M6 |
| HSK40E-SF10-120 | 10 | 24 | 32 | 120 | 100 | 42 | 10 | M8x1 |
| HSK40E-SF12-120 | 12 | 24 | 32 | 120 | 100 | 47 | 10 | M10x1 |
| HSK50E-SF03-80 | 3 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50E-SF04-80 | 4 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50E-SF05-80 | 5 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50E-SF06-80 | 6 | 21 | 27 | 80 | 54 | 36 | 10 | M5 |
| HSK50E-SF08-80 | 8 | 21 | 27 | 80 | 54 | 36 | 10 | M6 |
| HSK50E-SF10-85 | 10 | 24 | 32 | 85 | 59 | 42 | 10 | M8x1 |
| HSK50E-SF12-90 | 12 | 24 | 32 | 90 | 64 | 47 | 10 | M10x1 |
| HSK50E-SF14-90 | 14 | 27 | 34 | 90 | 64 | 47 | 10 | M10x1 |
| HSK50E-SF16-95 | 16 | 27 | 34 | 95 | 69 | 50 | 10 | M12x1 |
| HSK50E-SF18-95 | 18 | 33 | 41 | 95 | 69 | 50 | 10 | M12x1 |
| HSK50E-SF20-100 | 20 | 33 | 41 | 100 | 74 | 52 | 10 | M16x1 |
| HSK63E-SF06-90 | 6 | 21 | 27 | 90 | 64 | 36 | 10 | M5 |
| HSK63E-SF08-90 | 8 | 21 | 27 | 90 | 64 | 36 | 10 | M6 |
| HSK63E-SF10-90 | 10 | 24 | 32 | 90 | 64 | 42 | 10 | M8x1 |
| HSK63E-SF12-90 | 12 | 24 | 32 | 90 | 64 | 47 | 10 | M10x1 |
| HSK63E-SF14-90 | 14 | 27 | 34 | 90 | 64 | 47 | 10 | M10x1 |
| HSK63E-SF16-95 | 16 | 27 | 34 | 95 | 69 | 50 | 10 | M12x1 |
| HSK63E-SF18-95 | 18 | 33 | 42 | 95 | 69 | 50 | 10 | M12x1 |
| HSK63E-SF20-100 | 20 | 33 | 42 | 100 | 74 | 52 | 10 | M16x1 |
| HSK63E-SF25-115 | 25 | 44 | 53 | 115 | 89 | 58 | 10 | M16x1 |
| Size | d | D | D1 | L | L2 | L1 | N | G |
| HSK40E-SF1/8"-3.54" | 1/8" | 0.36" | 0.47" | 3.54" | 2.76" | 0.79" | - | - |
| HSK40E-SF3/16"-3.54" | 3/16" | 0.63" | 0.71" | 3.54" | 2.76" | 0.79" | - | - |
| HSK40E-SF1/4"-3.54" | 1/4" | 0.71" | 1.06" | 3.54" | 2.76" | 1.42" | 0.39" | M5 x 0.8P |
| HSK40E-SF5/16"-3.54" | 5/16" | 0.83" | 1.06" | 3.54" | 2.76" | 1.42" | 0.39" | M6 x 1.0P |
| HSK40E-SF3/8"-3.54" | 3/8" | 0.94" | 1.26" | 3.54" | 2.76" | 1.65" | 0.39" | M8 x 1.25P |
The heat-shrinkable system usually uses the heat-sensitive coil to heat the grip part of the handle in a short time, so that the inside diameter of the handle expands accordingly. At this point, the tool is immediately loaded into the handle, resulting in a high radial clamping force, the tool is firmly clamped.
