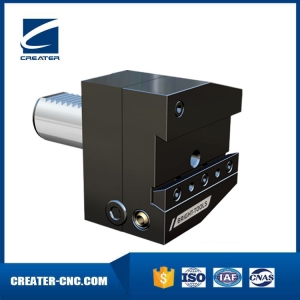

VDI Cuting Off Tools Form ALU

Product Origin:	China
Brand:	creater
Shipping Port:	Qingdao
Color:	Blackening
Lead Time:	5-40 Days
Payment:	TT in Advance

contact now

Specification
Simple figure
Precautions

VDI Tool Holder for Cuting Off Tools

Height Adjustable, Upside-down, Left, Form ALU

VDI Tool Holder Form ALU is Cutting Off Tool holder; VDI Tool Holder is manufactured by DIN 69880 standard with sizes as VDI 20, VDI 30, VDI 40, VDI 50 and VDI 60.

ALU cutting off tools

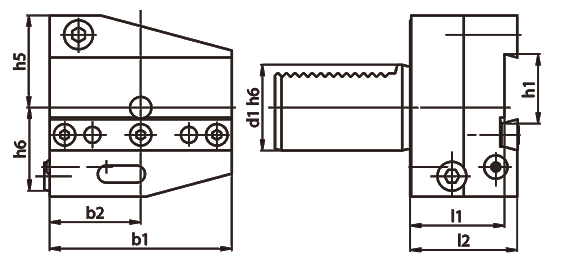

Code	d1	b1	b2	h1	h5	h6	l1	l2
ALU2526	25	60	30	26	36	28	44	50
ALU3026	30	70	35	26	38	35	44	50
ALU4026	40	85	42.5	26	43	41.5	44	50
ALU4032	40	85	42.5	32	43	41.5	44	50
ALU5026	50	100	50	26	43	45	44	50
ALU5032	50	100	50	32	43	45	44	50
ALU6032	60	125	62.5	32	48	55	44	50
