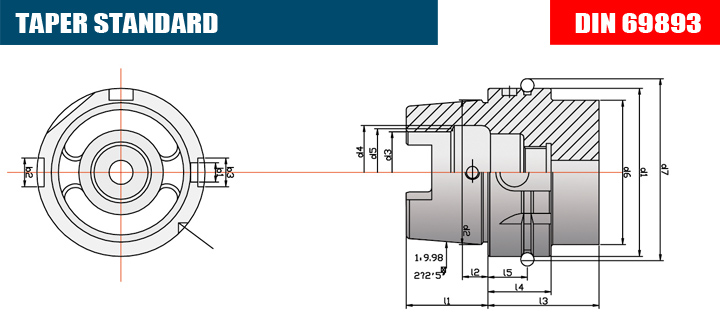

HSK Tool Holders
| Model | d1 | d2 | d3 | d4 | d5 | d6 | d7 | d8 | l1 | l2 | l3 | l4 | l5 | b1 | b2 | b3 |
| HSK32A | 32 | 24.007 | 17 | 20.5 | 19 | 26 | 37 | 4 | 16 | 3.2 | 35 | 20 | 16 | 7.05 | 7 | 9 |
| HSK40A | 40 | 30.007 | 21 | 25.5 | 23 | 34 | 45 | 4 | 20 | 4 | 35 | 20 | 16 | 8.05 | 9 | 9 |
| HSK50A | 50 | 38.009 | 26 | 32 | 29 | 42 | 59.3 | 7 | 25 | 5 | 42 | 26 | 18 | 10.54 | 12 | 12 |
| HSK63A | 63 | 48.010 | 34 | 40 | 37 | 53 | 72.3 | 7 | 32 | 6.3 | 42 | 26 | 18 | 12.54 | 16 | 16 |
| HSK100A | 100 | 75.013 | 53 | 63 | 58 | 88 | 109.8 | 7 | 50 | 10 | 45 | 29 | 20 | 20.02 | 20 | 20 |
-
DIN 69893 TG Collet Chuck
HSK-TG Collet chuck, Nut with steel ball increase the holding power by 75%, can be used for heavy-duty processing
-
DIN 69893 HSK-SKS Collet Chuck
SKS Collet Chuck
HSK-SKS Collet Chuck is very good at for high speed processing especially for electronic workpiece processing
1, The nut is designed in a full round, with small wind resistance and low noise, G2.5/25000 RPM ensure stable high-speed processing
2, The collet adopts a unilateral 4° design, which bring higher repeat clamping accuracy.
3, Slim body compared with ER collets, has stronger air avoidance.
-
DIN 69893 ER Collet Chuck with Mini Nut
HSK-ER tool holder is a commonly used tool holder in machine tool processing. It is composed of a tool holder body and an ER collet. It is mainly used to clamp and fix straight-shank cutting tools such as drills and milling cutters machining.
1.Various specifications: ER11, ER16, ER20, ER25, ER32, ER40
2. Easy to operate
3, Wide applicability
-
UM Adjustable Tool Holder DIN69893
The UM adjustable tool holder is an optimal solution, which ensures a very high accuracy and a high clamping force.
-
Precision Screw Collet Chuck DIN69893
Material:Alloy steel
Hardness:HRC55-60
Runout: 0.003 mm
Cooling: AD; AD/B can be made by request.
Balancing:G2.5/25000RPM;Balancing G6.3 can be made by request.
Features: Built-in collet design -
Collet Chuck DIN6499
DIN69893, ISO12164 HSK Standard ER Collet Chuck is to clamp tools with straight shank in DIN 6499 Collet. -
Collet Chuck Mini Nuts
HSK63 ER Collet Chucks with Mini Nuts is used with ER Collets. -
Power Milling Chuck
HSK63A, HSK100A Power Milling Chuck Tool Holders -
OZ Collet Chuck
HSK100 HSK63 OZ Collet Chucks -
Face Mill Holder DIN6357
DIN 69893 ISO 12164 Face Milling Holder is to holding shell mill cutters
