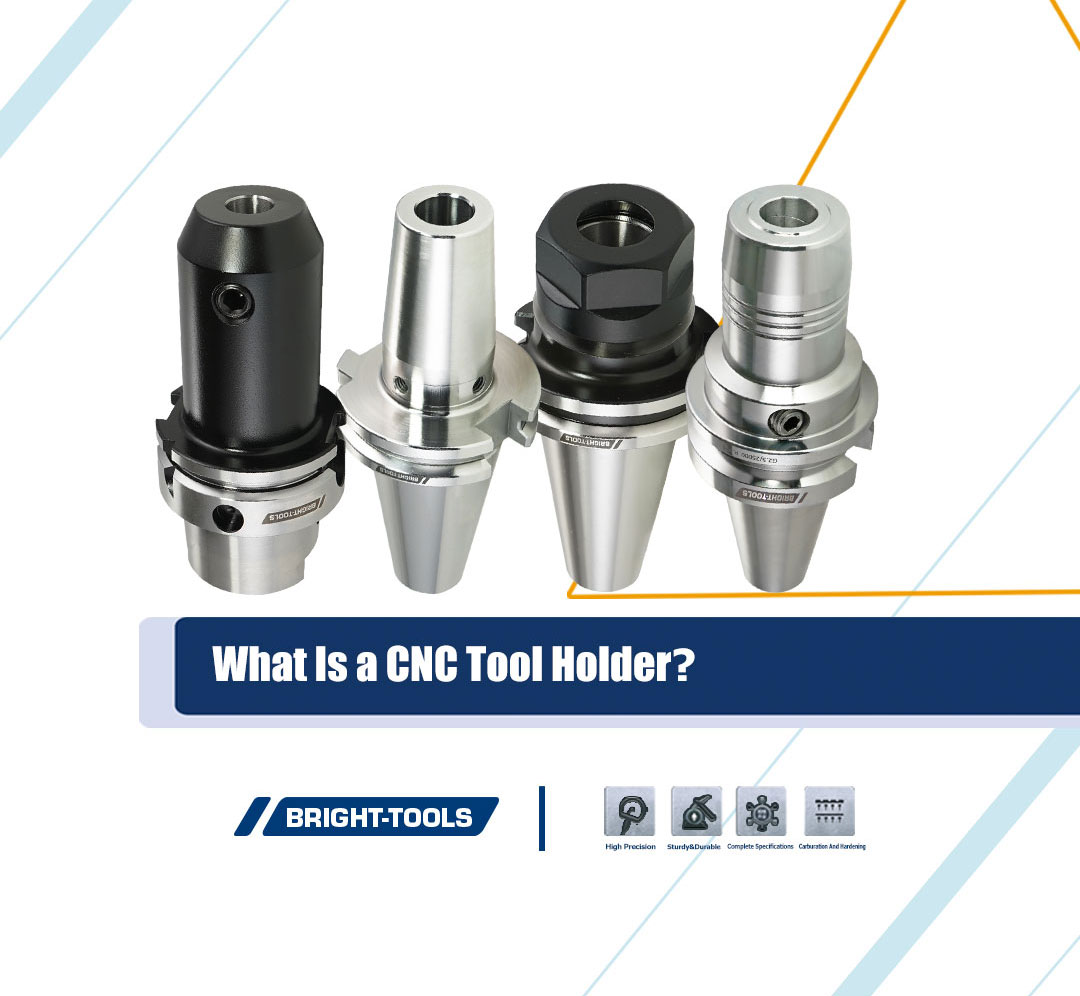

Learn about the components of a 7:24 collet holder

When working with CNC machines, it is important to understand the components of a tool holder and what they do to maximize manufacturing efficiency and efficiency. The tool holder has four parts:

Pull stud: The job of the pull stud is to hold the tool holder in the spindle. If the stud is worn, it can fly out of the spindle during use, creating a hazardous environment.

Taper: The top of the taper holds the pull stud and is shaped like a cone. When changing tools, the taper goes into the spindle.

V-Flange: The V-flange is identified by a "V" engraved on the outside of the tool holder and clamps to the automatic tool changer as the tool rotates from the tool changer to the spindle and back.

Collet, Collet and Nut: The collet enters the collet cartridge, which is held in place by the collet nut.
