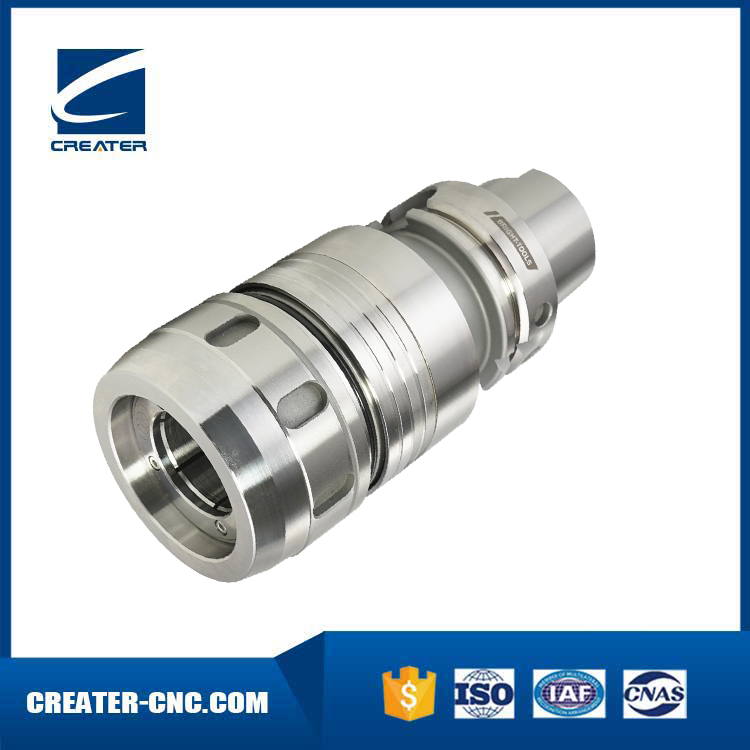

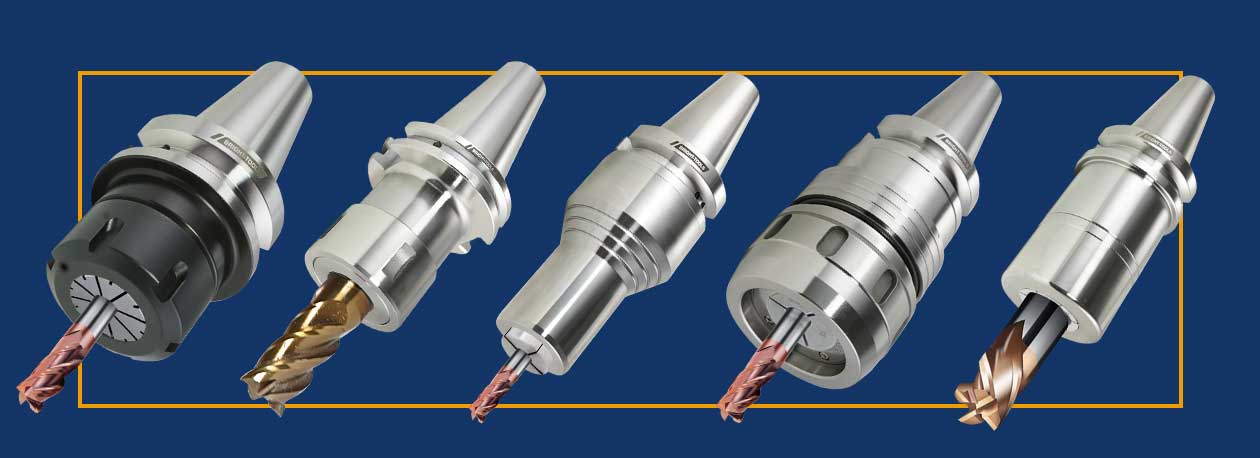

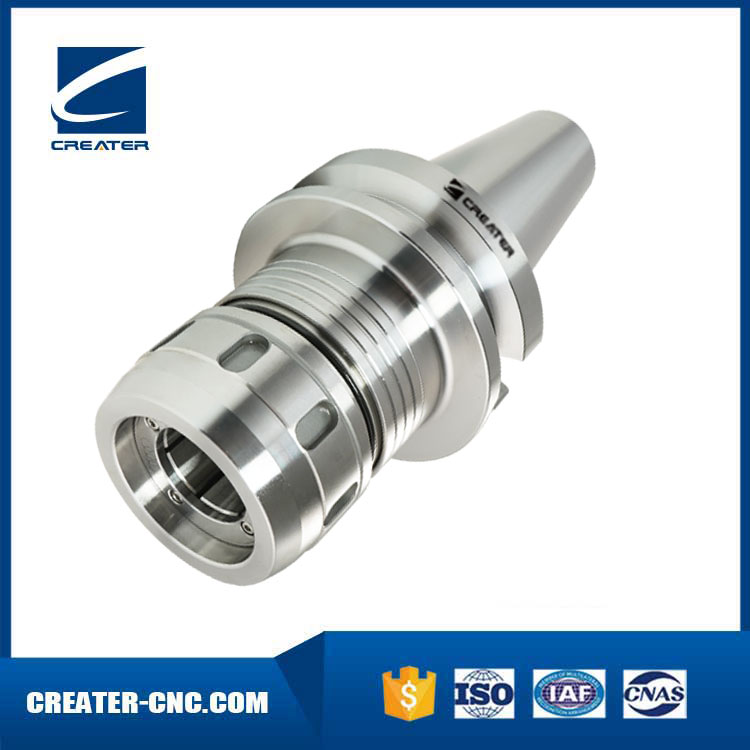

Tool holders for screw-in milling cutters
Thread locking mode，
The clamping force of the cutter is greater and the rigidity is stronger，
The cutting speed is faster and the machining efficiency is greatly improved
* with threaded insert for clamping screw-in milling cutters with threaded studs
* alloyed case-hardening steel with a tensile strength in the core of min. 800 N/mm²
* Tool holders are case hardened HRC 55 - 60
* Hardening depth 0.8 mm ± 0.2 mm

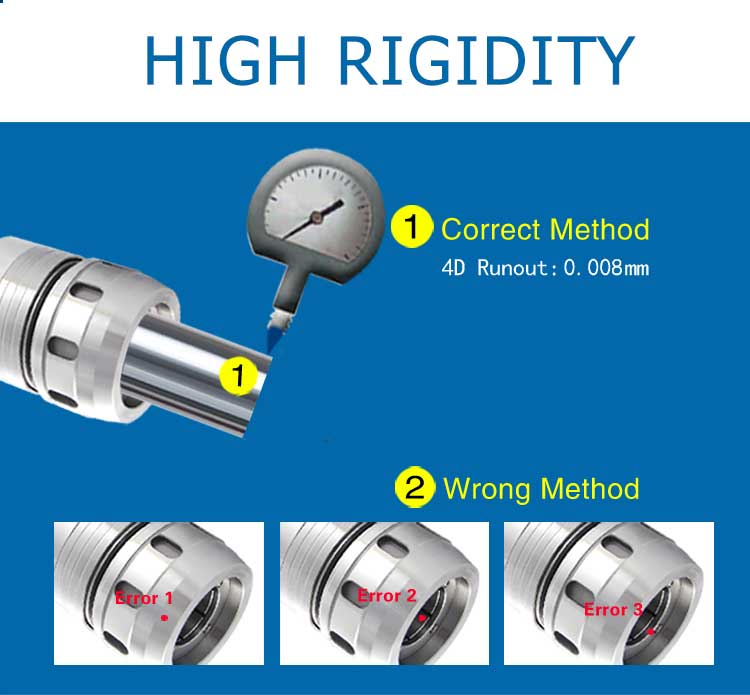

* max. concentricity error ≤ 0,005 mm
* Cutter holders for screw-in milling cutters are precision ground and finely balanced"
"how to install the screw-in head
thoroughly clean the clamp section of the head and the arbor with an air blower or brush before installation
tighten the head at the recommended torque and ensure that there is no gap between the head and arbor cutting tools become extremely hot during cutting,never touch them with bare hands after operation as this may produce risk of injuries or burns.
do not handle the cutting tools with bare hands as this may cause injuries "
screw-in tools can be used for a wide variety of machining applications.the overhang length differs depending the tool and cutting conditions compact size enables high quality machining
